Description

Price

11065

CAP,WHEEL

11065-Y042

$39.84

16126

VALVE,RIM

16126-Y001

$5.69

39184

BRACKET-ASSY

39184-0044

$78.34

41009

TIRE,RR,25X10.00 R12

41009-Y009

$165.61

41080

DISC,BRAKE

41080-Y009

$95.71

43041

CALIPER-ASSY,RR,RH,SILVER

43041-Y009-934

$348.43

43041A

CALIPER-ASSY,RR,LH,SILVER

43041-Y010-934

$348.43

43045

SHAFT-CALIPER

43045-Y002

$12.80

43056

BREATHER-BRAKE

43056-0006

$3.64

43057

CAP-BREATHER

43057-Y002

$2.08

43082

PAD-ASSY-BRAKE,RR

43082-Y009

$38.33

49006

BOOT,CALIPER

49006-Y005

$2.71

49006A

BOOT,RR,OUTSIDE

49006-Y011

$83.11

49006B

BOOT,RR,INSIDE

49006-Y012

$108.51

49030

HUB,RR

49030-Y004

$142.87

49058

WHEEL,RR

49058-Y003

$446.15

59266

JOINT-BALL,RR,RH

59266-Y002

$497.48

59266A

JOINT-BALL,RR,LH

59266-Y003

$460.69

92043

PIN,4X40

92043-Y043

$1.97

92066

PLUG

92066-Y012

$1.69

92093

SEAL,PISTON

92093-Y033

$14.25

92093A

SEAL,PISTON

92093-Y034

$13.46

92145

SPRING,RETURN,47MM

92145-1690

$4.16

92145A

SPRING,PAD

92145-Y035

$5.03

92154

BOLT,10X23

92154-Y178

$7.17

92154A

BOLT

92154-Y183

$8.39

92154B

BOLT,OIL

92154-Y184

$8.39

92161

DAMPER

92161-Y012

$3.99

92200

WASHER

92200-Y015

$2.92

92200A

WASHER,12MM

92200-Y089

$1.68

92200B

WASHER,40X20.5X4.5

92200-Y090

$4.61

92210

NUT

92210-Y088

$6.83

92210A

NUT,FLANGE,20MM

92210-Y099

$14.85

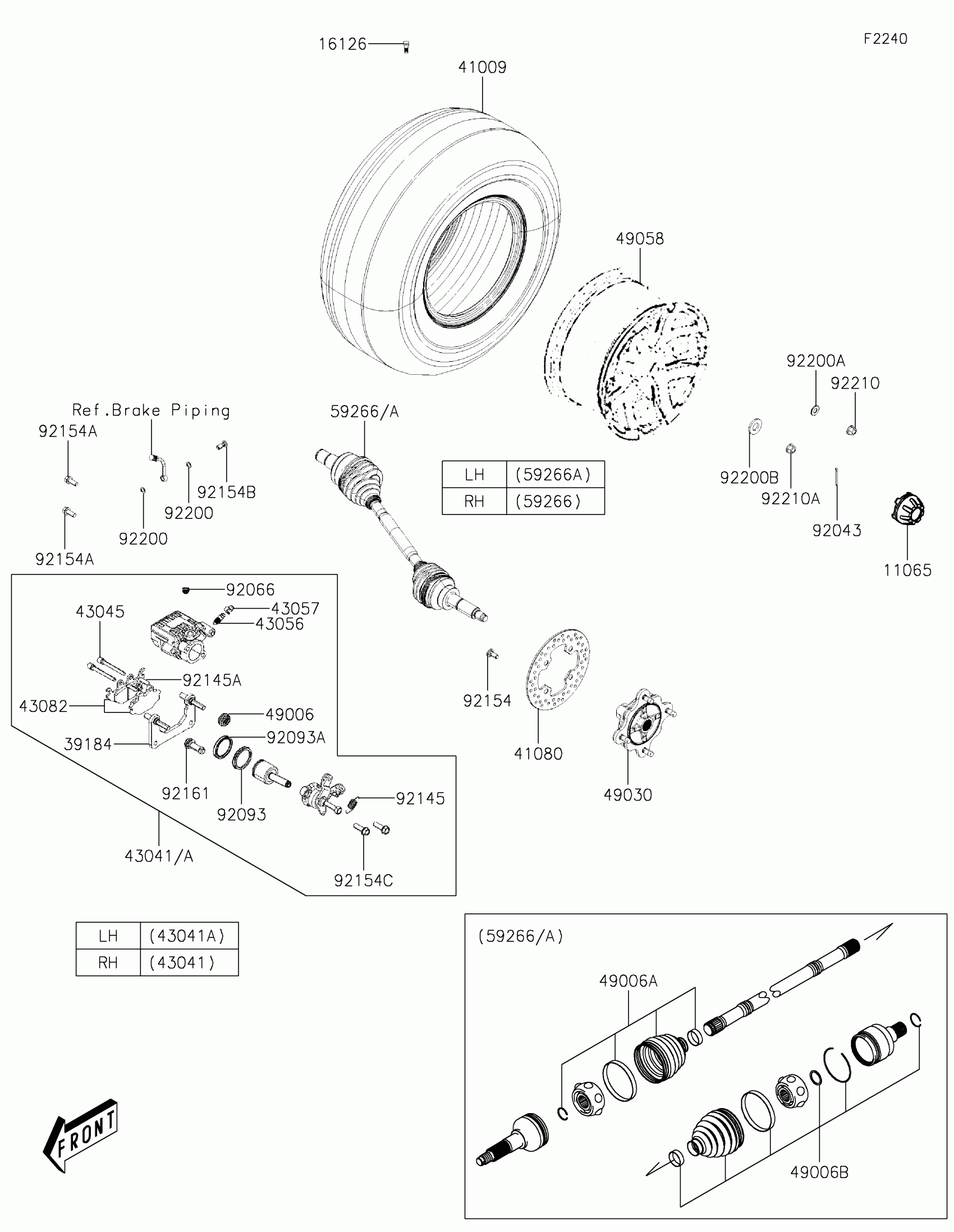

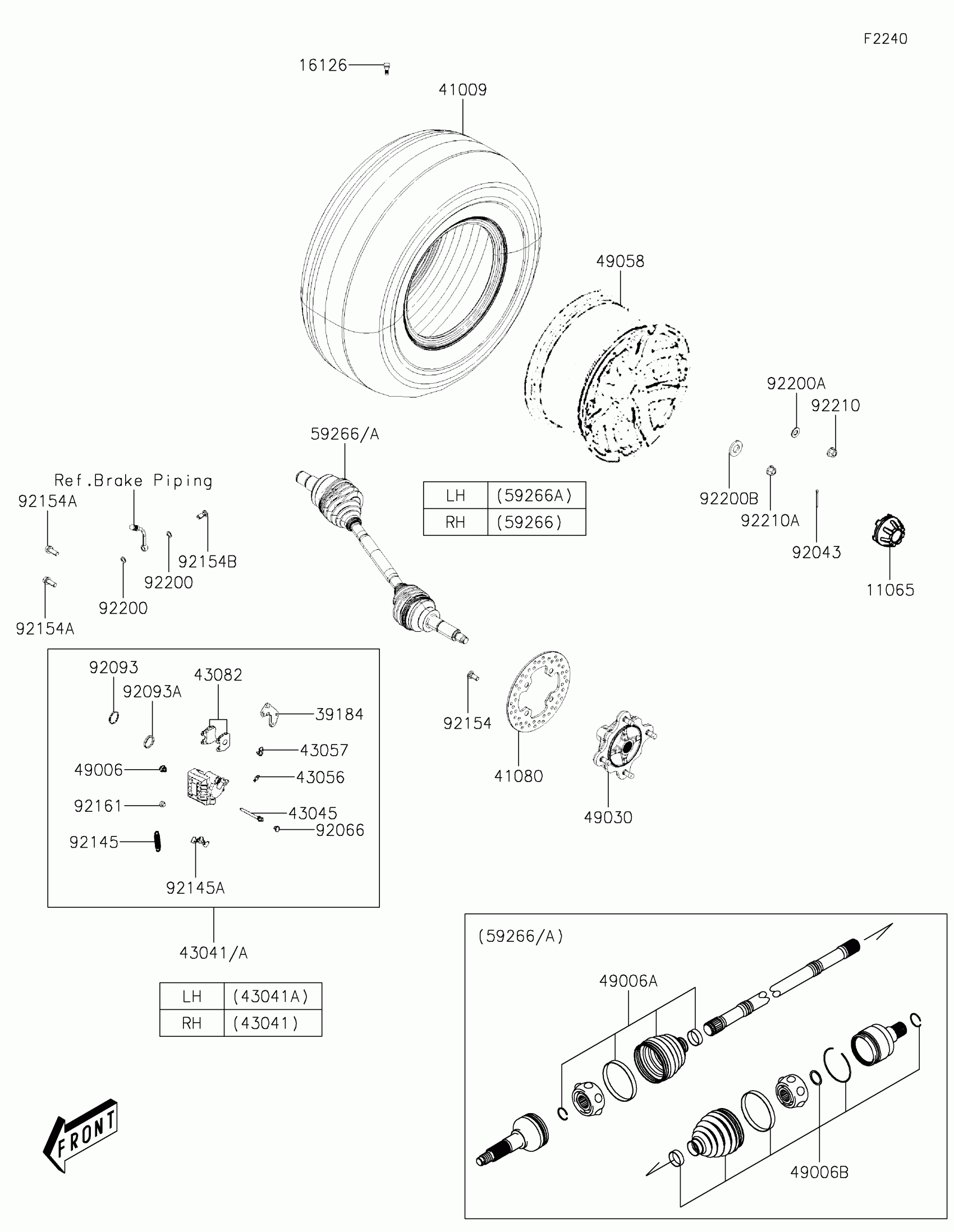

Kawasaki MULE PRO-MX™ EPS LE Rear Hubs/Brakes Diagram
