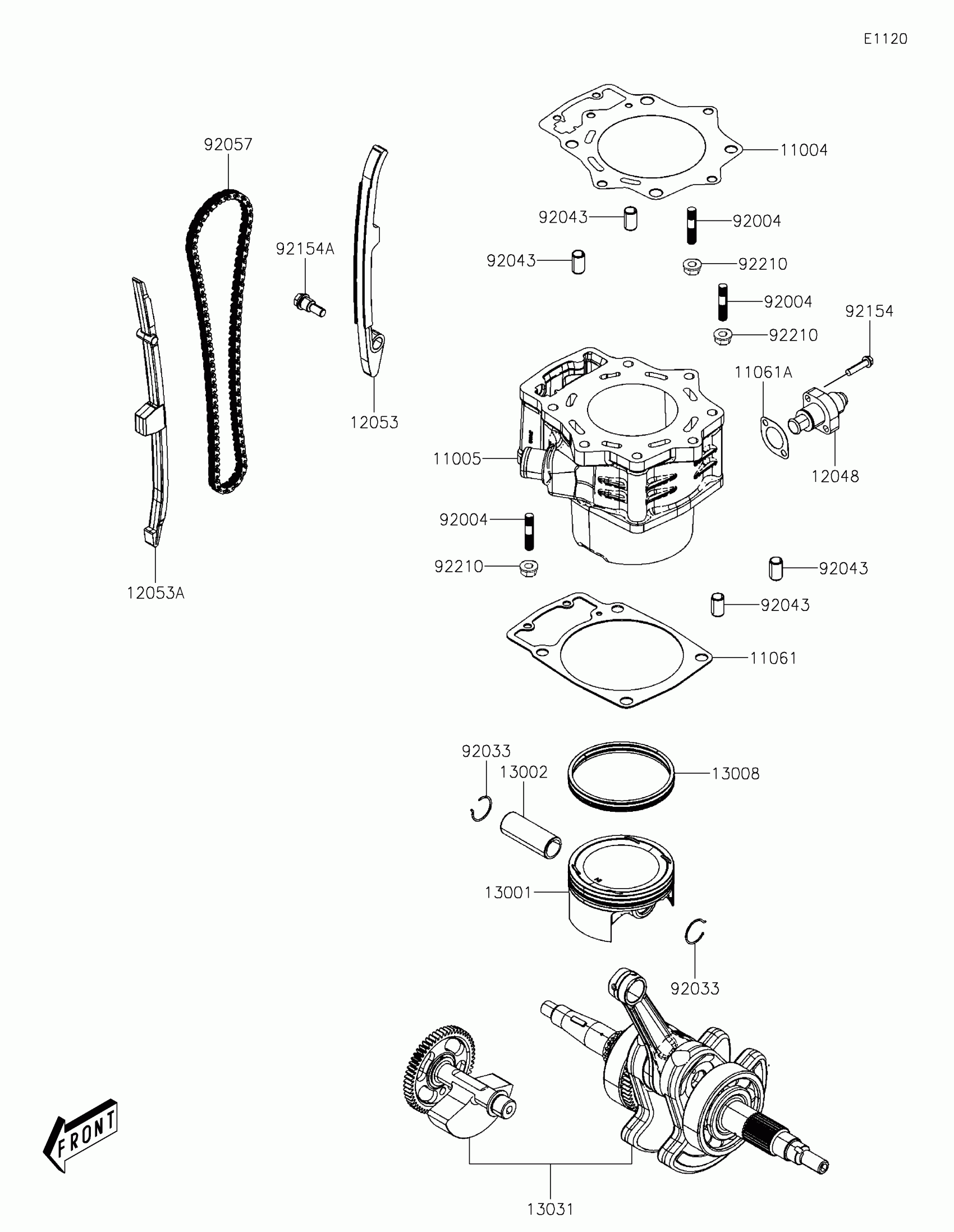

Kawasaki MULE PRO-MX™ EPS Cylinder/Piston(s) Diagram

Description

Price

11004

GASKET-HEAD

11004-Y006

$64.10

11005

CYLINDER-ENGINE

11005-Y006

$426.62

11061

GASKET,CYLINDER BASE

11061-Y062

$49.46

11061A

GASKET,TENSIONER

11061-Y063

$5.53

12048

TENSIONER-ASSY

12048-Y007

$66.54

12053

GUIDE-CHAIN,TENSIONER

12053-Y011

$51.32

12053A

GUIDE-CHAIN,CAM CHAIN

12053-Y012

$45.78

13001

PISTON-ENGINE

13001-Y006

$142.22

13002

PIN-PISTON

13002-Y006

$27.24

13008

RING-SET-PISTON

13008-Y006

$59.77

13031

CRANKSHAFT-COMP

13031-Y006

$867.28

92004

STUD,8X40

92004-Y019

$9.31

92033

RING-SNAP

92033-Y044

$2.49

92043

PIN,12X20

92043-Y027

$2.02

92057

CHAIN,CAM

92057-Y011

$101.83

92154

BOLT,FLANGE,6X25

92154-Y066

$1.98

92154A

BOLT,CAM CHAIN TENSIONER

92154-Y164

$3.92

92210

NUT,8MM

92210-Y028

$0.80
