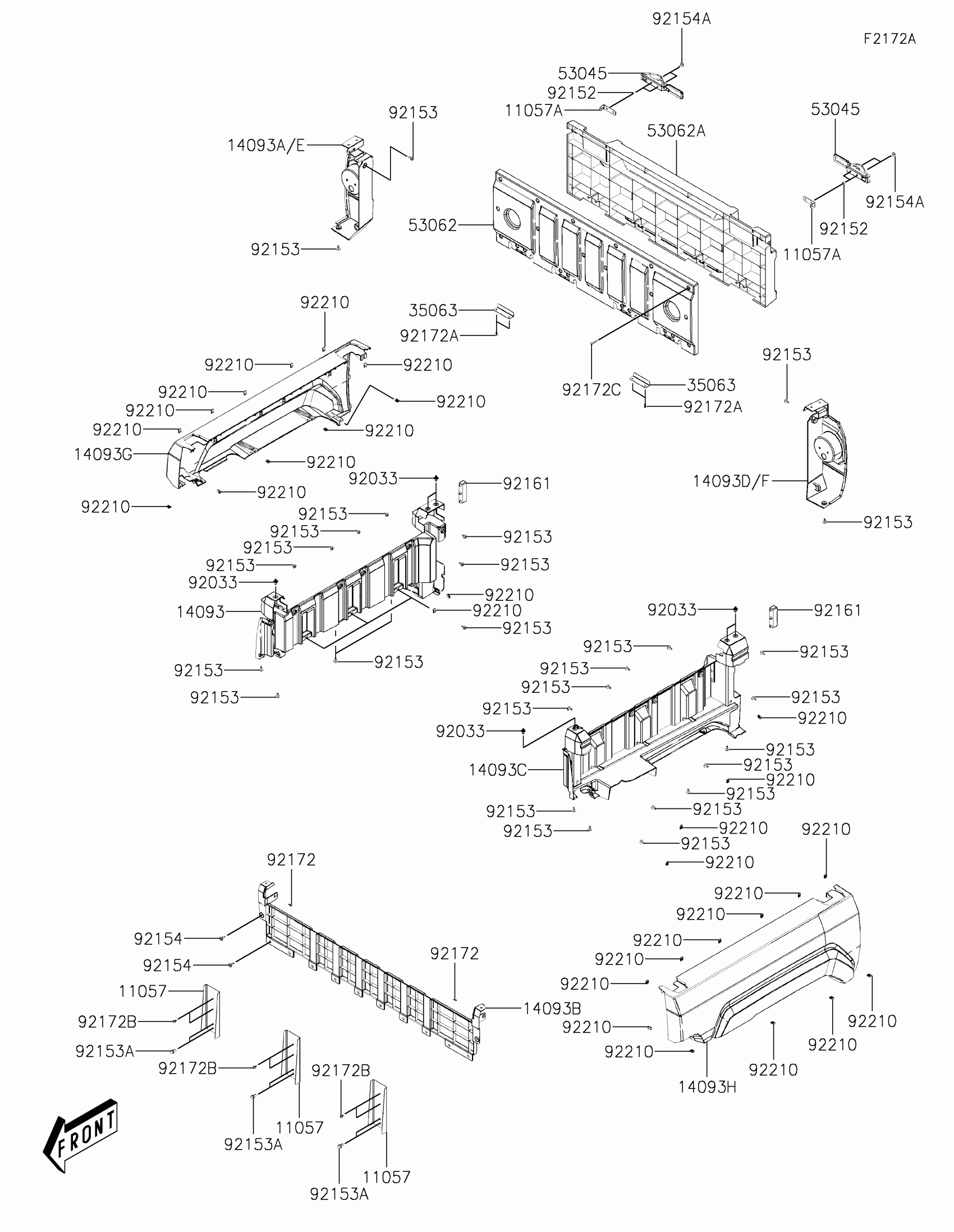

Kawasaki MULE PRO-MX™ EPS CAMO Rear Fender(s)(DLF) Diagram

Description

Price

11057

BRACKET,CARGO BED

11057-Y016

$16.27

11057A

BRACKET,STOPPER

11057-Y018

$13.20

14093

COVER,SIDE,INNER,RH,S.BLACK

14093-Y032-933

$153.86

14093B

COVER,FRONT CARRIER

14093-Y034

$111.79

14093C

COVER,SIDE,INNER,LH,S.BLACK

14093-Y036-933

$153.86

14093G

COVER,SIDE,OUTER,RH,T.T.H.GRN

14093-Y057-975

$473.24

14093H

COVER,SIDE,OUTER,LH,T.T.H.GRN

14093-Y058-975

$473.24

35063

STAY,HINGE

35063-Y044

$5.88

53045

HOOK-ASSY

53045-Y002

$43.97

53062

GATE-TAIL,INNER

53062-Y002

$149.83

53062A

GATE-TAIL,OUTER,S.BLACK

53062-Y003-933

$110.80

92033

RING-SNAP

92033-Y033

$1.97

92152

COLLAR,TAIL GATE

92152-Y075

$4.44

92153

BOLT,5X16

92153-Y013

$0.67

92153A

BOLT,FLANGE,8X16

92153-Y032

$1.14

92154

BOLT,6X18

92154-Y177

$4.28

92154A

BOLT,6X20

92154-Y227

$3.73

92161

DAMPER

92161-Y053

$16.00

92172

SCREW,4X12

92172-Y019

$0.84

92172A

SCREW,TAPPING,5X16

92172-Y020

$1.23

92172B

SCREW,TAPPING,5X12

92172-Y038

$1.28

92172C

SCREW,TAPPING,5X30

92172-Y083

$1.97

92210

NUT,5MM

92210-Y016

$1.06
