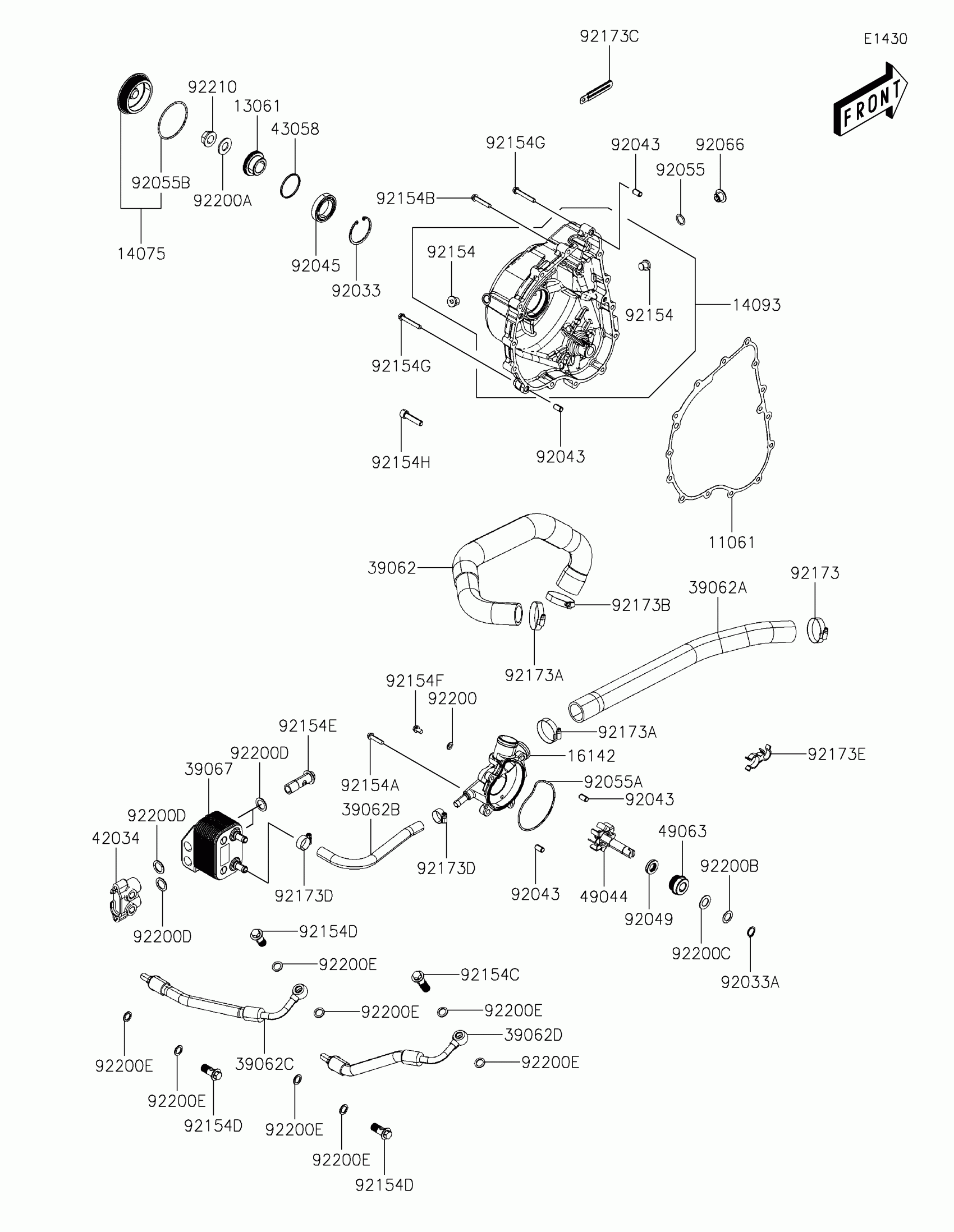

Kawasaki MULE PRO-MX™ EPS CAMO Engine Cover(s) Diagram

#

Description
Price

11061

GASKET,CRANK CASE COVER,RH

11061-Y055

$32.90

13061

BOSS,RACHET

13061-Y005

$48.58

14075

CAP-ASSY

14075-Y006

$27.95

14093

COVER,CRANK CASE,RH

14093-Y002

$149.77

16142

COVER-PUMP,WATER

16142-Y002

$34.31

39062

HOSE-COOLING

39062-Y015

$86.74

39062A

HOSE-COOLING

39062-Y018

$47.43

39062B

HOSE-COOLING

39062-Y021

$24.46

39062C

HOSE-COOLING

39062-Y022

$168.62

39062D

HOSE-COOLING

39062-Y023

$165.95

39067

COOLER-OIL

39067-Y001

$317.52

42034

COUPLING,OIL COOLER

42034-Y002

$23.12

43058

RING,OIL PATH

43058-Y001

$34.89

49044

PUMP-WATER

49044-Y002

$49.95

49063

SEAL-MECHANICAL

49063-Y003

$65.92

92033

RING-SNAP

92033-Y027

$3.07

92033A

RING-SNAP

92033-Y028

$1.47

92043

PIN,8X14

92043-Y012

$1.36

92045

BEARING-BALL,6906

92045-Y044

$46.78

92049

SEAL-OIL,14X24X5

92049-0824

$2.25

92055

RING-O,13.8X2.5

92055-Y023

$1.92

92055A

RING-O,WATER PUMP

92055-Y058

$13.76

92055B

RING-O,17.8X2.4

92055-Y064

$3.02

92066

PLUG,COVER

92066-Y009

$3.81

92154

BOLT,SEALING,12MM

92154-Y009

$5.19

92154A

BOLT,FLANGE,6X25

92154-Y066

$1.71

92154B

BOLT,FLANGE,6X32

92154-Y128

$1.84

92154C

BOLT

92154-Y172

$10.68

92154D

BOLT

92154-Y173

$9.64

92154E

BOLT

92154-Y175

$17.14

92154F

BOLT,FLANGE,6X10

92154-Y208

$1.68

92154G

BOLT,FLANGE,6X40

92154-Y209

$5.98

92154H

BOLT,SOCKET,8X35

92154-Y211

$3.92

92173

CLAMP,28.6MM

92173-1205

$4.34

92173A

CLAMP

92173-1892

$2.59

92173B

CLAMP

92173-1894

$2.25

92173C

CLAMP

92173-Y002

$1.92

92173D

CLAMP

92173-Y068

$7.41

92173E

CLAMP

92173-Y076

$4.97

92200

WASHER,6MM

92200-Y024

$0.93

92200A

WASHER,14X28X2

92200-Y026

$2.08

92200B

WASHER,21X13.8X1.5

92200-Y050

$2.14

92200C

WASHER,14MM

92200-Y051

$1.47

92200D

WASHER

92200-Y074

$2.98

92200E

WASHER

92200-Y076

$4.28

92210

NUT,FLANGE,14MM

92210-Y038

$3.27
