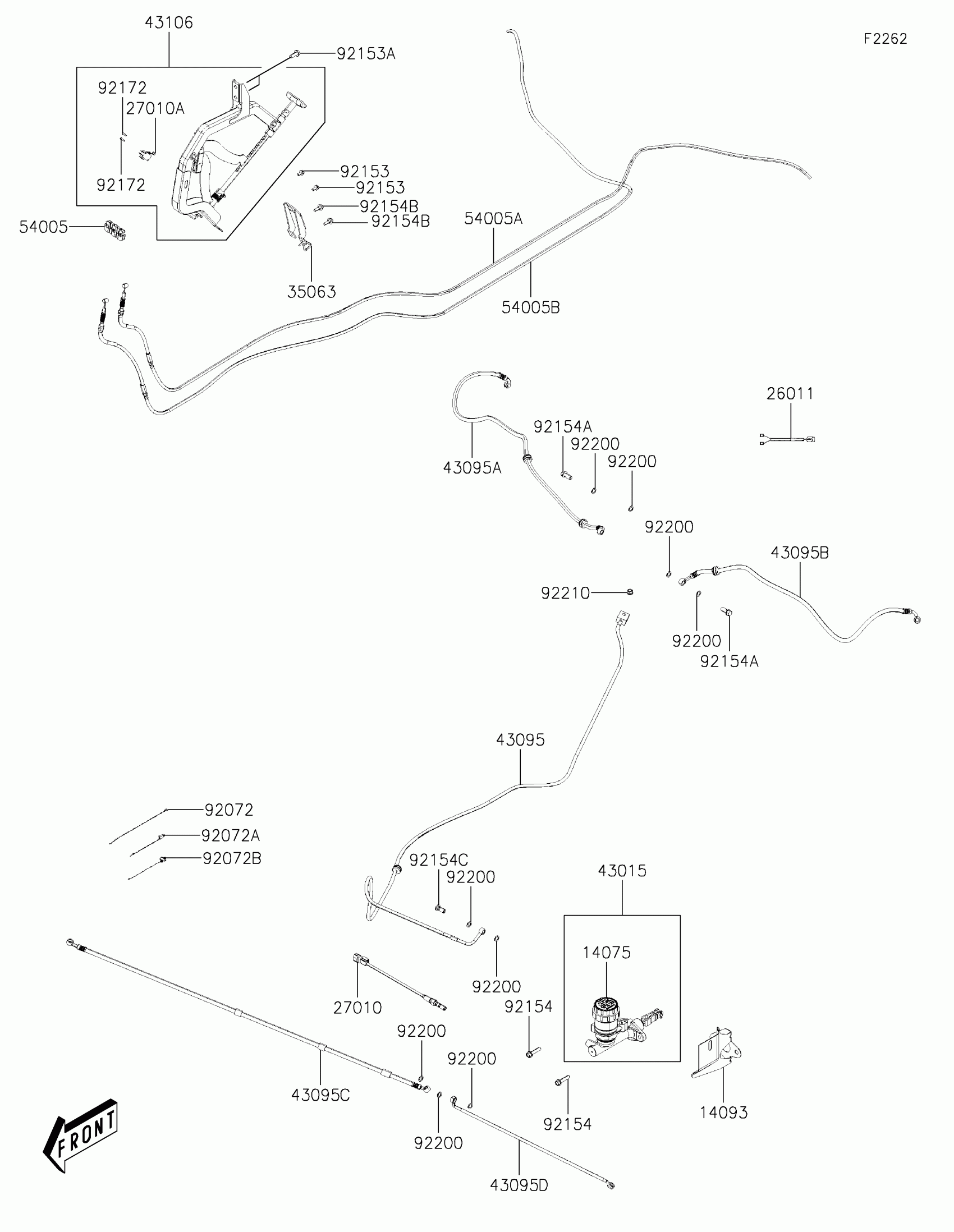

Kawasaki MULE PRO-MX™ Brake Piping Diagram

#

Description
Price

14075

CAP-ASSY

14075-Y004

$39.72

14093

COVER,MASTER CYLINDER

14093-Y008

$18.29

26011

WIRE-LEAD,PARKING SW

26011-Y014

$18.17

27010

SWITCH,BRAKE PRESSURE

27010-Y016

$93.00

27010A

SWITCH

27010-Y017

$10.02

35063

STAY,PARKING BRAKE ASSY

35063-Y042

$39.01

43015

CYLINDER-ASSY-MASTER

43015-Y007

$220.92

43095

HOSE-BRAKE,RR

43095-Y019

$299.81

43095A

HOSE-BRAKE,RR,RH

43095-Y020

$151.19

43095B

HOSE-BRAKE,RR,LH

43095-Y021

$133.30

43095C

HOSE-BRAKE,FR,RH

43095-Y022

$110.04

43095D

HOSE-BRAKE,FR,LH

43095-Y023

$87.83

43106

LEVER-ASSY-PARKING BRAKE

43106-Y001

$221.90

54005

CABLE-BRAKE,PARKING

54005-Y003

$12.78

54005A

CABLE-BRAKE,PARKING,RH

54005-Y004

$65.41

54005B

CABLE-BRAKE,PARKING,LH

54005-Y005

$61.32

92072

BAND

92072-Y011

$1.07

92072A

BAND

92072-Y020

$4.97

92072B

BAND

92072-Y021

$4.97

92153

BOLT,FLANGE,6X12

92153-Y023

$0.78

92153A

BOLT,FLANGE,8X20

92153-Y033

$1.14

92154

BOLT,FLANGE,8X35

92154-Y021

$1.92

92154A

BOLT,10X22

92154-Y114

$3.83

92154B

BOLT,6X20

92154-Y179

$4.97

92154C

BOLT,OIL

92154-Y184

$8.39

92172

SCREW

92172-Y082

$4.97

92200

WASHER

92200-Y015

$2.53

92210

NUT,8MM

92210-Y076

$0.73
