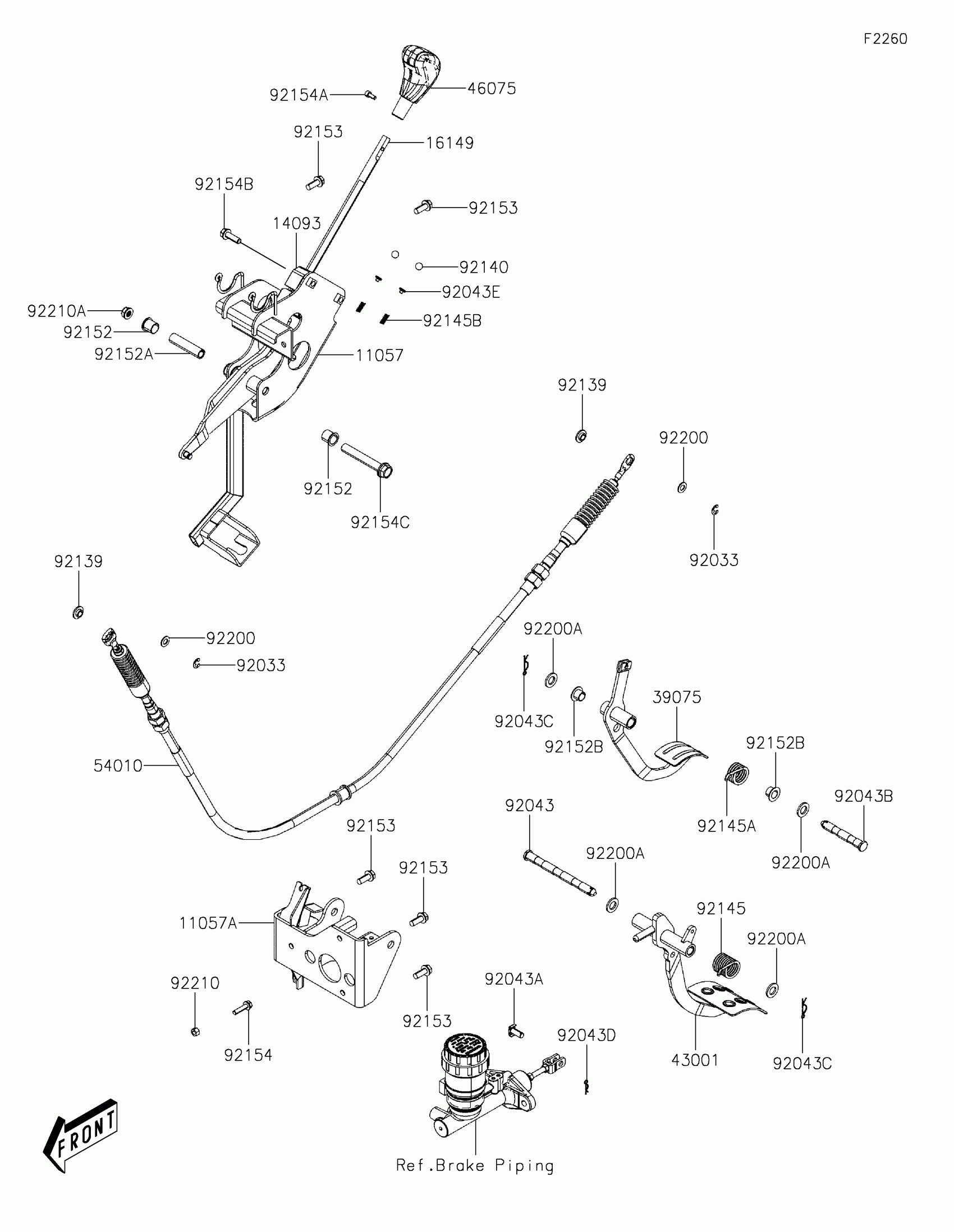

Kawasaki MULE PRO-MX™ Brake Pedal/Throttle Lever Diagram

#

Description
Price

11057

BRACKET,SHIFT

11057-Y003

$98.65

11057A

BRACKET,BRAKE PEDAL

11057-Y008

$106.36

14093

COVER,SHIFT LEVER GUIDE

14093-Y007

$17.63

16149

BAR,SHIFT

16149-Y001

$189.32

39075

LEVER-THROTTLE

39075-Y001

$46.14

43001

LEVER-BRAKE,PEDAL

43001-Y002

$59.04

46075

GRIP

46075-0569

$21.39

54010

CABLE,SHIFT

54010-Y002

$252.54

92033

RING-SNAP

92033-Y041

Unavailable

92043

PIN

92043-Y039

$23.69

92043A

PIN

92043-Y040

$8.88

92043B

PIN

92043-Y041

$20.69

92043C

PIN,LOCK,14MM

92043-Y044

$2.98

92043D

PIN,LOCK,8MM

92043-Y045

$2.98

92043E

PIN

92043-Y047

$4.97

92139

BUSHING,SHIFT

92139-Y013

$8.86

92140

BALL,STEEL 12

92140-Y001

$1.32

92145

SPRING,BRAKE PEDAL RETURN

92145-Y064

$10.68

92145A

SPRING,THROTTLE PEDAL RETURN

92145-Y065

$7.42

92145B

SPRING

92145-Y066

$3.63

92152

COLLAR,SHIFT PIVOT

92152-Y062

$1.37

92152A

COLLAR,SHIFT PIVOT

92152-Y063

$13.85

92152B

COLLAR

92152-Y065

$1.37

92153

BOLT,FLANGE,8X20

92153-Y033

$1.14

92154

BOLT,FLANGE,6X25

92154-Y130

$0.63

92154A

BOLT,SOCKET,5X12

92154-Y176

$2.98

92154B

BOLT,FLANGE,8X25

92154-Y195

$2.98

92154C

BOLT,FLANGE,12X80

92154-Y200

$9.92

92200

WASHER,8MM

92200-Y044

Unavailable

92200A

WASHER,12MM

92200-Y091

$1.68

92210

NUT,HEX,6MM

92210-Y074

$2.14

92210A

NUT,FLANGE,12MM

92210-Y090

$8.58
