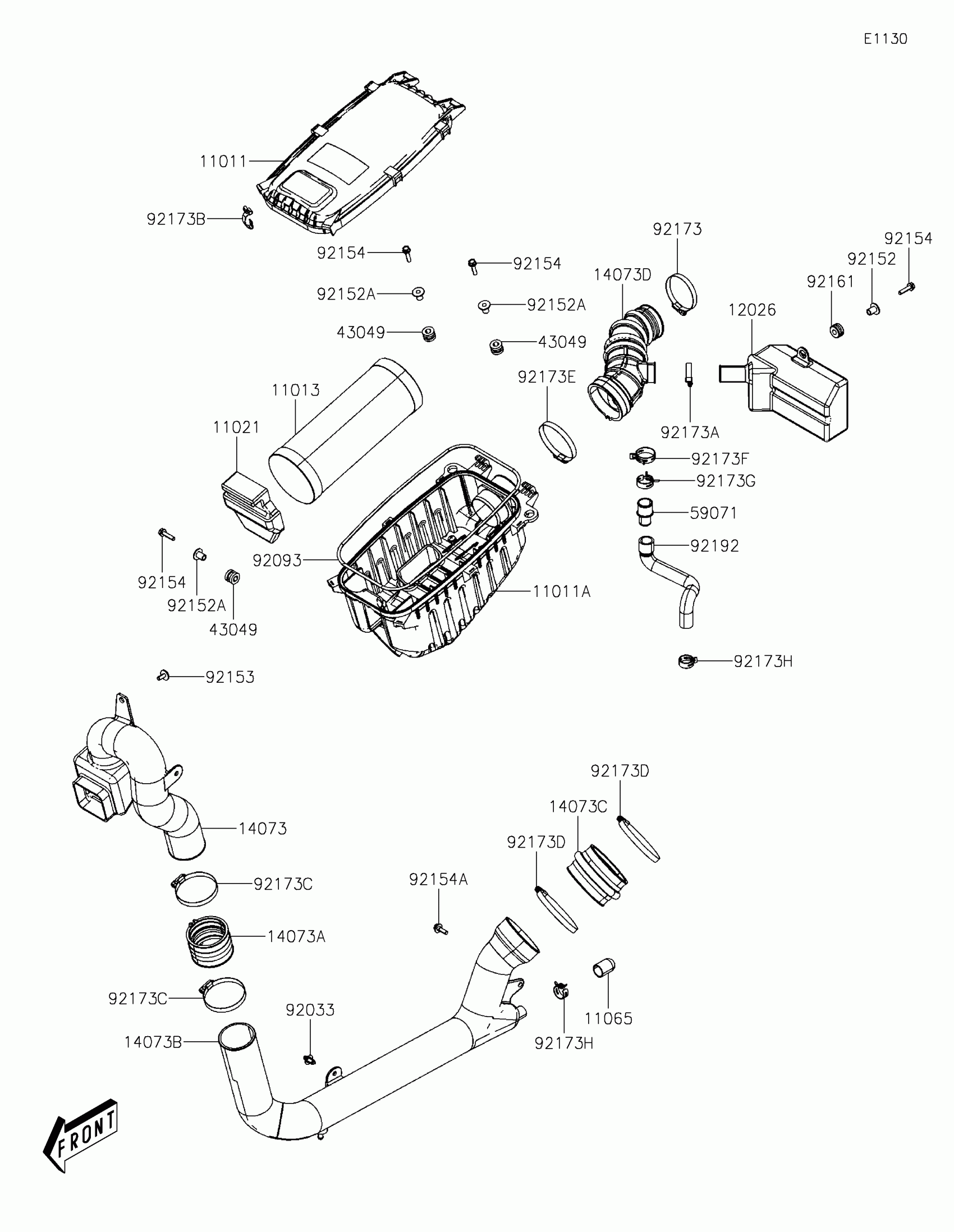

Kawasaki MULE PRO-MX™ Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER,UPP

11011-Y012

$52.03

11011A

CASE-AIR FILTER,LWR

11011-Y013

$134.98

11013

ELEMENT-AIR FILTER

11013-Y005

$87.45

11021

CASE-ASSY,AIR FILTER

11021-Y002

$13.88

11065

CAP,DRAIN

11065-Y036

$1.15

12026

CHAMBER,NOISE SILENCE

12026-Y002

$78.29

14073

DUCT,INTAKE

14073-Y018

$68.18

14073A

DUCT,JOINT

14073-Y019

$19.56

14073B

DUCT,INTAKE

14073-Y020

$70.79

14073C

DUCT,JOINT

14073-Y021

$26.71

14073D

DUCT,CHAMBER

14073-Y022

$87.83

43049

PACKING

43049-Y006

$15.31

59071

JOINT

59071-Y009

$6.97

92033

RING-SNAP

92033-Y033

$1.97

92093

SEAL,AIR FILTER

92093-Y031

$9.64

92152

COLLAR

92152-Y013

$0.87

92152A

COLLAR

92152-Y056

$18.29

92153

BOLT,6X16

92153-Y018

$1.00

92154

BOLT,FLANGE,6X25

92154-Y130

$0.63

92154A

BOLT,FLANGE,6MM

92154-Y180

$4.64

92161

DAMPER

92161-Y046

$2.44

92173

CLAMP

92173-Y030

$9.27

92173A

CLAMP

92173-Y031

$4.83

92173B

CLAMP

92173-Y063

$3.55

92173C

CLAMP

92173-Y065

$6.12

92173D

CLAMP

92173-Y066

$13.22

92173E

CLAMP

92173-Y074

$8.39

92173F

CLAMP

92173-Y079

$9.41

92173G

CLAMP

92173-Y080

$8.39

92173H

CLAMP

92173-Y082

$8.39

92192

TUBE,BREATHER

92192-Y068

$16.27
