2016 Kawasaki Mule PRO-FXT™ Rear Brake Diagram

← All diagrams

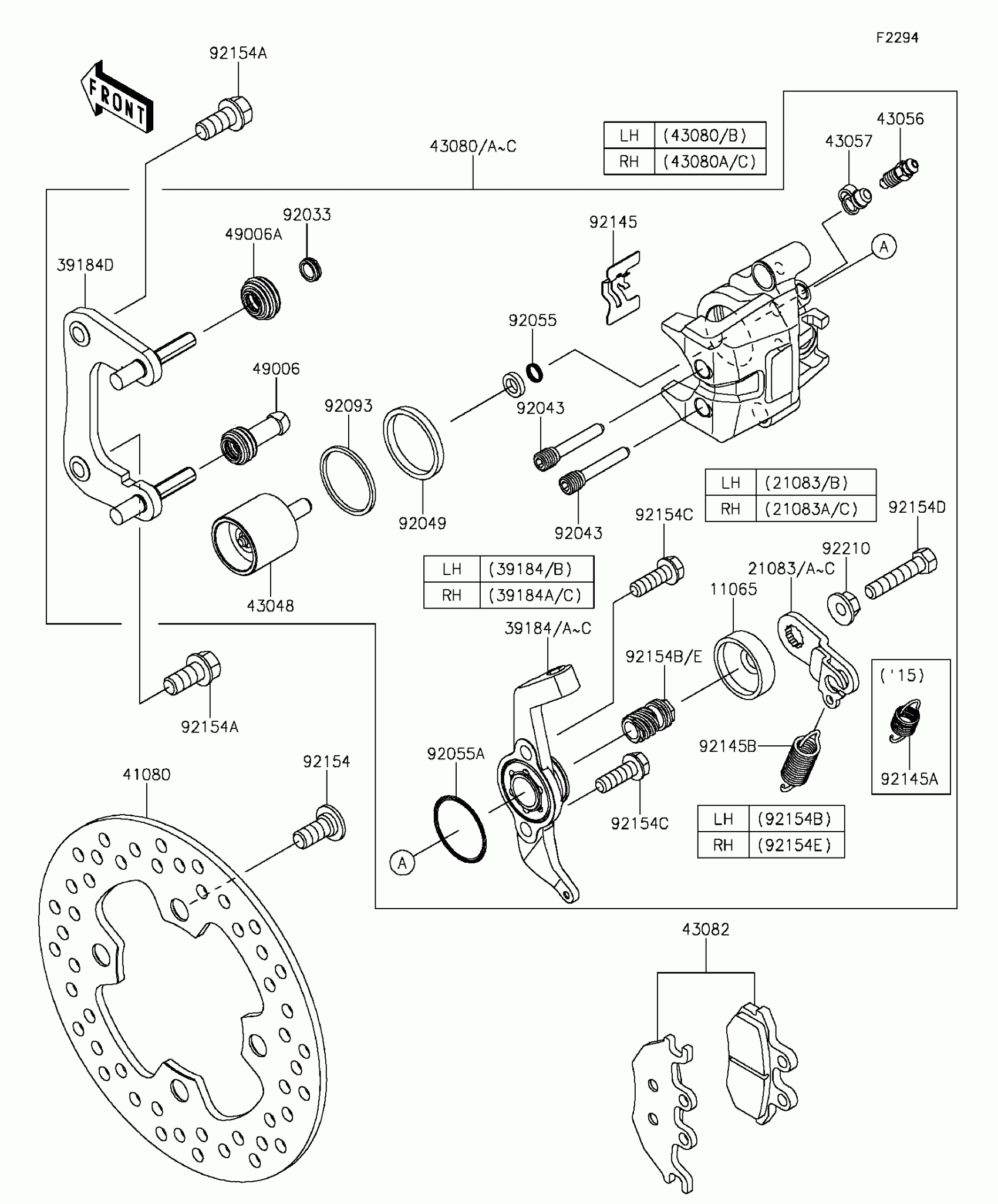

Find the part on the Rear Brake diagram for your 2016 Kawasaki Mule PRO-FXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-FXT™ Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0870

1
Out of stock

21083B

ARM,BRAKE,RR,LH

21083-0728

1
Out of stock

21083C

ARM,BRAKE,RR,RH

21083-0729

1
Out of stock

39184B

BRACKET-ASSY,LH

39184-0042

1

$83.32

In stock

39184C

BRACKET-ASSY,RH

39184-0043

1

$83.32

In stock

39184D

BRACKET-ASSY

39184-0044

1

$78.34

In stock

41080

DISC

41080-0608

1
Out of stock

43048

PISTON-CALIPER

43048-0027

1
Out of stock

43056

BREATHER-BRAKE

43056-0010

1
Out of stock

43057

CAP-BREATHER

43057-0552

1
Out of stock

43080B

CALIPER-SUB-ASSY,RR,LH

43080-0163

1
Out of stock

43080C

CALIPER-SUB-ASSY,RR,RH

43080-0164

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0140

1
Out of stock

49006

BOOT

49006-0591

1
Out of stock

49006A

BOOT

49006-0592

1
Out of stock

92033

RING-SNAP

92033-0749

1
Out of stock

92043

PIN

92043-0818

1
Out of stock

92049

SEAL-OIL

92049-0765

1
Out of stock

92055

RING-O

92055-0793

1
Out of stock

92055A

RING-O

92055-0795

1
Out of stock

92093

SEAL

92093-0613

1
Out of stock

92145

SPRING

92145-1619

1
Out of stock

92145B

SPRING,RETURN,47MM

92145-1690

1
Out of stock

92154

BOLT,SOCKET,10X23

92154-0713

1
Out of stock

92154A

BOLT,FLANGED,10X22

92154-1327

1
Out of stock

92154B

BOLT,LH

92154-1479

1
Out of stock

92154C

BOLT

92154-1480

1
Out of stock

92154D

BOLT

92154-1481

1
Out of stock

92154E

BOLT,RH

92154-1503

1
Out of stock

92210

NUT

92210-0912

1
Out of stock
