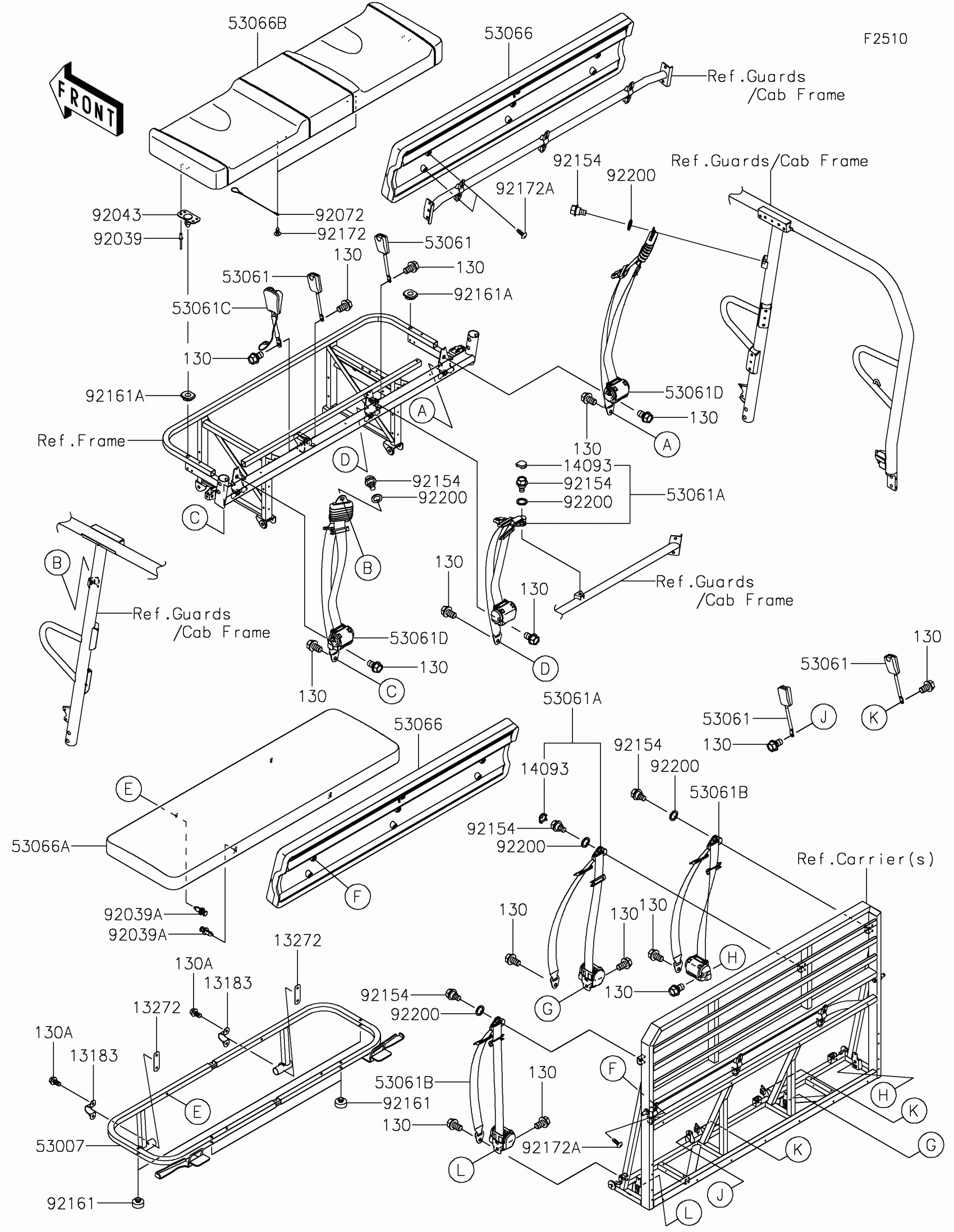

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Seat Diagram

Description

Price

13183

PLATE,SEAT

13183-1400

$5.98

13272

PLATE

13272-1699

$1.56

14093

COVER,D-RING

14093-1037

$3.80

53007

FRAME-SEAT

53007-0364

$159.66

53061

BELT-SEAT,BUCKLE

53061-0039

$28.65

53061A

BELT-SEAT,MIDDLE

53061-0341

$163.87

53061B

BELT-SEAT,RR,LH&RH

53061-0348

$152.89

53061C

BELT-SEAT,BUCKLE,SW.

53061-0364

$50.22

53061D

BELT-SEAT,FR,LH&RH

53061-0366

$168.60

53066

SEAT-ASSY,BACK

53066-0813

$731.54

53066A

SEAT-ASSY,BOTTOM

53066-0815

$876.04

53066B

SEAT-ASSY,BOTTOM

53066-0816

$1,257.68

92039

RIVET

92039-0747

$2.05

92039A

RIVET

92039-0776

$0.80

92043

92043-0859

$1.61

92072

BAND

92072-0769

$3.41

92154

BOLT,FLANGED,10X19.5

92154-1959

$5.66

92161

DAMPER

92161-1065

$2.97

92161A

DAMPER,10.5X30X8.2

92161-1784

$0.86

92172

SCREW,6X16

92172-0284

$0.94

92172A

SCREW,TAPPING,6X20

92172-0488

$2.44

92200

WASHER,16X22X2

92200-1798

$1.20

130

BOLT-FLANGED,12X20

130BA1220

$2.97

130A

BOLT-FLANGED,8X16

130CA0816

$2.05
