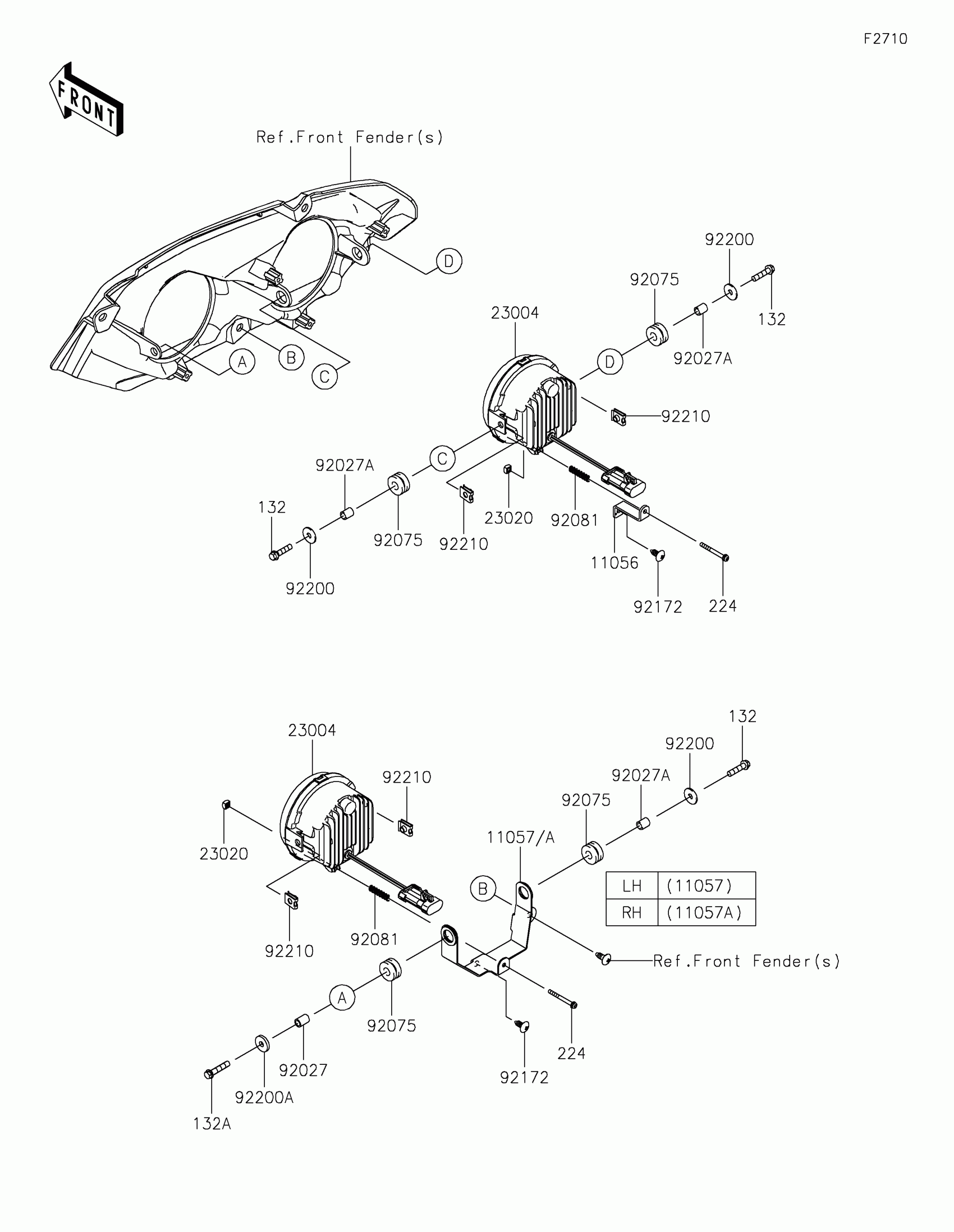

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Headlight(s) Diagram

Description

Price

11056

BRACKET

11056-2933

$3.41

11057

BRACKET,LED HL,LH

11057-0755

$16.71

11057A

BRACKET,LED HL,RH

11057-0783

$16.71

23004

LAMP-HEAD

23004-0372

$146.36

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.69

92027

COLLAR,6.8X10X14.5

92027-156

$3.97

92027A

COLLAR,6.8X10X12

92027-162

$5.21

92075

DAMPER,10X24X12

92075-1690

$3.97

92081

SPRING,FOCUS ADJUST

92081-1896

$4.16

92172

SCREW,6X16

92172-0284

$0.94

92200

WASHER,6.5X20X1.6

92200-0283

$1.25

92200A

WASHER,6.5X20X3.2

92200-0359

$1.81

92210

NUT

92210-1125

$3.78

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.17

224

SCREW-PAN-WP-CROS

224AA0440

$1.47
