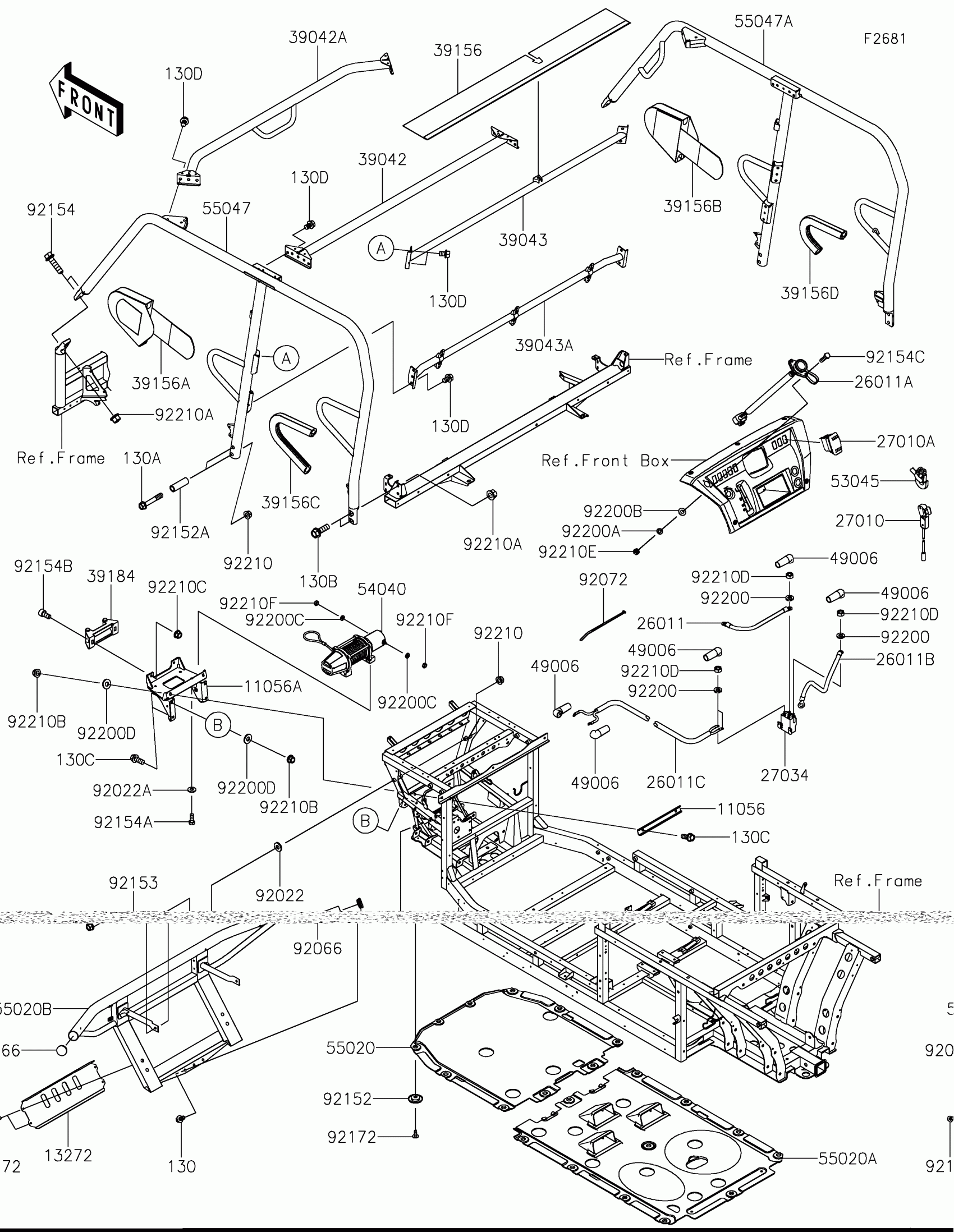

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Guards/Cab Frame Diagram

#

Description
Price

11056

BRACKET

11056-4074

$12.34

11056A

BRACKET,WINCH

11056-7783

$117.93

13272

PLATE,FR GUARD,LOW

13272-2306

$61.42

26011

WIRE-LEAD,RED

26011-0916

$14.88

26011A

WIRE-LEAD,REMOTE SWITCH

26011-0935

$119.51

26011B

WIRE-LEAD,BLACK

26011-0989

$18.37

26011C

WIRE-LEAD,BLUE/YELLOW

26011-0990

$101.41

27010

SWITCH,REMOTE

27010-0820

$129.74

27010A

SWITCH,CARLING

27010-0821

$75.35

27034

RELAY

27034-0008

$120.40

39042

CROSSMEMBER,RR,T.BLACK

39042-0015-388

$113.42

39042A

CROSSMEMBER,FR,T.BLACK

39042-0016-388

$116.99

39043

CROSSMEMBER-COMP,B-P.,UPP,BLK

39043-0016-388

$152.36

39043A

CROSSMEMBER-COMP,B-P.,LWR,BLK

39043-0017-388

$113.42

39156

PAD,REAR GRAB BAR

39156-2740

$220.91

39156A

PAD,SHOULDER GUARD,FR,LH

39156-2741

$362.27

39156B

PAD,SHOULDER GUARD,FR,RH

39156-2742

$362.27

39156C

PAD,SHOULDER GUARD,RR,LH

39156-2743

$156.12

39156D

PAD,SHOULDER GUARD,RR,RH

39156-2744

$149.51

39184

BRACKET-ASSY,FAIRLEAD

39184-0740

$61.78

49006

BOOT

49006-0601

$2.15

53045

HOOK-ASSY

53045-0028

$23.05

54040

WINCH

54040-0008

$374.44

55020

GUARD,SKID PLATE

55020-0934

$71.58

55020A

GUARD,SKID PLATE

55020-0935

$94.91

55020B

GUARD,FR,T.BLACK

55020-2158-388

$258.50

55047

BAR-COMP,LH,T.BLACK

55047-0361-388

$338.90

55047A

BAR-COMP,RH,T.BLACK

55047-0362-388

$338.90

92022

WASHER,10X22X3

92022-1365

$4.85

92022A

WASHER,8.2X19X2

92022-1533

$4.85

92066

PLUG

92066-0769

$2.04

92072

BAND,L=292.1

92072-3509

Unavailable

92152

COLLAR

92152-0784

$1.54

92152A

COLLAR,10.5X16X47

92152-1800

$4.69

92153

BOLT,FLANGED,10X75

92153-1384

$5.91

92154

BOLT,FLANGED,12X45

92154-1420

$2.72

92154A

BOLT,8X20

92154-1876

$2.19

92154B

BOLT,SOCKET,10X20

92154-1877

$3.12

92154C

BOLT,5X20

92154-1879

$2.36

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92200

WASHER,6 LOCK

92200-1776

$0.97

92200A

WASHER,5 LOCK

92200-1777

$0.97

92200B

WASHER

92200-1778

$0.88

92200C

WASHER,6.4X12X1.8

92200-2358

$0.54

92200D

WASHER,10.2X23X2.5

92200-7506

$3.51

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,12MM

92210-0603

$6.85

92210B

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

92210C

NUT,LOCK,M10

92210-1432

$1.34

92210D

NUT,M6X1.00

92210-1434

$1.90

92210E

NUT,M5X0.80

92210-1435

$1.05

92210F

NUT,6MM

92210-1792

$2.41

130

BOLT-FLANGED,8X16

130BA0816

$0.89

130A

BOLT-FLANGED,10X60

130BA1060

$3.19

130B

BOLT-FLANGED,12X35

130BA1235

$3.19

130C

BOLT-FLANGED,10X25

130BB1025

$4.63

130D

BOLT-FLANGED,10X14

130CA1014

$2.31
