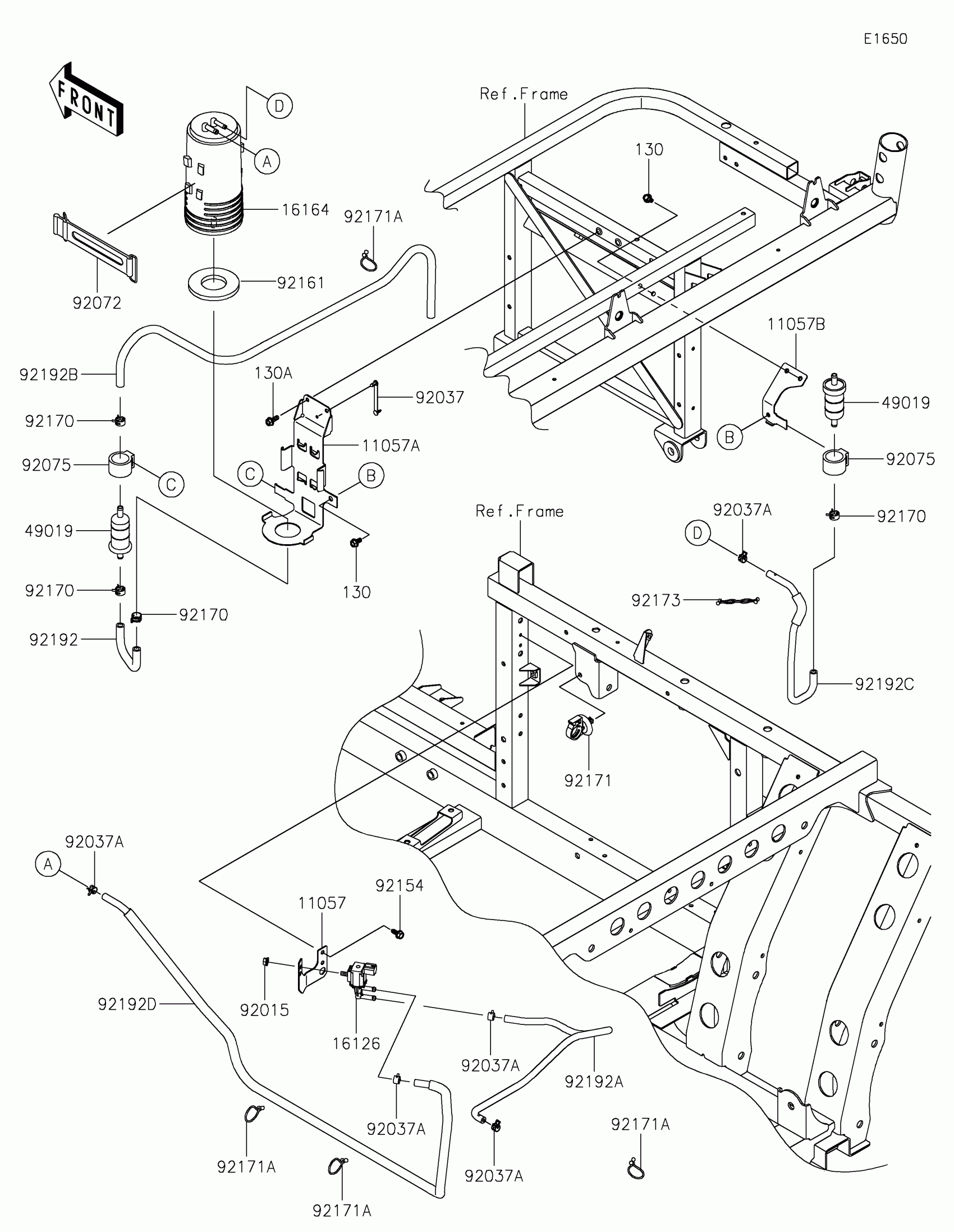

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,VALVE

11057-0763

$3.29

11057A

BRACKET,CANISTER

11057-2694

$55.44

11057B

BRACKET

11057-2695

$13.73

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0016

$209.81

49019

FILTER-FUEL

49019-0032

$18.12

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92037A

CLAMP

92037-2113

$0.97

92072

BAND,L=168

92072-1306

$10.44

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92154

BOLT,6X15.6

92154-1250

$0.83

92161

DAMPER

92161-1843

$4.51

92170

CLAMP

92170-2082

$0.71

92171

CLAMP

92171-0453

$3.12

92171A

CLAMP

92171-1185

$2.03

92173

CLAMP

92173-2284

$2.29

92192

TUBE,FILTER-CANISTER

92192-1665

$3.37

92192A

TUBE,VALVE-INTAKE MANIFOLD

92192-1667

$66.48

92192B

TUBE,AIR-FUEL FILTER

92192-1900

$10.36

92192C

TUBE,FILTER-CANISTER

92192-2252

$46.72

92192D

TUBE,CANISTER-VALVE

92192-2286

$114.44

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X16

130BA0616

$0.97
