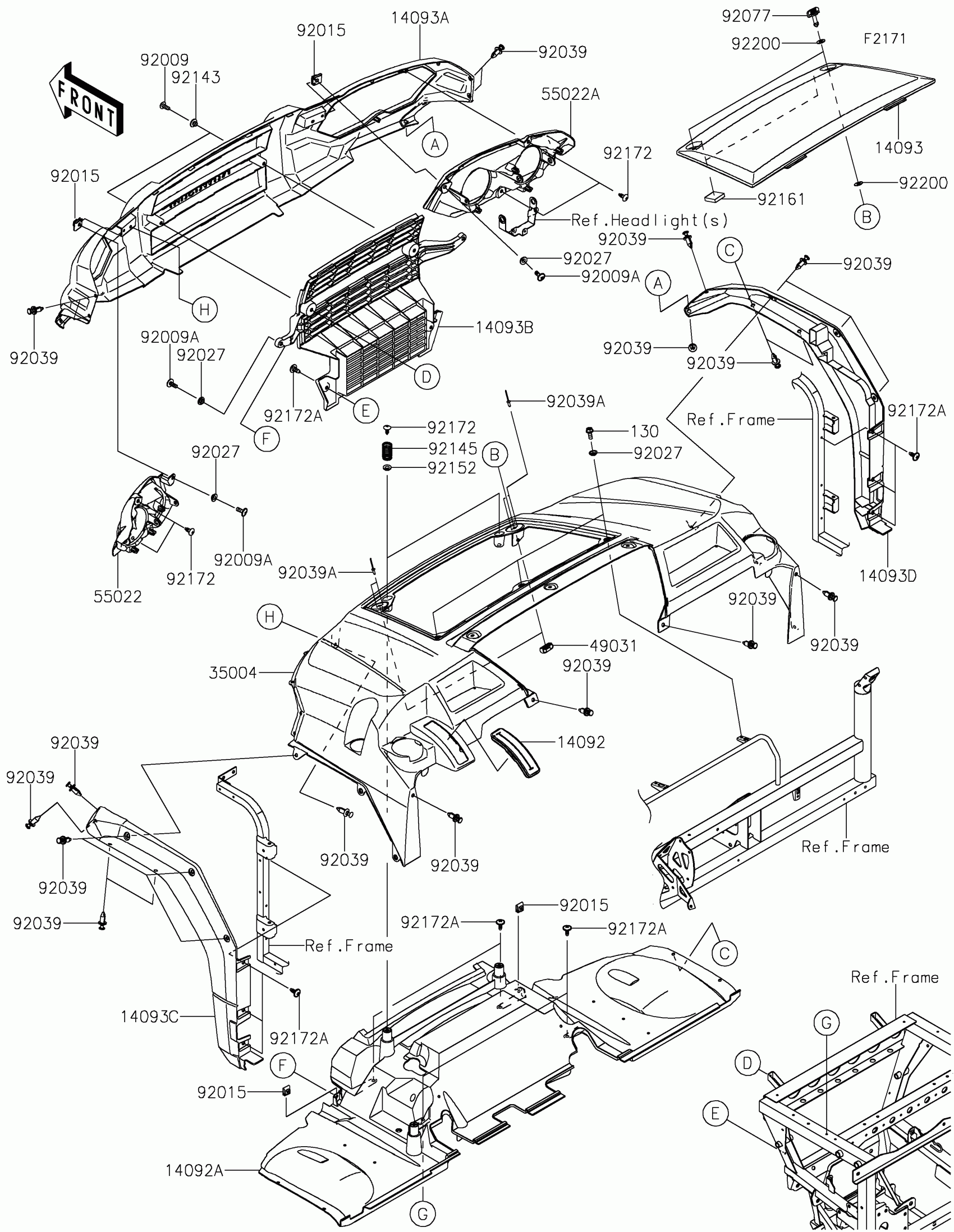

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Front Fender(s) Diagram

Description

Price

14092

COVER,CENTER CONSOLE,TOP

14092-0791

$6.58

14092A

COVER,TOP,FR INNER

14092-1194

$166.92

14093

COVER,OPEN,M.R.BRONZE

14093-0019-57X

$242.50

14093A

COVER,FR GRILLE,M.R.BRONZE

14093-0583-57X

$139.73

14093B

COVER,RADIATOR

14093-0584

$63.90

14093C

COVER,SIDE,LH

14093-0596

$72.93

14093D

COVER,SIDE,RH

14093-0597

$72.93

35004

FENDER-FRONT,M.R.BRONZE

35004-0337-57X

$418.14

49031

LATCH

49031-0008

$1.32

55022

COVER-HEAD LAMP,LH

55022-0322

$15.51

55022A

COVER-HEAD LAMP,RH

55022-0323

$15.51

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92027

COLLAR,L=4.6

92027-1168

$3.81

92039

RIVET

92039-0776

$0.80

92039A

RIVET,3.2X9.5

92039-0785

$1.74

92077

KNOB

92077-0030

$2.11

92143

COLLAR

92143-1057

$3.81

92145

SPRING,17X65

92145-1727

$1.76

92152

COLLAR

92152-0140

$4.63

92161

DAMPER,40X40X10

92161-1861

$1.77

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,6X16

92172-0711

$2.11

92200

WASHER

92200-0503

$1.81

130

BOLT-FLANGED,6X16

130CA0616

$1.32
