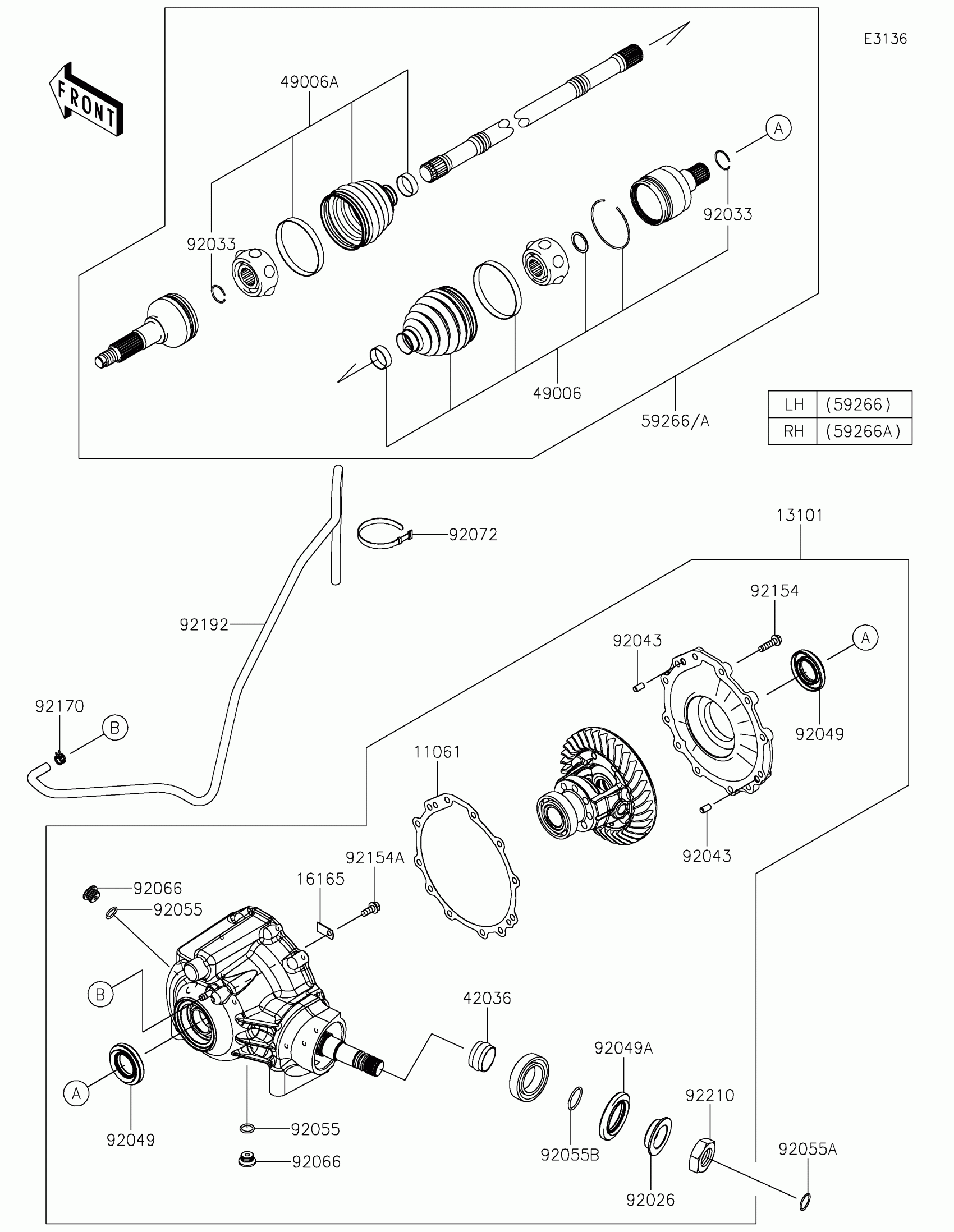

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Drive Shaft-Front Diagram

Description

Price

11061

GASKET,CASE

11061-1413

$19.75

13101

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0687

$1,605.05

16165

SEPARATOR

16165-0019

$5.51

42036

SLEEVE

42036-0873

$18.41

49006

BOOT,INSIDE

49006-0641

Unavailable

49006A

BOOT,OUTSIDE

49006-0642

$82.30

59266

JOINT-BALL,FR,LH

59266-0757

$725.14

59266A

JOINT-BALL,FR,RH

59266-0758

$725.14

92026

SPACER

92026-0916

$40.74

92033

RING-SNAP

92033-0849

$20.71

92043

PIN,DOWEL,8X14

92043-1750

$2.03

92049

SEAL-OIL,TC9 35X62X9

92049-0856

$15.83

92049A

SEAL-OIL,TC7 45X72X7

92049-0857

$16.66

92055

RING-O

92055-0862

$1.95

92055A

RING-O,22.1X1.9

92055-1617

$1.89

92055B

RING-O

92055-1719

$3.83

92066

PLUG,M18

92066-0982

$12.31

92072

BAND,L=186

92072-056

$3.81

92154

BOLT,FLANGED,8X30

92154-4354

$7.32

92154A

BOLT,FLANGED,8X16

92154-4355

$3.36

92170

CLAMP

92170-2082

$0.71

92192

TUBE,BREATHER

92192-1341

$11.15

92210

NUT,M30

92210-1884

$23.61
