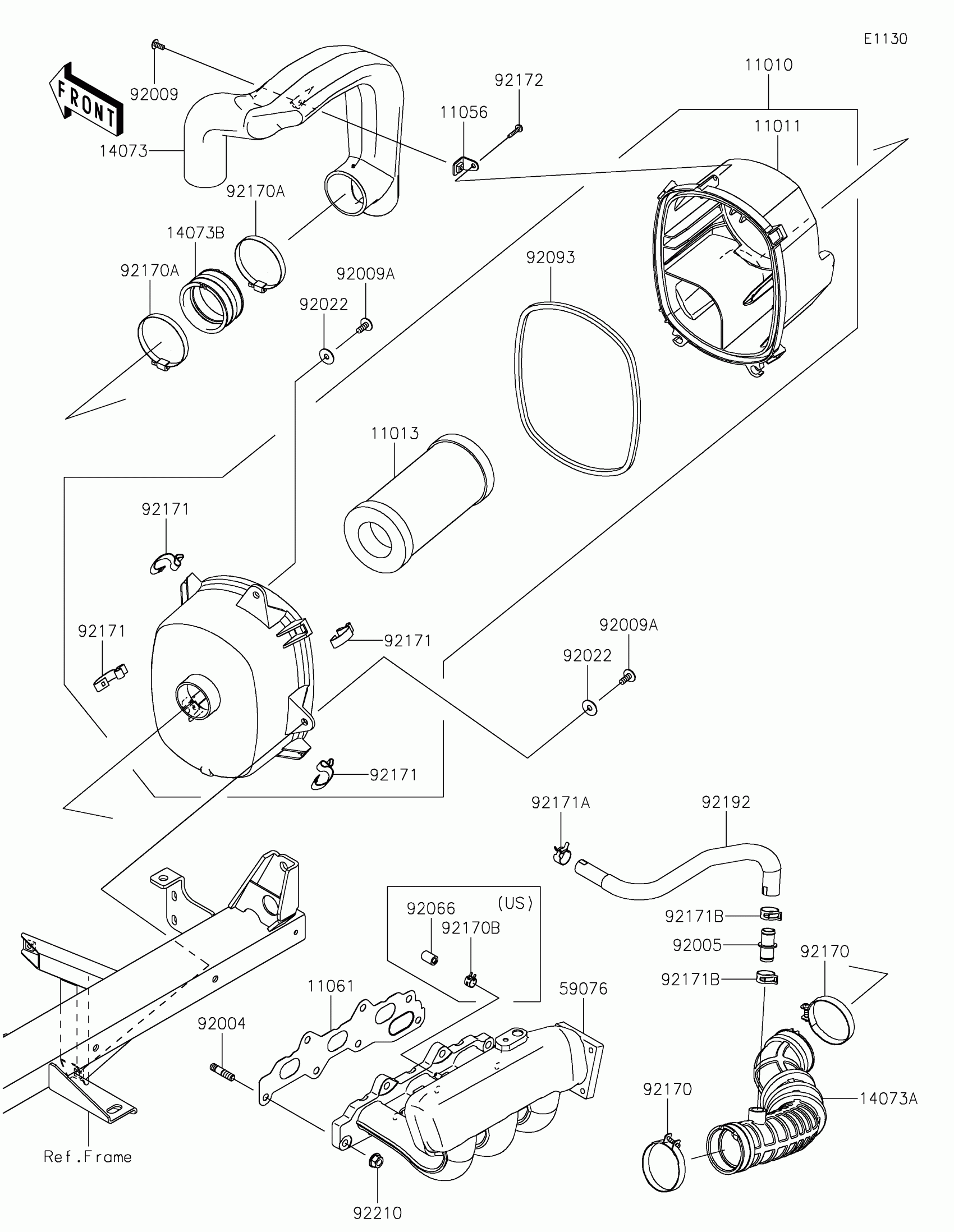

Kawasaki MULE PRO-FXT™ RANCH EDITION PLATINUM Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0979

$134.69

11011

CASE-AIR FILTER,UPP

11011-0857

$31.66

11013

ELEMENT-AIR FILTER

11013-1290

$26.36

11056

BRACKET,AIR FILTER

11056-3734

$3.88

11061

GASKET,INTAKE MANIFOLD

11061-0956

$6.26

14073

DUCT,INTAKE

14073-0786

$34.23

14073A

DUCT,INTAKE

14073-0992

$51.63

14073B

DUCT,JOINT

14073-1775

$3.46

59076

MANIFOLD-INTAKE

59076-0017

$582.09

92004

STUD

92004-0734

$5.06

92005

FITTING,DUCT-BREATHER TUBE

92005-0992

$5.74

92009

SCREW,5X12

92009-1154

$3.15

92009A

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92066

PLUG

92066-0862

$1.10

92093

SEAL,AIR FILTER

92093-0607

$7.71

92170

CLAMP

92170-1448

$6.44

92170A

CLAMP

92170-1764

$9.09

92170B

CLAMP

92170-2043

$1.08

92171

CLAMP

92171-0225

$1.68

92171A

CLAMP

92171-0533

$2.71

92171B

CLAMP,18.8MM

92171-2056

$1.27

92172

SCREW,TAPPING,5X20

92172-0009

$2.29

92192

TUBE,BREATHER

92192-2365

$17.63

92210

NUT

92210-0944

$1.10
