2020 Kawasaki Mule PRO-FXT™ Ranch Edition Other Diagram

← All diagrams

Find the part on the Other diagram for your 2020 Kawasaki Mule PRO-FXT™ Ranch Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

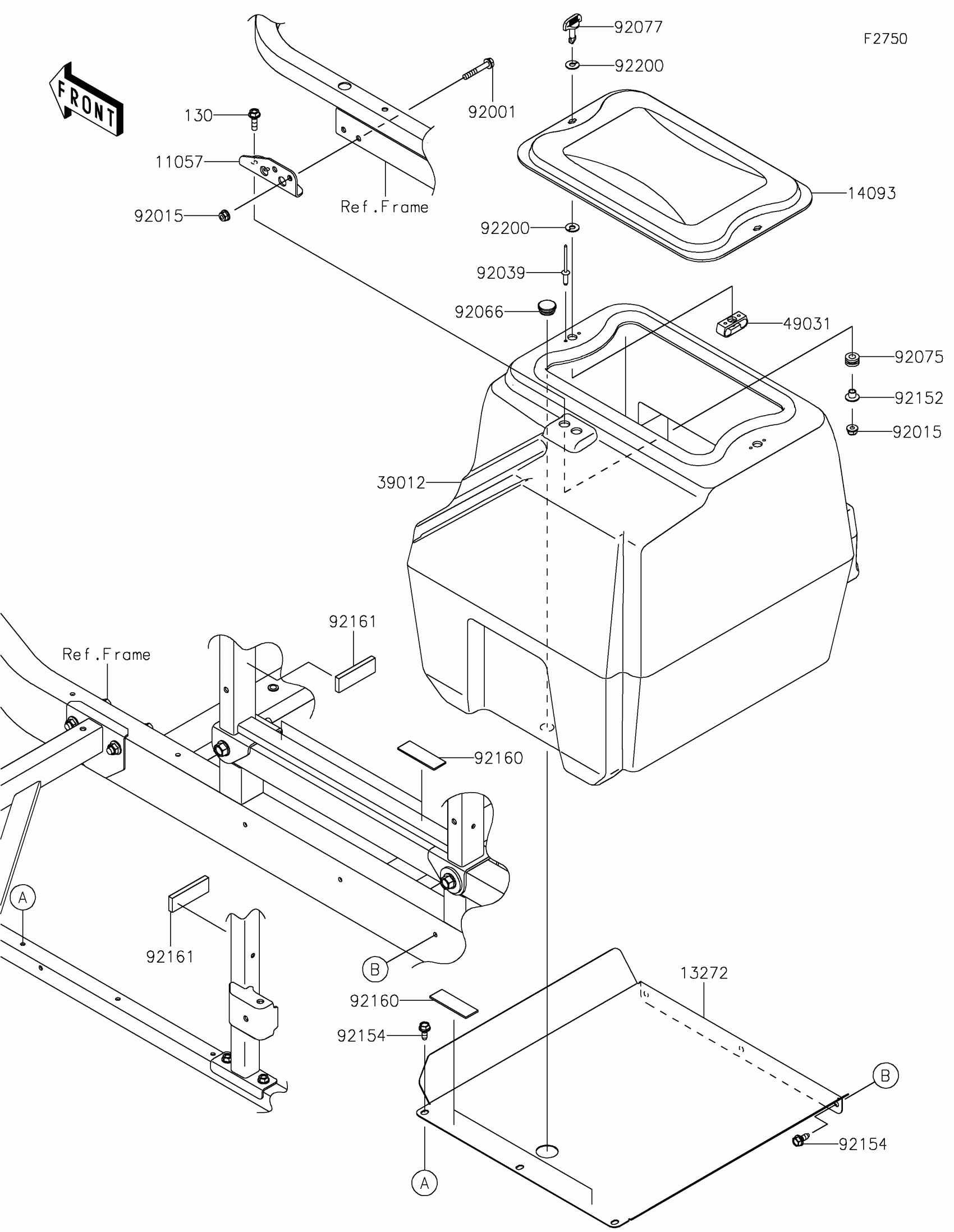

2020 Kawasaki Mule PRO-FXT™ Ranch Edition Other Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,TUB MOUNT

11057-1503

1
Out of stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

13272

PLATE,FLOOR BOTTOM

13272-2205

1

$59.95

In stock

14093

COVER,STORAGE BOX

14093-0523

1
Out of stock

39012

CASE-STORAGE

39012-0046

1

$74.60

In stock

49031

LATCH

49031-0008

1
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1603

1
Out of stock

92039

RIVET,3.2X9.5

92039-0785

1
Out of stock

92066

PLUG

92066-1306

1
Out of stock

92075

DAMPER

92075-1912

1
Out of stock

92077

KNOB

92077-0030

1
Out of stock

92152

COLLAR,6.3X8.3X9.2

92152-0237

1
Out of stock

92154

BOLT,6X15.6

92154-1250

1
Out of stock

92160

DAMPER

92160-1075

1
Out of stock

92161

DAMPER,20X60X6

92161-1874

1

$1.47

In stock

92200

WASHER

92200-0503

1
Out of stock
