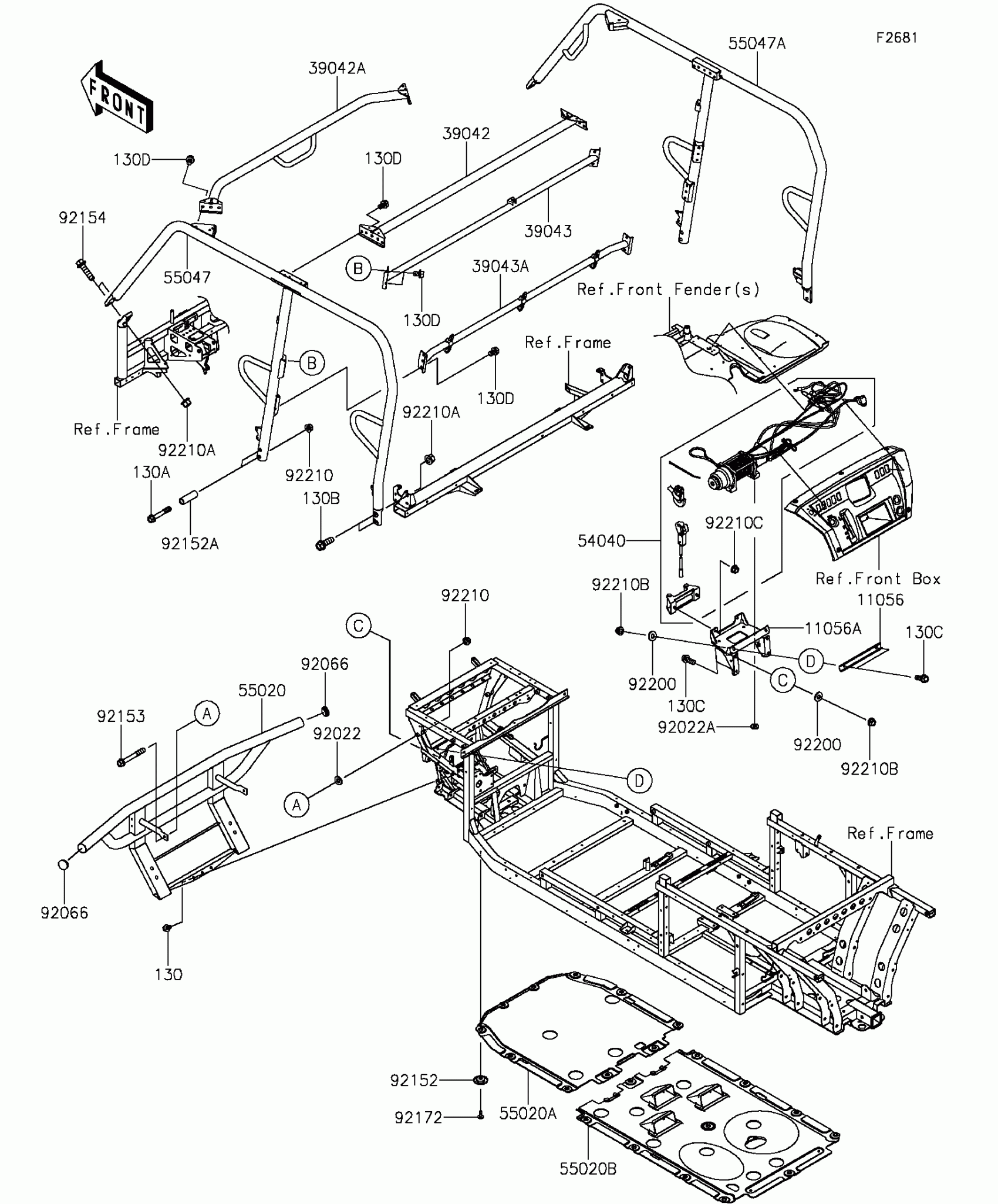

Kawasaki MULE PRO-FXT™ RANCH EDITION Guards/Cab Frame Diagram

Description

Price

11056

BRACKET

11056-4074

$12.34

11056A

BRACKET,WINCH

11056-7783

$117.93

130

BOLT-FLANGED,8X16

130BA0816

$1.03

130A

BOLT-FLANGED,10X60

130BA1060

$3.19

130B

BOLT-FLANGED,12X35

130BA1235

$3.19

130C

BOLT-FLANGED,10X25

130BB1025

$4.63

130D

BOLT-FLANGED,10X14

130CB1014

$2.71

39042

CROSSMEMBER,RR,T.BLACK

39042-0015-388

$113.42

39042A

CROSSMEMBER,FR,T.BLACK

39042-0016-388

$116.99

39043

CROSSMEMBER-COMP,B-P.,UPP,BLK

39043-0016-388

$152.36

39043A

CROSSMEMBER-COMP,B-P.,LWR,BLK

39043-0017-388

$113.42

54040

WINCH

54040-0001

$562.96

55020

GUARD,FR PIPE,T.BLACK

55020-0933-388

$258.50

55020A

GUARD,SKID PLATE

55020-0934

$74.60

55020B

GUARD,SKID PLATE

55020-0935

$107.50

55047

BAR-COMP,LH,T.BLACK

55047-0042-388

$338.90

55047A

BAR-COMP,RH,T.BLACK

55047-0043-388

$338.90

92022

WASHER,10X22X3

92022-1365

$4.85

92022A

WASHER,8.2X19X2

92022-1533

$4.85

92066

PLUG

92066-0769

$2.37

92152

COLLAR

92152-0784

$1.78

92152A

COLLAR,10.5X16X47

92152-1800

$4.94

92153

BOLT,FLANGED,10X75

92153-1384

$6.16

92154

BOLT,FLANGED,12X45

92154-1420

$3.15

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92200

WASHER,10.2X23X2.5

92200-7506

$3.51

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.15

92210A

NUT,12MM

92210-0603

$7.14

92210B

NUT,LOCK,FLANGED,10MM

92210-1080

$8.16

92210C

NUT,LOCK,M10

92210-1432

$1.34
