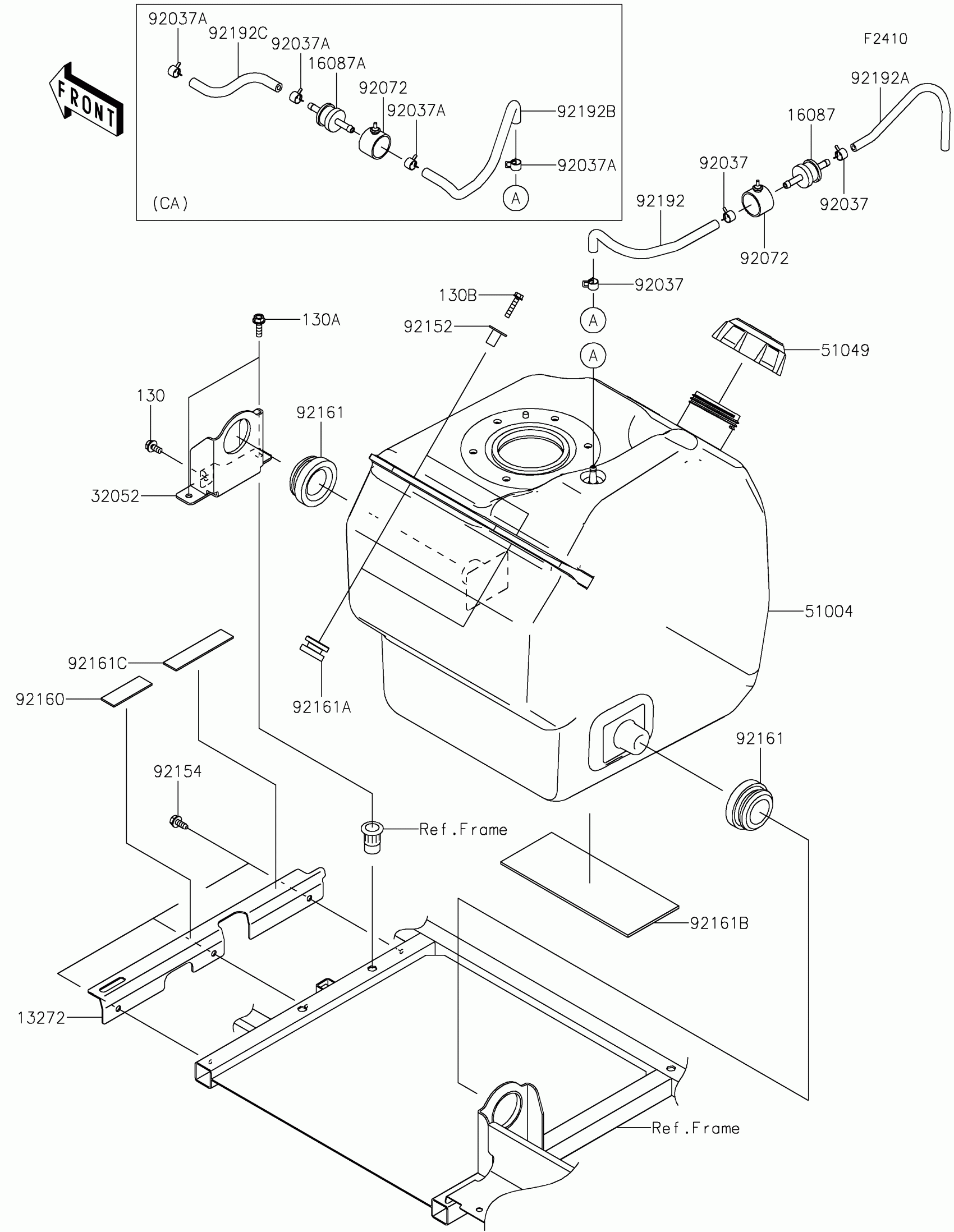

Kawasaki MULE PRO-FXT™ Fuel Tank(AJF/AKF) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,6X20

130BA0620

$1.49

130B

BOLT-FLANGED,6X30

130BA0630

$1.31

13272

PLATE

13272-2206

$13.03

16087

VALVE-CHECK

16087-0008

$34.38

16087A

VALVE-CHECK

16087-0009

$38.37

32052

BRACKET-TANK

32052-0751

$15.44

51004

TANK-FUEL

51004-0018

$288.87

51049

CAP-TANK,FUEL

51049-0718

$59.43

92037

CLAMP,TUBE

92037-1461

$3.08

92037A

CLAMP

92037-2113

$0.97

92072

BAND

92072-0850

$4.39

92152

COLLAR,6.8X10X18.1

92152-1867

$4.61

92154

BOLT,6X15.6

92154-1250

$0.83

92160

DAMPER

92160-1075

$5.71

92161

DAMPER,30X56X25

92161-1613

$4.37

92161A

DAMPER,10X28X17

92161-1614

$1.42

92161B

DAMPER,80X200X3.175

92161-1645

$14.44

92161C

DAMPER

92161-1876

$1.68

92192

TUBE,BREATHER

92192-0773

$4.81

92192A

TUBE,BREATHER,5X9X220

92192-1199

$3.64

92192B

TUBE,5X10.4X185/35

92192-1662

$32.43

92192C

TUBE,5X10.4X80

92192-1663

$22.86
