Description

Price

11065

CAP

11065-7504

$1.14

130

BOLT-FLANGED,6X18

130BA0618

$1.17

130A

BOLT-FLANGED,8X14

130BA0814

$1.54

130B

BOLT-FLANGED,8X22

130BA0822

$2.59

130C

BOLT-FLANGED,8X25

130BA0825

$2.01

130D

BOLT-FLANGED,8X60

130BA0860

$1.24

130E

BOLT-FLANGED,10X65

130BA1065

$2.17

130F

BOLT-FLANGED,10X70

130BA1070

$2.25

130G

BOLT-FLANGED,8X30

130CA0830

$0.86

130H

BOLT-FLANGED,8X45

130CA0845

$0.95

130I

BOLT-FLANGED,10X75

130CA1075

$3.85

31064

PIPE-COMP,RR DOOR HINGE,LH

31064-0642

$35.85

31064A

PIPE-COMP,RR DOOR HINGE,RH

31064-0643

$56.85

32085

STOPPER

32085-0749

$34.79

32181

FRAME-SUB-COMP,DASH PANEL

32181-0004

$812.73

32181A

FRAME-SUB-COMP,FR SEAT

32181-0005

$812.73

39043

CROSSMEMBER-COMP

39043-0018

$510.45

39051

FRAME-COMP-SIDE,RH

39051-0002

$616.60

39051A

FRAME-COMP-SIDE,LH

39051-0005

$330.31

39114

SHAFT-COMP-STRG

39114-0016

$336.98

39190

SHAFT-ASSY-STEERING

39190-0006

$206.86

39191

GEAR-ASSY-STEERING

39191-0030

$1,037.96

59266

JOINT-BALL

59266-0712

$69.15

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92015B

NUT,POP,6MM,L=15

92015-1791

$3.57

92015C

NUT,POP,8MM,L=16.5

92015-1793

$3.81

92015D

NUT,CASTLE,14MM

92015-1841

$6.39

92066

PLUG

92066-7505

$3.44

92139

BUSHING

92139-0230

$4.10

92152

COLLAR,8.2X18X5

92152-1848

$4.98

92154

BOLT,FLANGED,12X50

92154-1008

$5.99

92154A

BOLT,FLANGED,8X20

92154-1226

$0.85

92154B

BOLT,6X21.5

92154-1320

$2.05

92161

DAMPER

92161-1688

$3.80

92200

WASHER,10.5X25X1.6

92200-1595

$4.65

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,LOCK,FLANGED,6MM

92210-0303

$1.04

92210B

NUT,HARD LOCK,8MM

92210-0934

$4.34

92210C

NUT,16MM

92210-0969

$13.88

410

WASHER-PLAIN-SMALL,14MM

410AA1400

$1.57

550

PIN-COTTER,3.0X25

550AA3025

$0.59

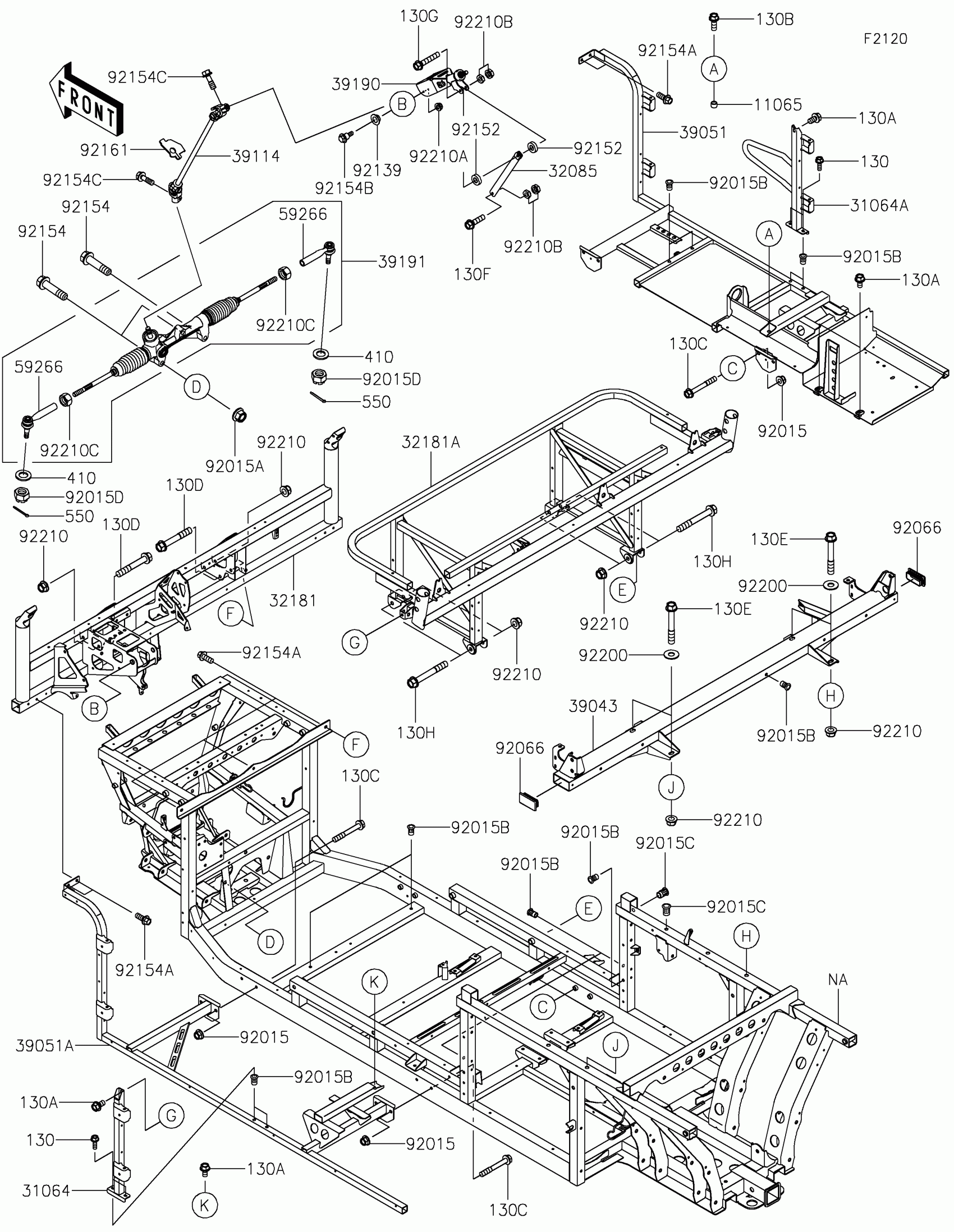

Kawasaki MULE PRO-FXT™ Frame(AFF) Diagram

CAP
