2016 Kawasaki Mule Pro-FXT™ Eps Timing Belt Diagram

← All diagrams

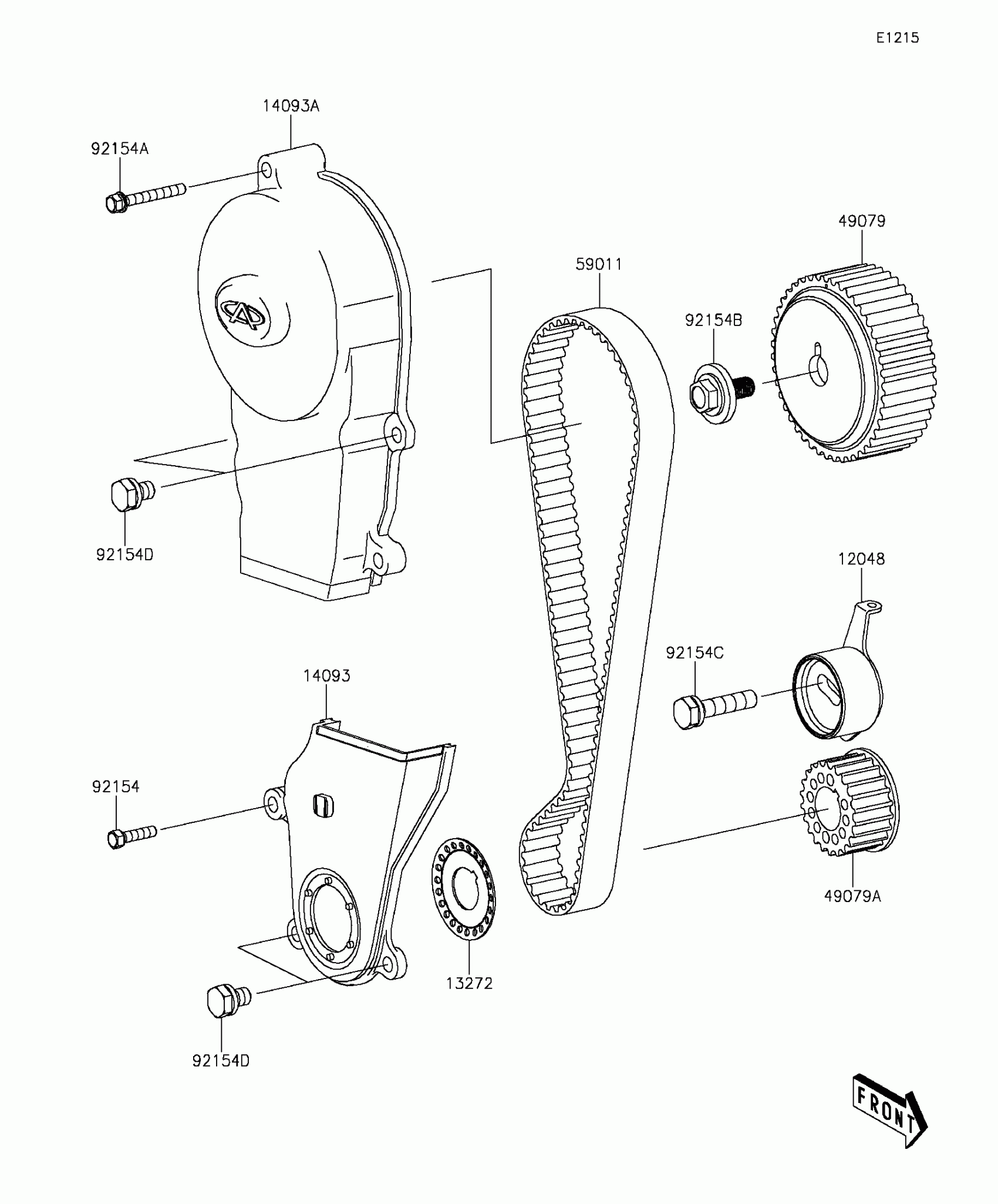

Find the part on the Timing Belt diagram for your 2016 Kawasaki Mule Pro-FXT™ Eps, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule Pro-FXT™ Eps Timing Belt Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12048

TENSIONER-ASSY

12048-0093

1

$20.40

In stock

13272

PLATE,TIMING BELT

13272-1872

1

$1.54

In stock

14093

1

$6.03

In stock

14093A

1

$12.49

In stock

49079

1

$228.57

In stock

49079A

1

$98.57

In stock

59011

BELT,TIMING

59011-0042

1

$45.87

In stock

92154

BOLT,6X25

92154-1583

1

$0.93

In stock

92154A

BOLT,6X50

92154-1591

1

$1.44

In stock

92154B

BOLT,FLANGED

92154-1614

1

$2.19

In stock

92154C

BOLT,10X45

92154-1615

1

$1.95

In stock

92154D

BOLT,6X16

92154-1617

1

$0.93

In stock
