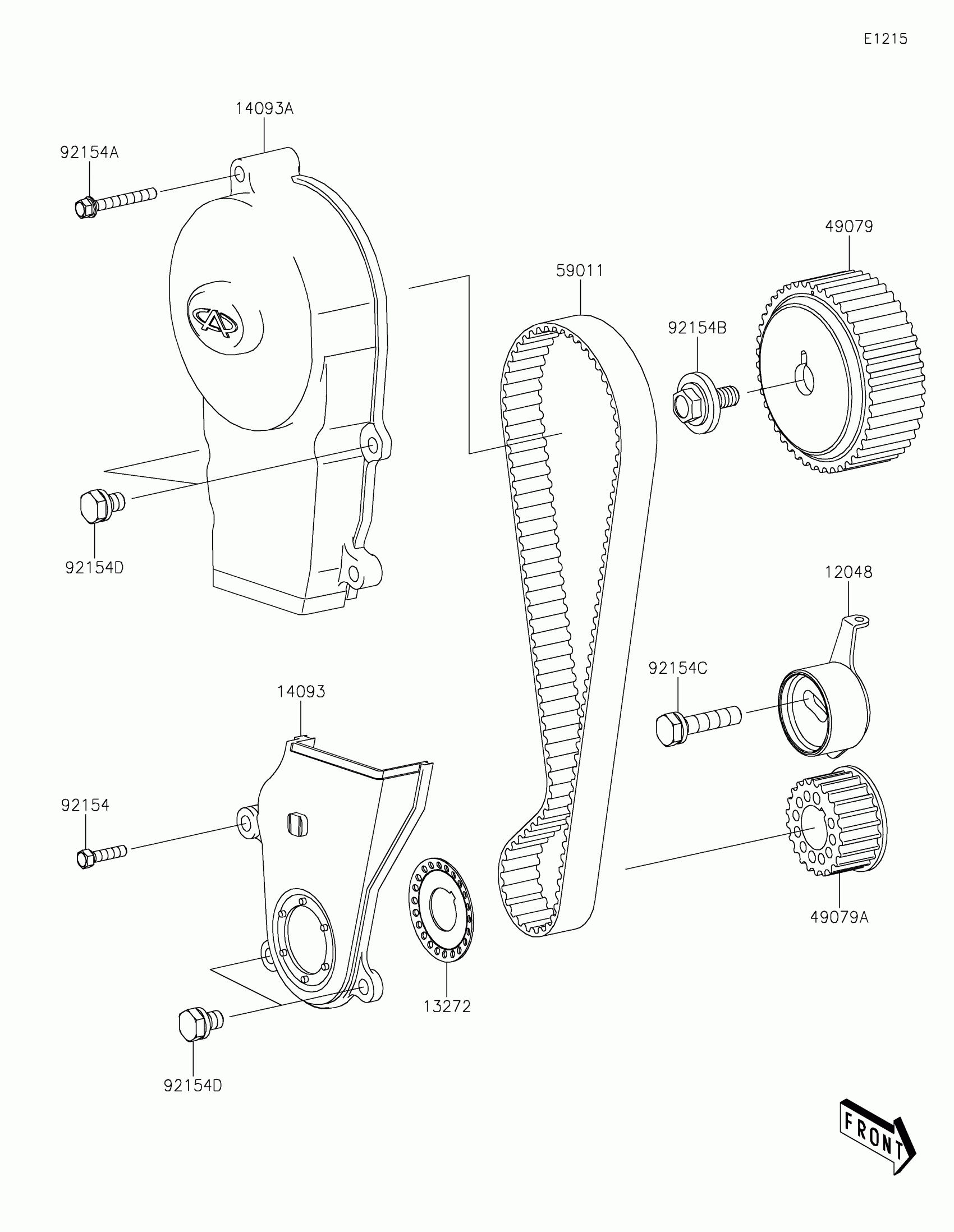

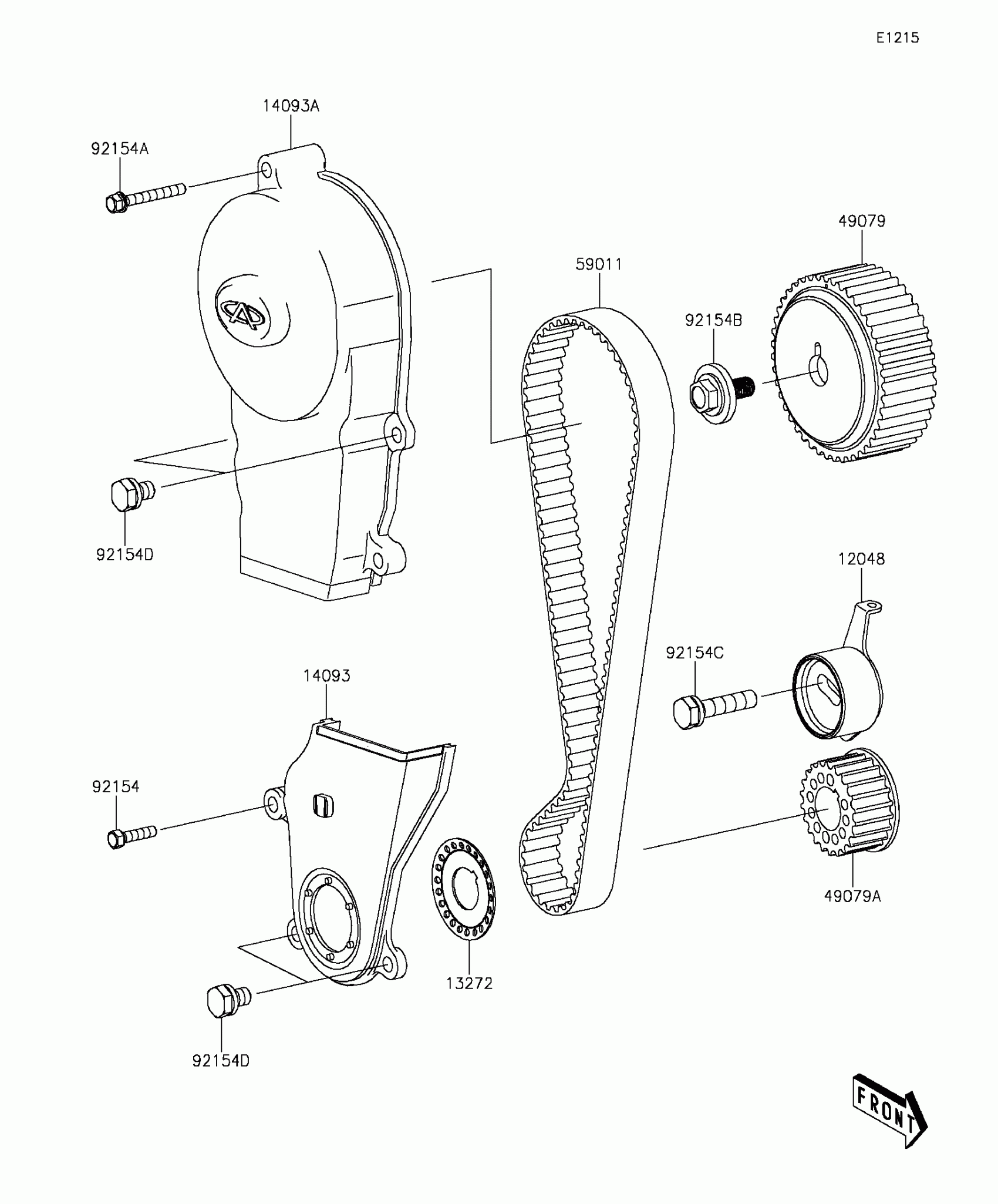

Kawasaki MULE PRO-FXT™ EPS LE Timing Belt Diagram

Description

Price

12048

TENSIONER-ASSY

12048-0093

$17.79

13272

PLATE,TIMING BELT

13272-1872

$1.33

14093

COVER,TIMING BELT,LWR

14093-0200

$5.79

14093A

COVER,TIMING BELT,UPP

14093-0201

$12.49

49079

PULLEY-BELT,CAMSHAFT

49079-0023

$228.57

49079A

PULLEY-BELT,CRANKSHAFT

49079-0024

$98.57

59011

BELT,TIMING

59011-0042

$44.79

92154

BOLT,6X25

92154-1583

$0.93

92154A

BOLT,6X50

92154-1591

$1.44

92154B

BOLT,FLANGED

92154-1614

$2.19

92154C

BOLT,10X45

92154-1615

$1.95

92154D

BOLT,6X16

92154-1617

$0.93
