2016 Kawasaki Mule Pro-FXT™ Eps Le Sun Top Diagram

← All diagrams

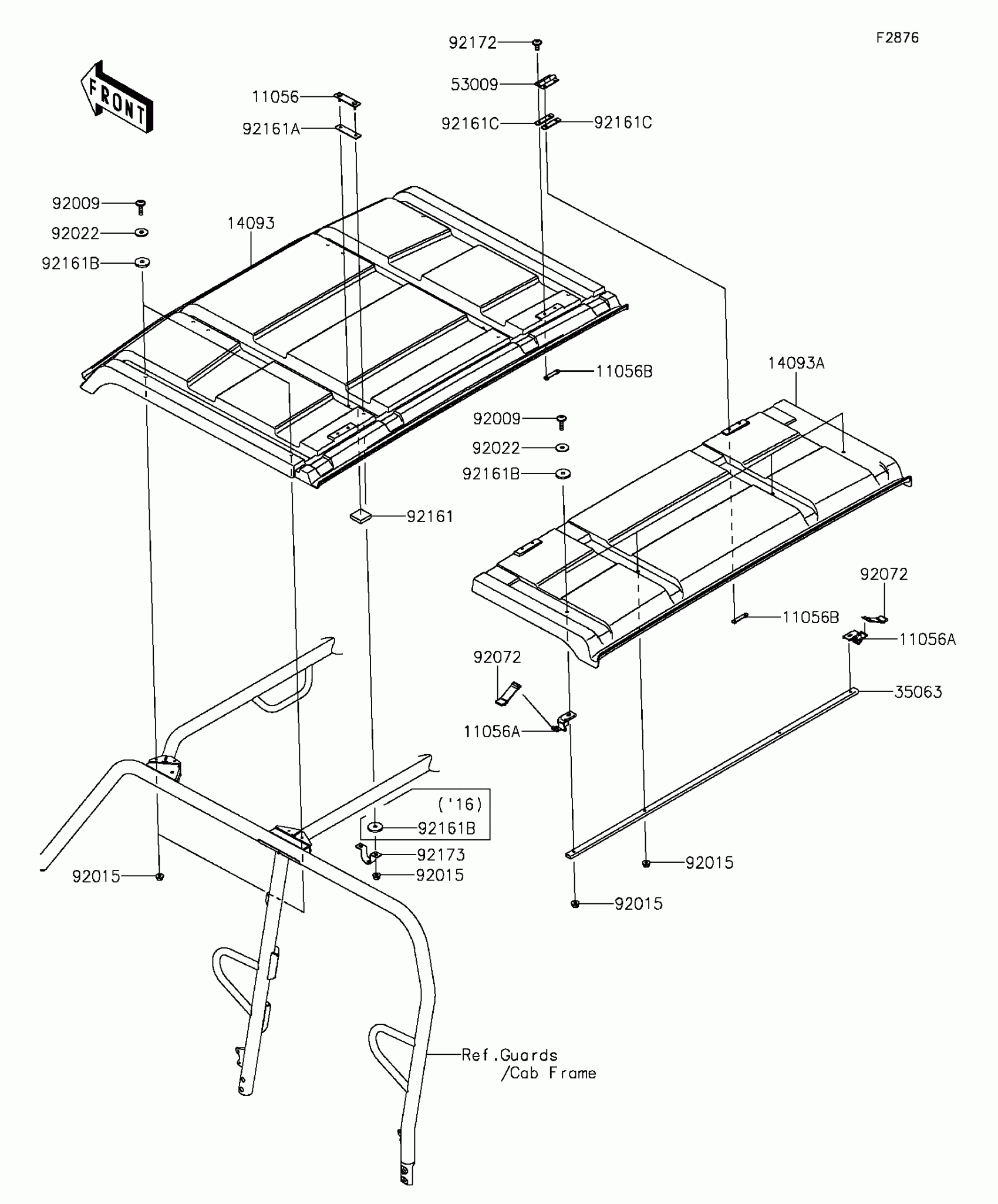

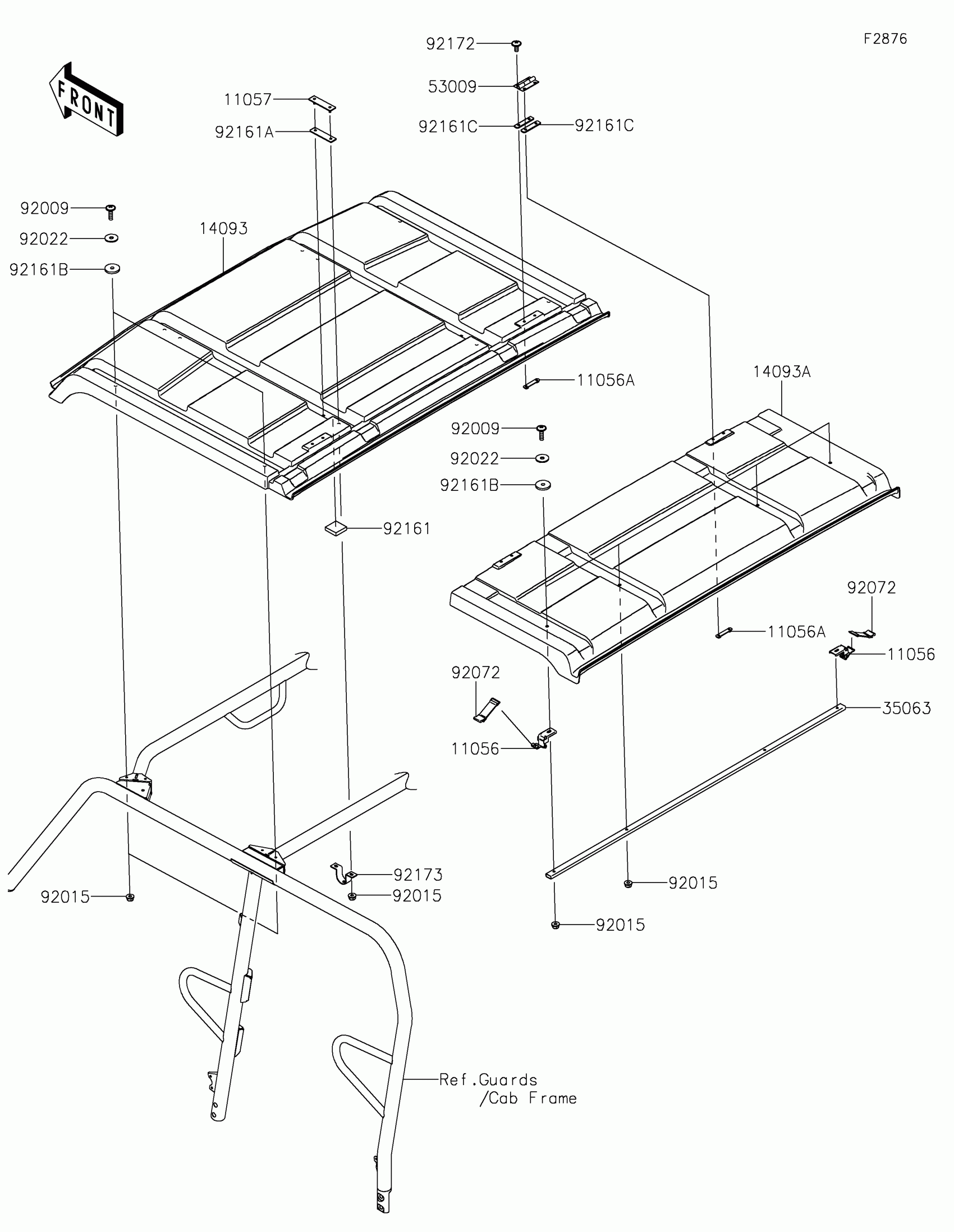

Find the part on the Sun Top diagram for your 2016 Kawasaki Mule Pro-FXT™ Eps Le, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule Pro-FXT™ Eps Le Sun Top Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-1523

1
Out of stock

11056A

BRACKET

11056-3815

1

$13.31

In stock

11056B

BRACKET

11056-3910

1

$5.41

In stock

14093

COVER,SUNTOP,FR

14093-0017

1

$192.35

In stock

14093A

COVER,SUNTOP,RR

14093-0018

1

$138.55

In stock

35063

STAY,RR SUNTOP

35063-0944

1

$59.69

In stock

53009

HINGE

53009-0034

1

$8.12

In stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92015

1

$3.72

In stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92072

BAND,TOOL

92072-1176

1

$12.34

In stock

92161

1

$1.66

In stock

92161A

DAMPER

92161-1476

1

$4.08

In stock

92161B

DAMPER,6X25X3.15

92161-1633

1

$0.54

In stock

92161C

DAMPER

92161-1650

1

$14.20

In stock

92172

SCREW,6X14

92172-0004

1

$2.29

In stock

92173

CLAMP,U

92173-1224

1

$1.95

In stock
