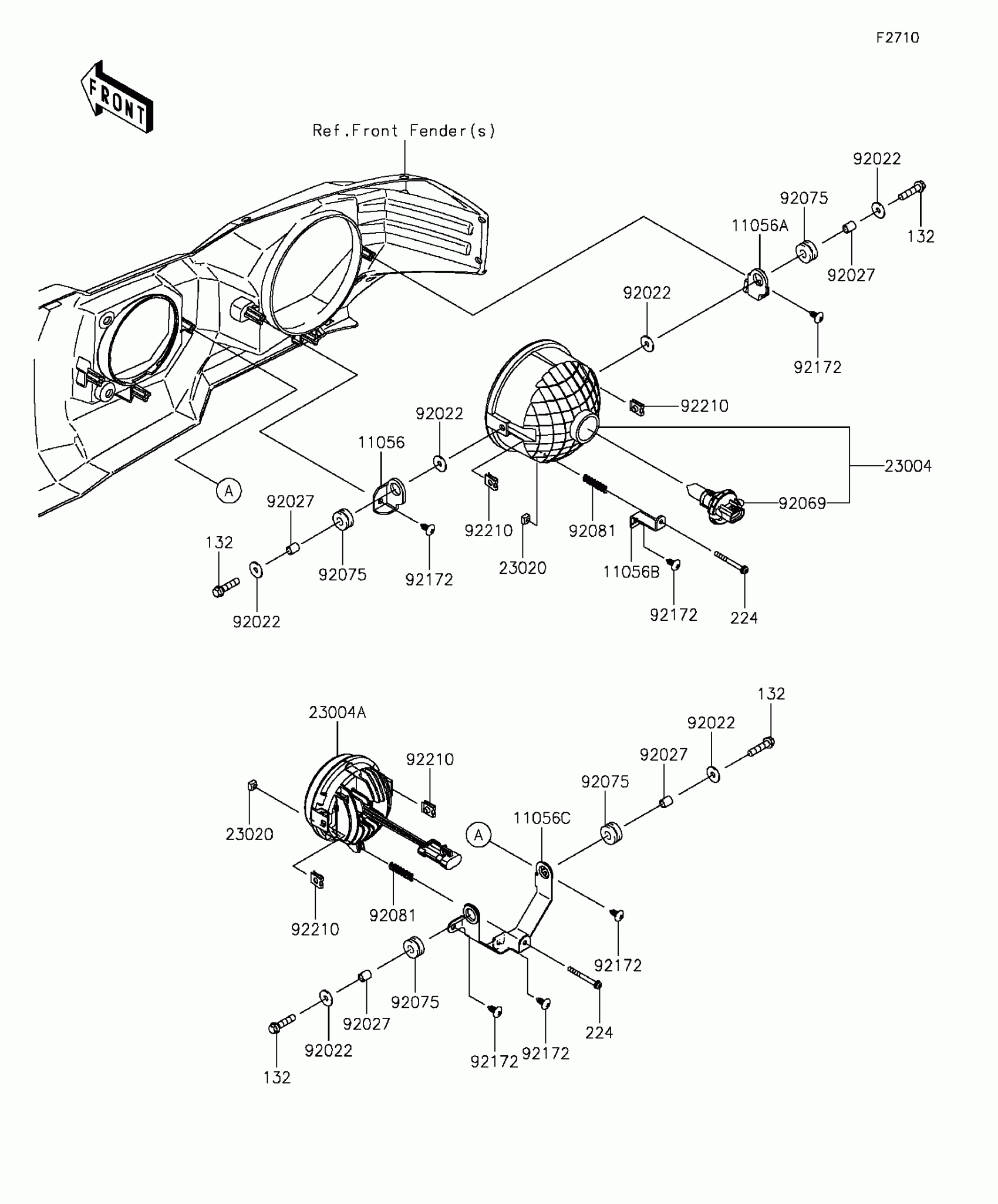

Find the part on the Headlight diagram for your 2016 Kawasaki Mule PRO-FXT™ EPS LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule PRO-FXT™ EPS LE Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,LH

11056-2931

1
Out of stock

11056A

BRACKET,RH

11056-2932

1
Out of stock

11056B

BRACKET

11056-2933

1
Out of stock

11056C

BRACKET,LAMP STAY

11056-3857

1
Out of stock

132

1

$2.29

In stock

224

SCREW-PAN-WP-CROS

224AA0440

1
Out of stock

23004

LAMP-HEAD

23004-0339

1
Out of stock

23004A

LAMP-HEAD,LED

23004-0341

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,H13-12-8V

92069-0082

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92081

SPRING,FOCUS ADJUST

92081-1896

1
Out of stock

92172

SCREW,6X16

92172-0284

1
Out of stock

92210

NUT

92210-1125

1
Out of stock
