2016 Kawasaki Mule PRO-FXT™ EPS Drive Converter Diagram

← All diagrams

Find the part on the Drive Converter diagram for your 2016 Kawasaki Mule PRO-FXT™ EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

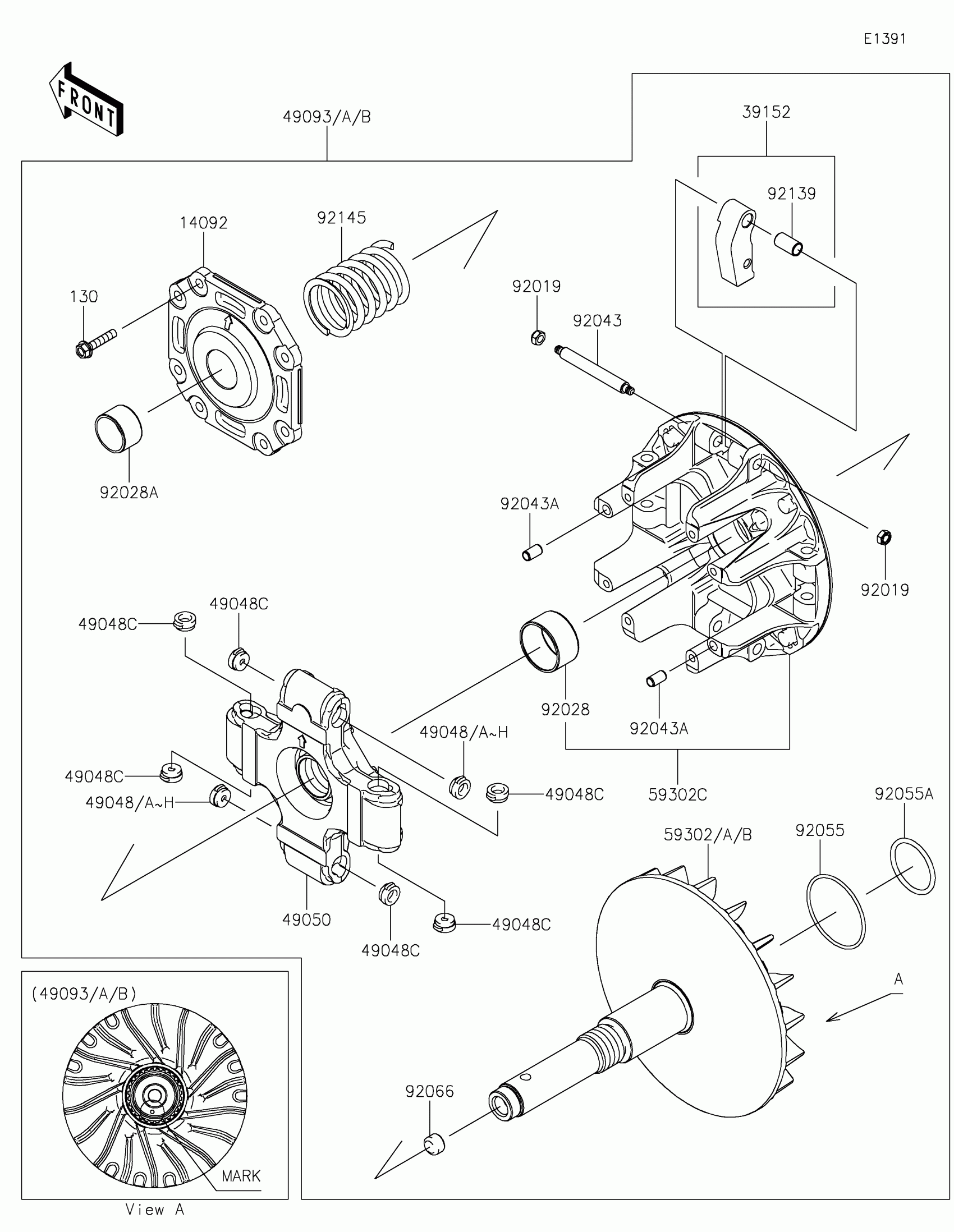

2016 Kawasaki Mule PRO-FXT™ EPS Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X30

130CA0630

1

$2.05

In stock

14092

COVER

14092-1201

1
Out of stock

39152

WEIGHT-RAMP

39152-0039

1

$47.45

In stock

49048

SHOE,T=7.2

49048-1087

—
Out of stock

49048A

SHOE,T=7.3

49048-1088

—
Out of stock

49048B

SHOE,T=7.4

49048-1089

—
Out of stock

49048C

SHOE,T=7.5

49048-1090

1
Out of stock

49048D

SHOE,T=7.6

49048-1091

—
Out of stock

49048E

SHOE,T=7.7

49048-1092

—
Out of stock

49048F

SHOE,T=7.8

49048-1093

—
Out of stock

49048G

SHOE,T=7.9

49048-1094

—
Out of stock

49048H

SHOE,T=8.0

49048-1095

—
Out of stock

49050

SPIDER

49050-1083

1
Out of stock

49093C

CONVERTER-DRIVE,B MARK,WHITE

49093-0071

1
Out of stock

49093D

CONVERTER-DRIVE,A MARK,BLUE

49093-0072

1
Out of stock

49093E

CONVERTER-DRIVE,C MARK,YELLOW

49093-0073

1
Out of stock

59301

SHEAVE-MOVABLE

59301-0025

1
Out of stock

59302C

SHEAVE-COMP,B MARK,WHITE

59302-0092

1
Out of stock

59302D

SHEAVE-COMP,A MARK,BLUE

59302-0093

1
Out of stock

59302E

SHEAVE-COMP,C MARK,YELLOW

59302-0094

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1
Out of stock

92028

BUSHING

92028-1975

1
Out of stock

92028A

BUSHING

92028-1980

1
Out of stock

92043

PIN

92043-0809

1
Out of stock

92043A

PIN,6.2X8X14

92043-1263

1
Out of stock

92055

RING-O,59.5X2.4

92055-0753

1
Out of stock

92055A

RING-O,3.5X39.7

92055-0789

1
Out of stock

92066

PLUG

92066-0784

1
Out of stock

92139

BUSHING,9X11X19.75

92139-1103

1
Out of stock

92145

SPRING

92145-1576

1
Out of stock
