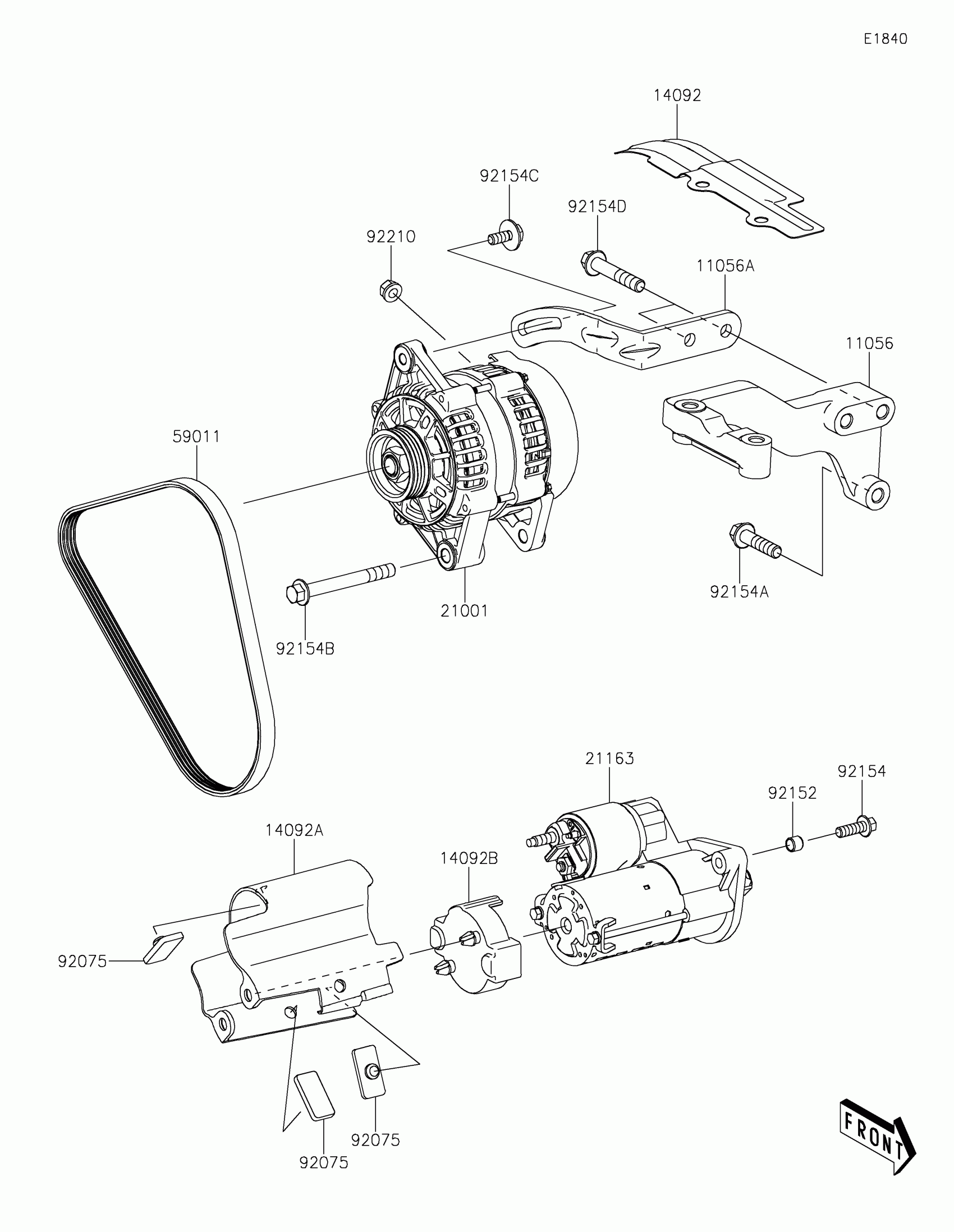

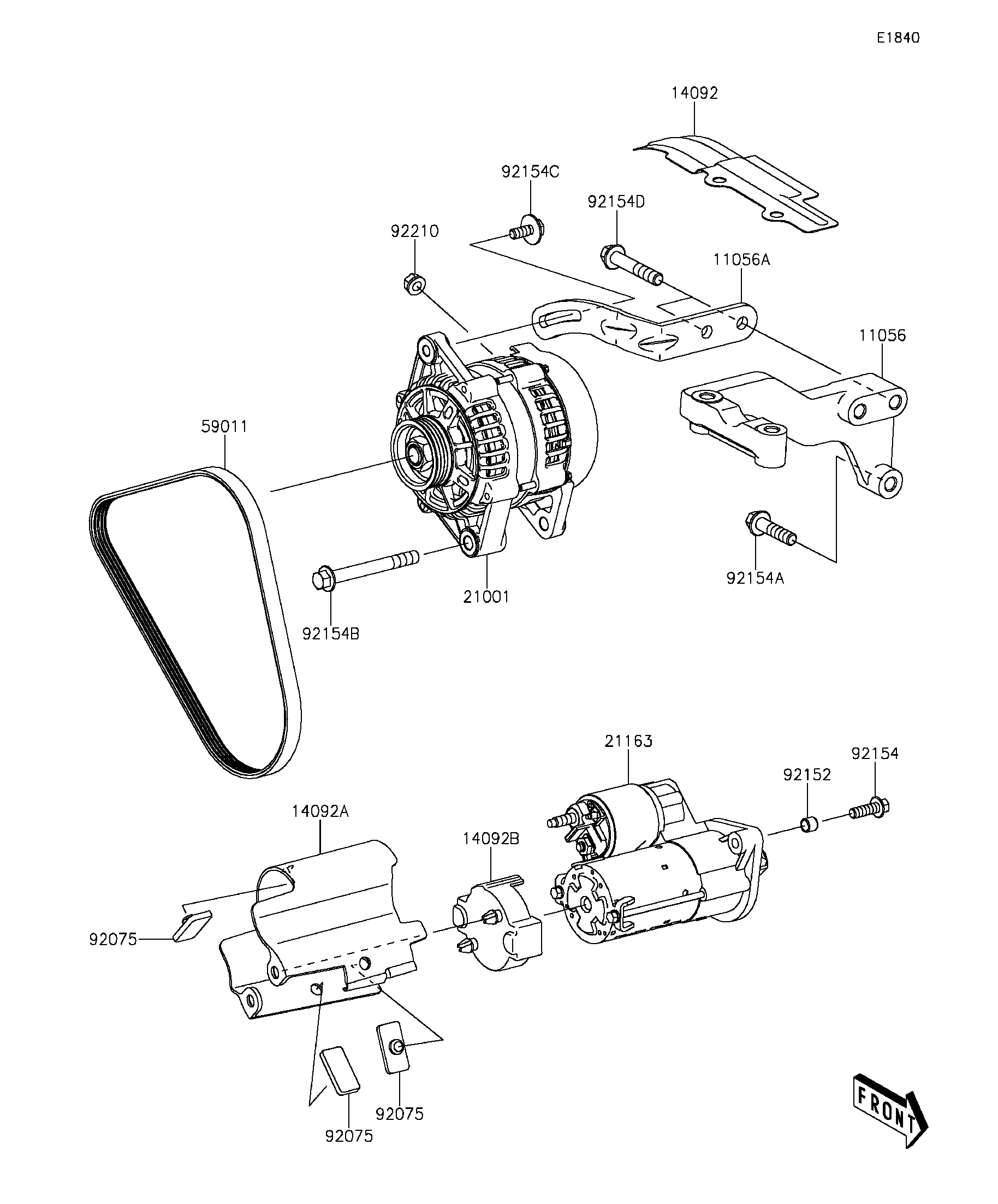

Kawasaki MULE PRO-FXT™ EPS CAMO Starter Motor Diagram

#

Description

Price

11056

BRACKET,SUSPENSION,RR

11056-7083

Unavailable

11056A

BRACKET

11056-7084

Unavailable

14092

COVER,ALTER BELT

14092-1198

Unavailable

14092A

COVER,STARTER BODY

14092-1199

Unavailable

14092B

COVER,STARTER END FACE

14092-1200

Unavailable

21001

GENERATOR

21001-0606

Unavailable

21163

STARTER-ELECTRIC

21163-0751

Unavailable

59011

BELT

59011-0041

Unavailable

92075

DAMPER

92075-1054

Unavailable

92152

COLLAR

92152-1961

Unavailable

92154

BOLT,FLANGED,8X25

92154-1602

Unavailable

92154A

BOLT,FLANGED,10X40

92154-1604

Unavailable

92154B

BOLT,FLANGED,10X90

92154-1605

Unavailable

92154C

BOLT,8X20

92154-1606

Unavailable

92154D

BOLT,FLANGED,10X55

92154-1607

Unavailable

92210

NUT,6MM

92210-0960

Unavailable
