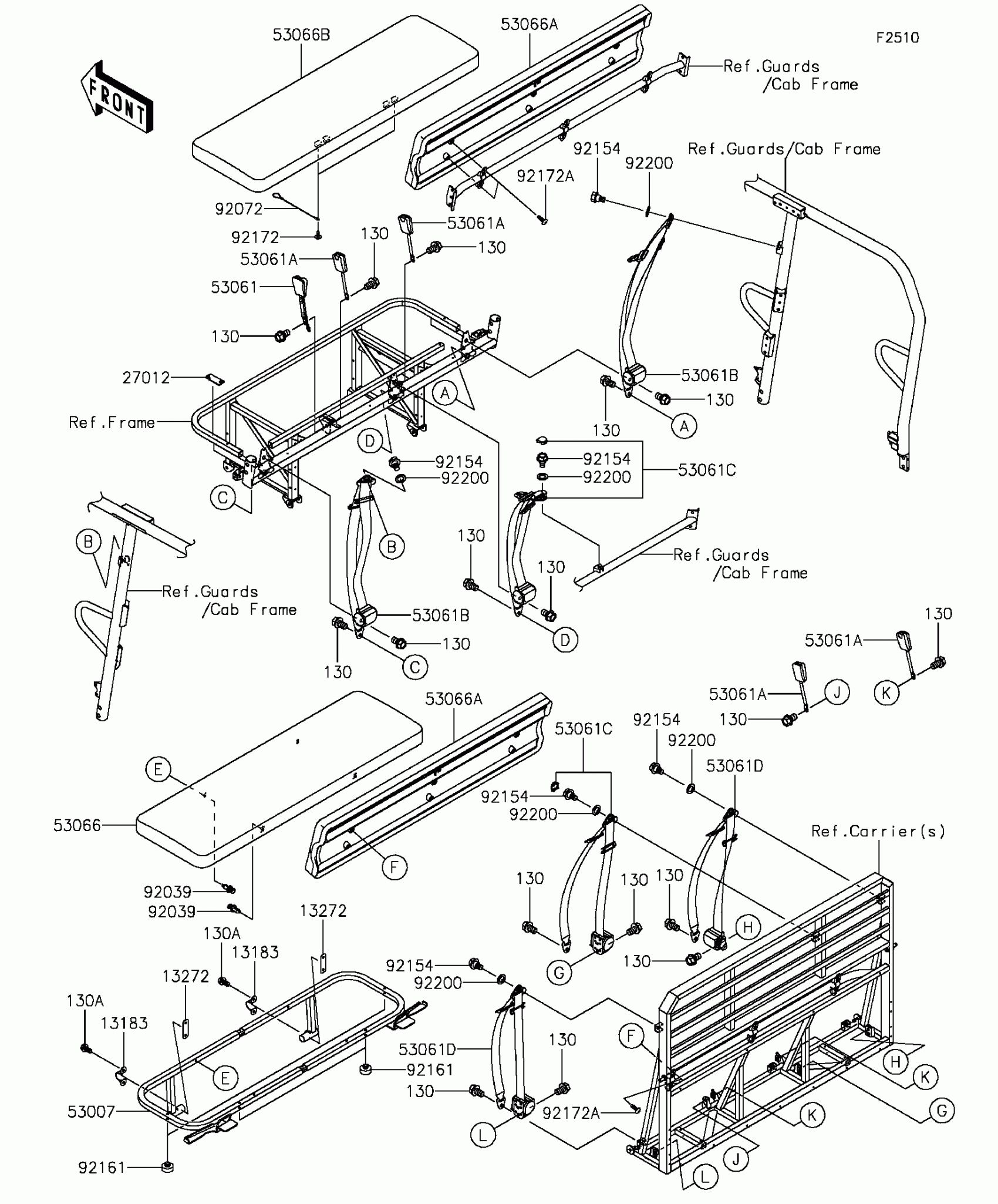

Kawasaki MULE PRO-FXT™ EPS CAMO Seat(DFF) Diagram

Description

Price

130

BOLT-FLANGED,12X20

130BA1220

$2.97

130A

BOLT-FLANGED,8X16

130CA0816

$2.05

13183

PLATE,SEAT

13183-1400

$5.98

13272

PLATE

13272-1699

$1.56

27012

HOOK,FASTENER,16X40

27012-0786

$4.56

53007

FRAME-SEAT

53007-0364

$159.66

53061

BELT-SEAT,BUCKLE,SW.

53061-0038

$56.84

53061A

BELT-SEAT,BUCKLE

53061-0039

$28.65

53061B

BELT-SEAT,FR,LH&RH

53061-0045

$152.89

53061C

BELT-SEAT,MIDDLE

53061-0046

$168.60

53061D

BELT-SEAT,RR,LH&RH

53061-0047

$152.89

53066

SEAT-ASSY,BLACK

53066-0425-MA

$508.20

53066A

SEAT-ASSY,BACK,BLACK

53066-0426-MA

$261.04

53066B

SEAT-ASSY,BOTTOM,BLACK

53066-0475-MA

$508.20

92039

RIVET

92039-1229

$0.80

92072

BAND

92072-0769

$3.41

92154

BOLT,FLANGED,10X18.5

92154-1388

$5.00

92161

DAMPER

92161-1065

$2.97

92172

SCREW,6X16

92172-0284

$0.94

92172A

SCREW,TAPPING,6X20

92172-0488

$2.44

92200

WASHER,14X22X2

92200-1745

Unavailable
