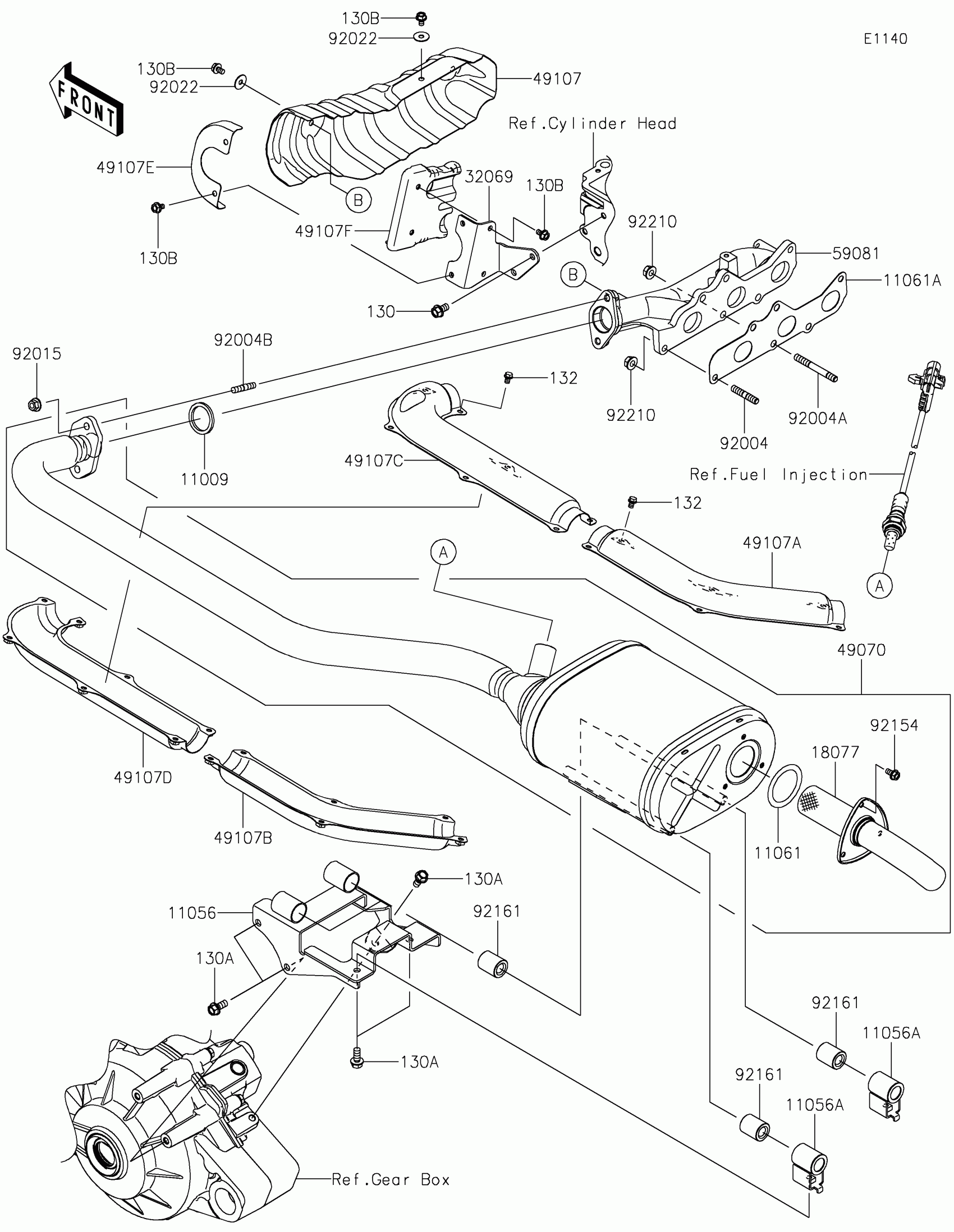

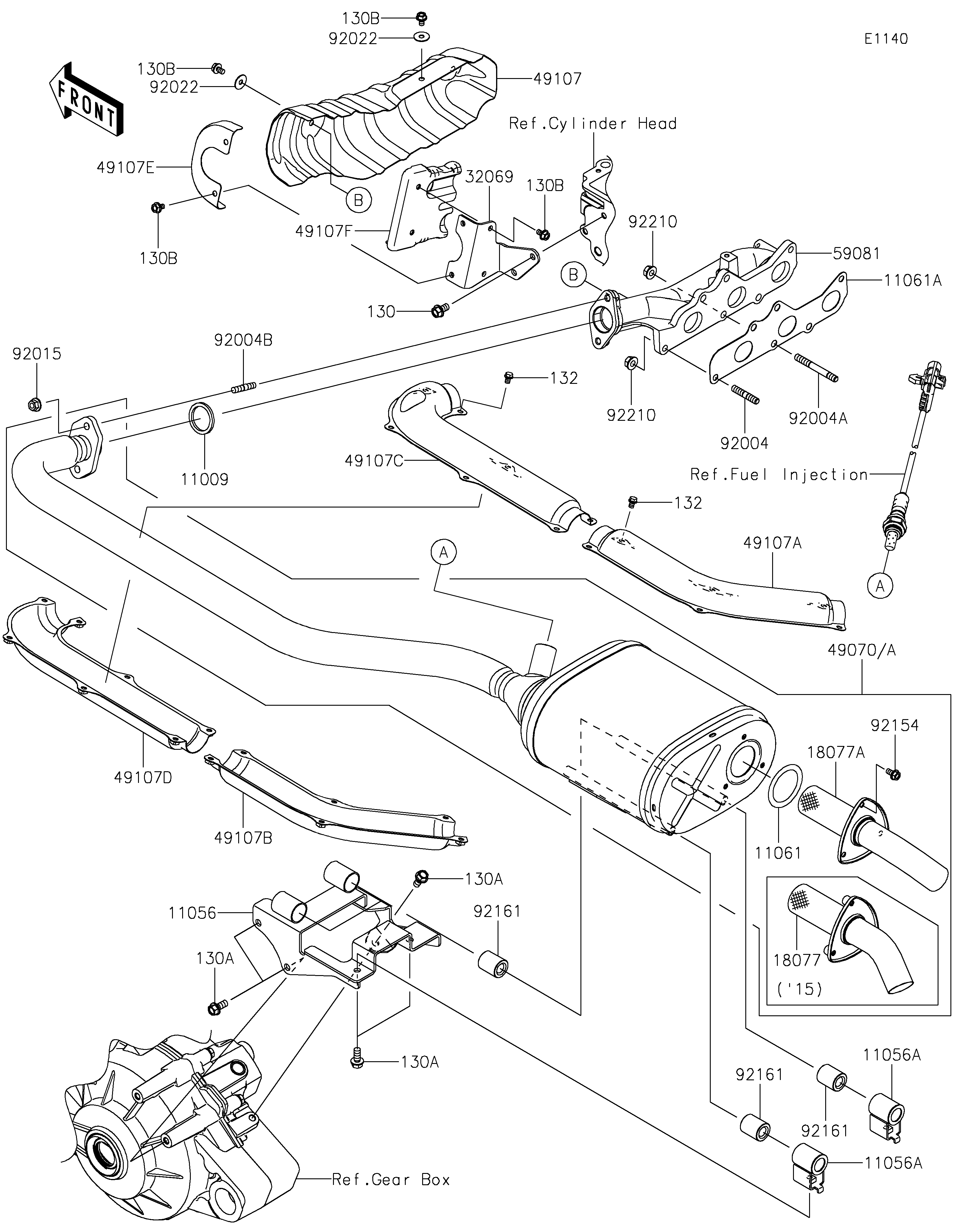

Kawasaki MULE PRO-FXT™ EPS CAMO Muffler(s) Diagram

#

Description

Price

11009

GASKET,EXHAUST HOLDER

11009-1894

Unavailable

11056

BRACKET,MUFFLER MOUNT

11056-4394

Unavailable

11056A

BRACKET

11056-4440

Unavailable

11061

GASKET,EXHAUST PIPE

11061-0013

Unavailable

11061A

GASKET

11061-0960

Unavailable

130

BOLT-FLANGED,8X14

130BA0814

Unavailable

130A

BOLT-FLANGED,8X18

130BA0818

Unavailable

130B

BOLT-FLANGED,6X10

130BD0610

Unavailable

132

BOLT-FLANGED-SMALL,6X8

132BD0608

Unavailable

18077A

ARRESTER-SPARK

18077-0041

Unavailable

32069

BRACKET-MUFFLER

32069-0894

Unavailable

49070A

MUFFLER-COMP

49070-0814

Unavailable

49107

COVER-EXHAUST PIPE

49107-0767

Unavailable

49107A

COVER-EXHAUST PIPE,RR,UPP

49107-0771

Unavailable

49107B

COVER-EXHAUST PIPE,RR,LWR

49107-0772

Unavailable

49107C

COVER-EXHAUST PIPE,FR,UPP

49107-0773

Unavailable

49107D

COVER-EXHAUST PIPE,FR,LWR

49107-0774

Unavailable

49107E

COVER-EXHAUST PIPE

49107-0838

Unavailable

49107F

COVER-EXHAUST PIPE

49107-0839

Unavailable

59081

MANIFOLD-EXHAUST

59081-0235

Unavailable

92004

STUD

92004-0735

Unavailable

92004A

STUD

92004-0736

Unavailable

92004B

STUD,8X25

92004-1214

Unavailable

92015

NUT,8MM

92015-1402

Unavailable

92022

WASHER,PLAIN,6.5X20X1

92022-165

Unavailable

92154

BOLT,FLANGED,6X12

92154-0852

Unavailable

92161

DAMPER

92161-0961

Unavailable

92210

NUT

92210-0944

Unavailable
