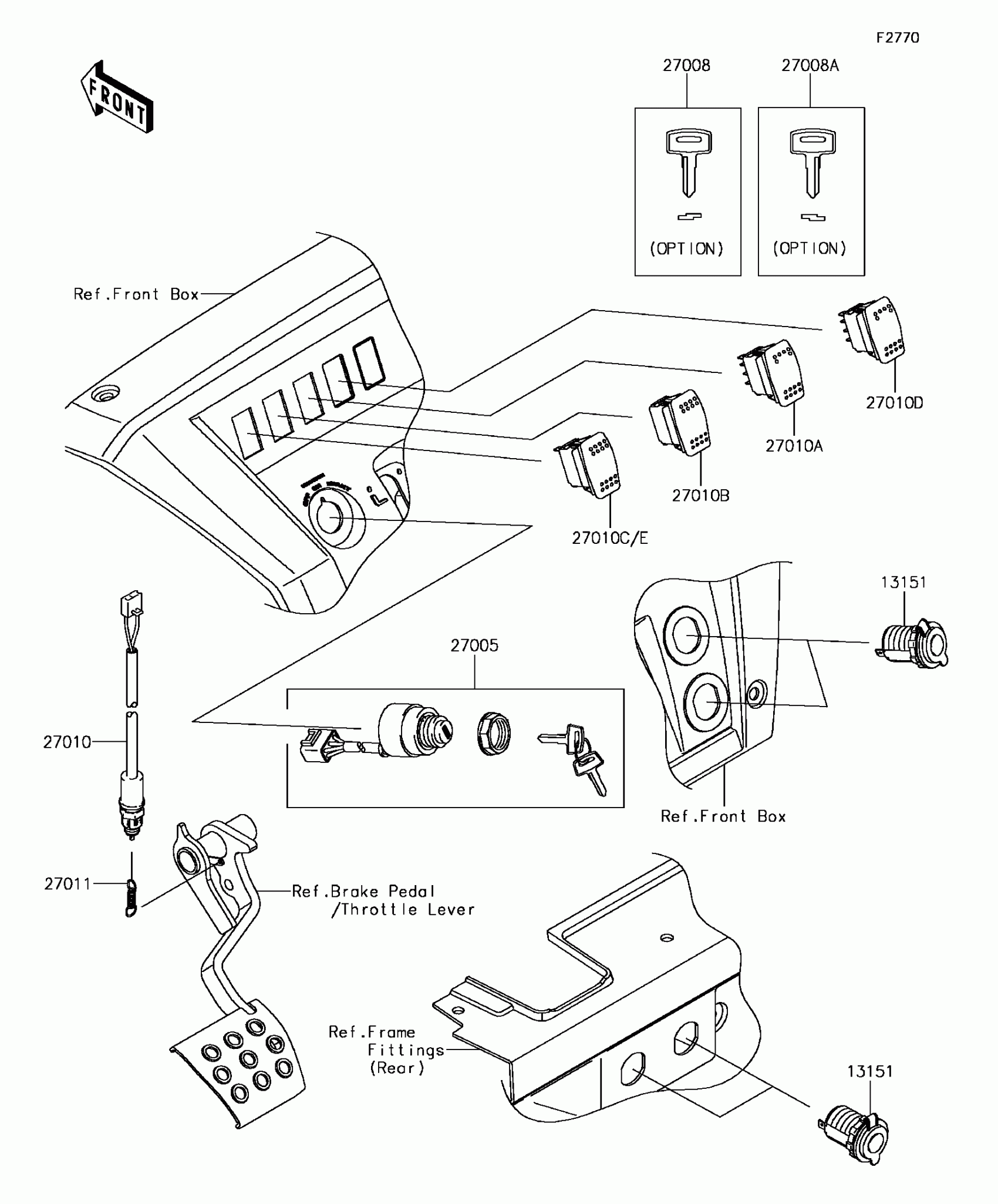

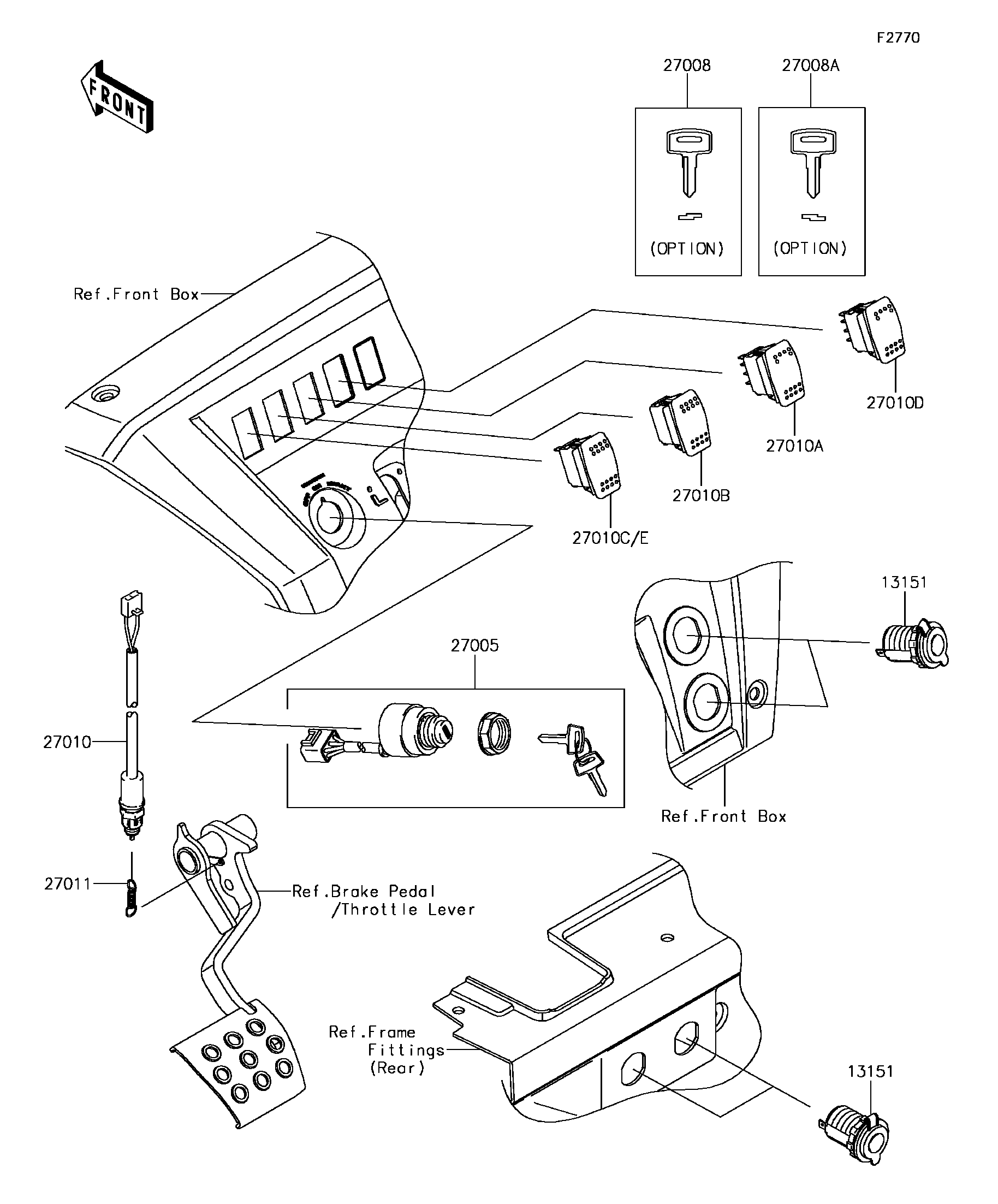

Kawasaki MULE PRO-FXT™ EPS CAMO Ignition Switch Diagram

#

Description

Price

13151

SWITCH-COMP,OUTLET,12V

13151-0556

Unavailable

27005

SWITCH-ASSY-IGNITION

27005-0585

Unavailable

27008

KEY-LOCK,BLANK

27008-1153

Unavailable

27008A

KEY-LOCK,BLANK

27008-1157

Unavailable

27010

SWITCH,BRAKE

27010-0724

Unavailable

27010A

SWITCH,HEAD LAMP

27010-0750

Unavailable

27010B

SWITCH,2WD/4WD

27010-0751

Unavailable

27010D

SWITCH,LED

27010-0763

Unavailable

27010E

SWITCH,DIFF LOCK

27010-0810

Unavailable

27011

SPRING,BRAKE LAMP SWITCH

27011-006

Unavailable
