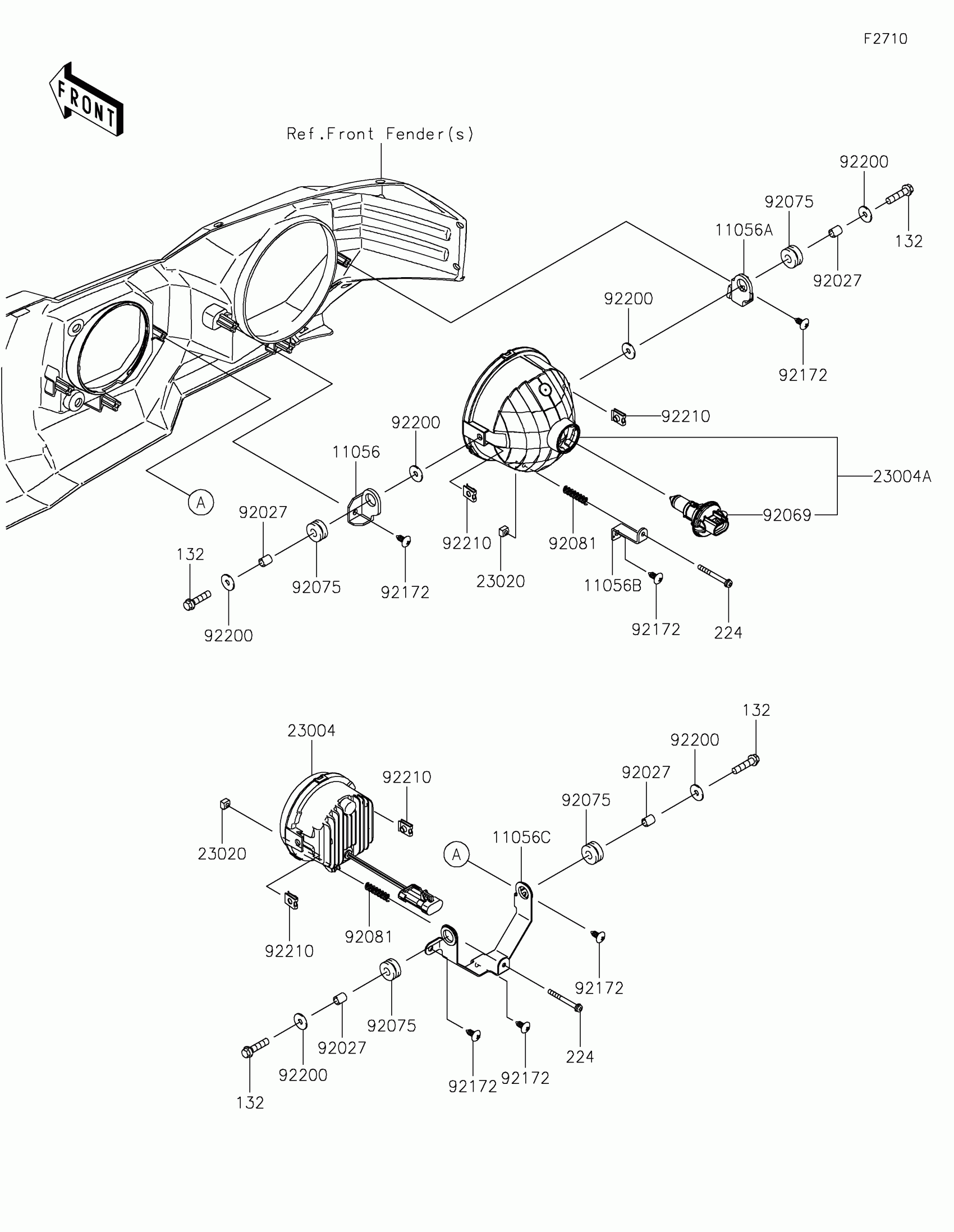

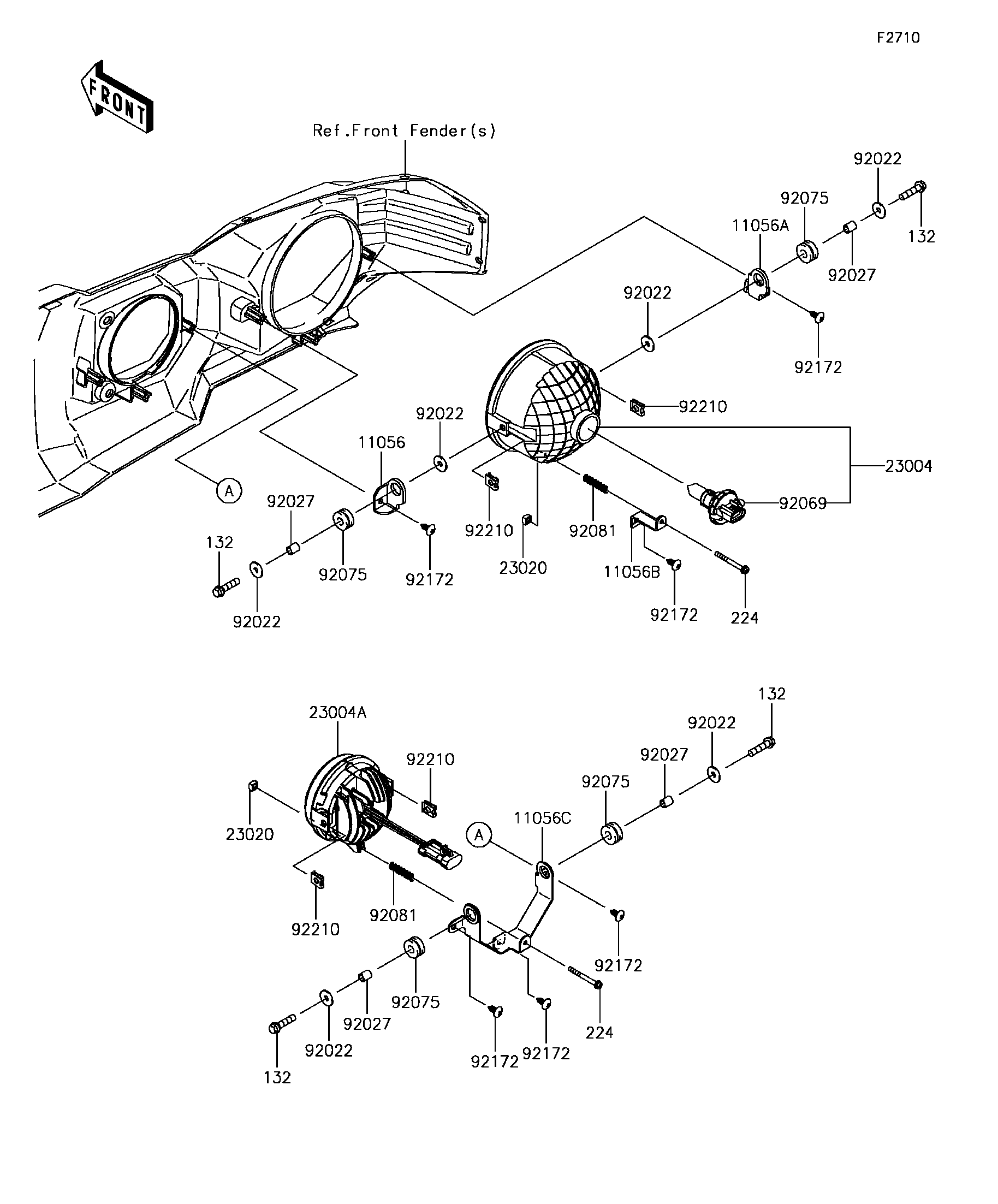

Kawasaki MULE PRO-FXT™ EPS CAMO Headlight(s) Diagram

#

Description

Price

11056

BRACKET,LH

11056-2931

Unavailable

11056A

BRACKET,RH

11056-2932

Unavailable

11056B

BRACKET

11056-2933

Unavailable

11056C

BRACKET,LAMP STAY

11056-3857

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132BA0625

Unavailable

224

SCREW-PAN-WP-CROS

224AA0440

Unavailable

23004

LAMP-HEAD

23004-0339

Unavailable

23004A

LAMP-HEAD,LED

23004-0341

Unavailable

23020

NUT,4MM,FOCUS ADJUST

23020-018

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

Unavailable

92027

COLLAR,6.8X10X12

92027-162

Unavailable

92069

BULB,H13-12-8V

92069-0082

Unavailable

92075

DAMPER,10X24X12

92075-1690

Unavailable

92081

SPRING,FOCUS ADJUST

92081-1896

Unavailable

92172

SCREW,6X16

92172-0284

Unavailable

92210

NUT

92210-1125

Unavailable
