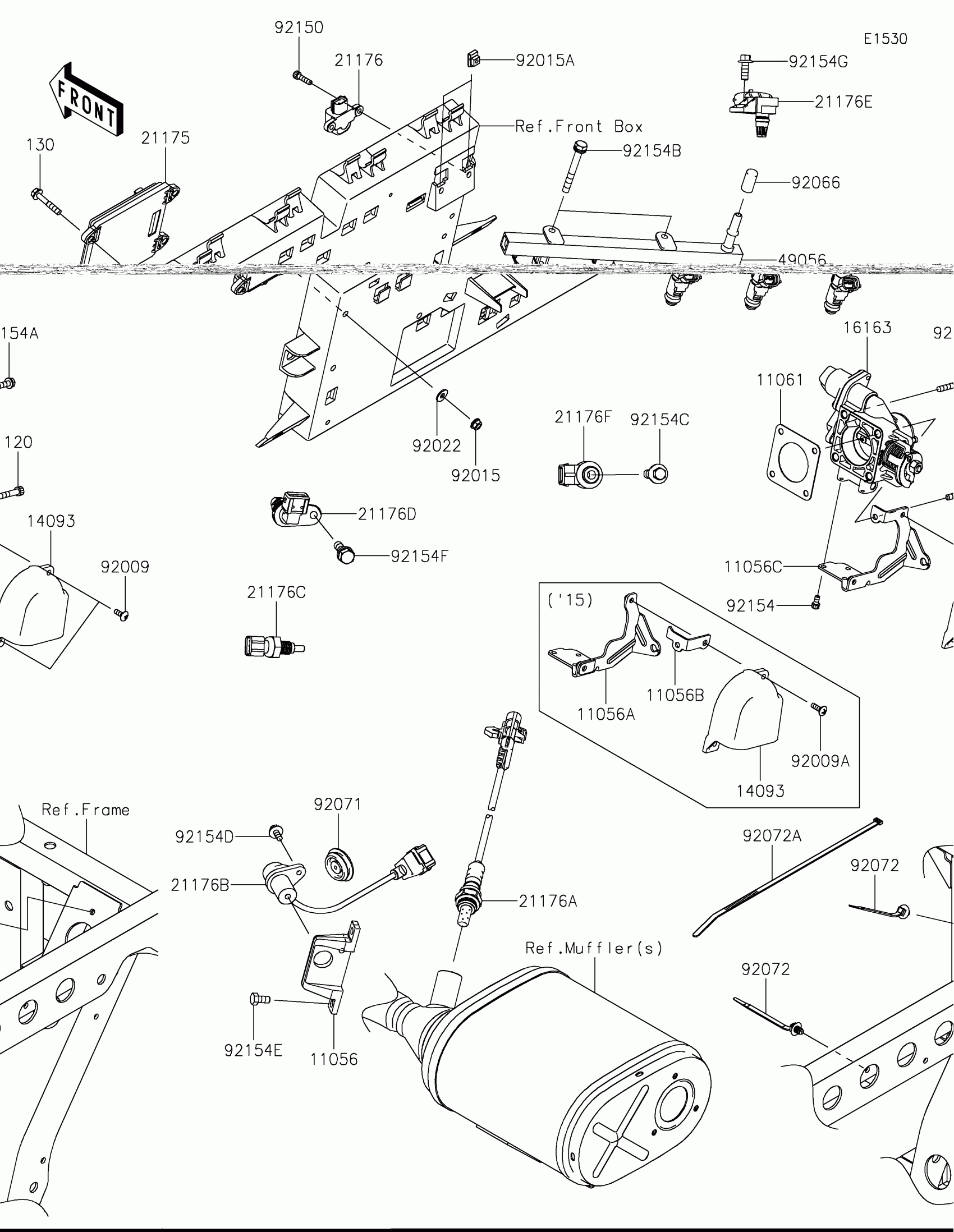

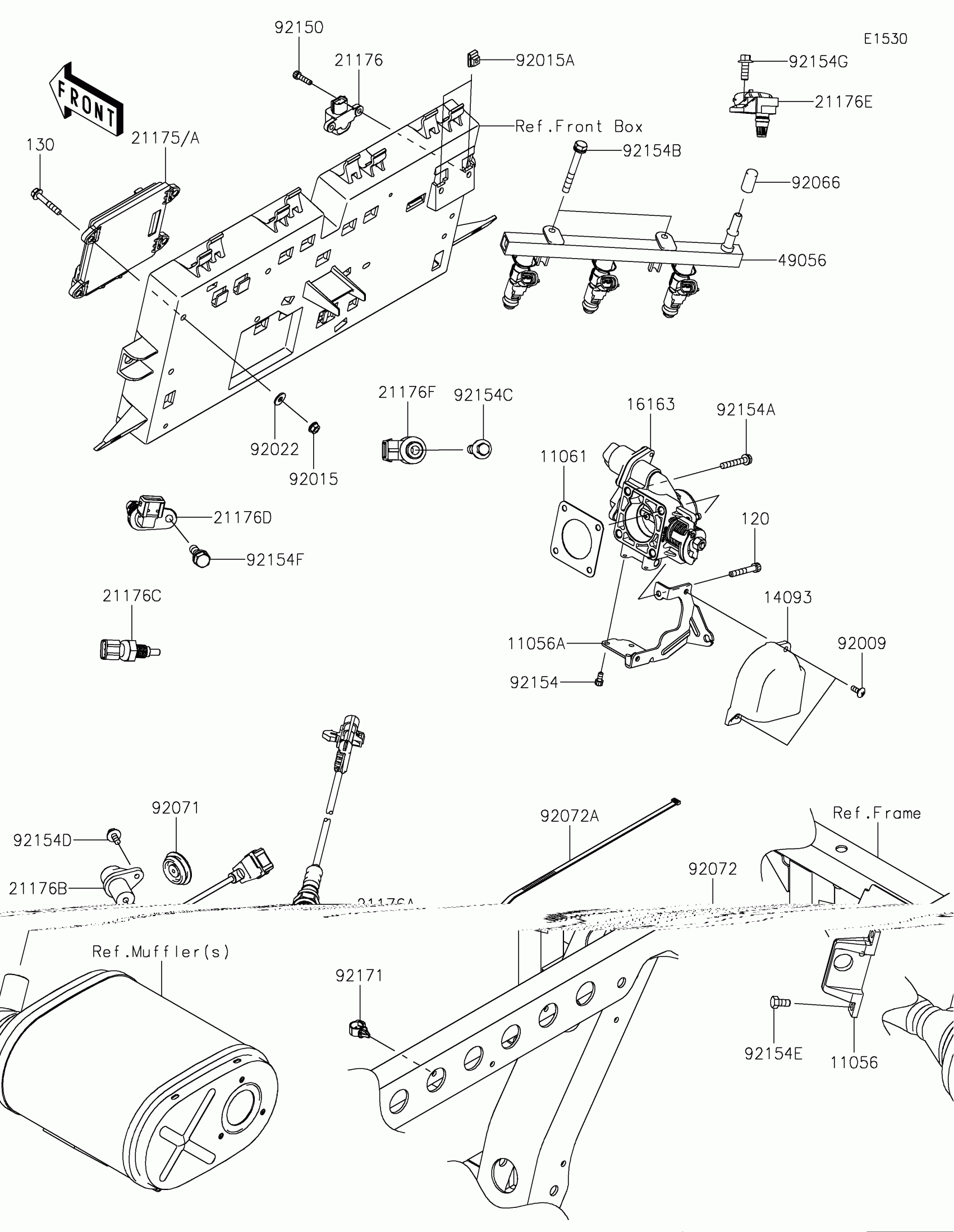

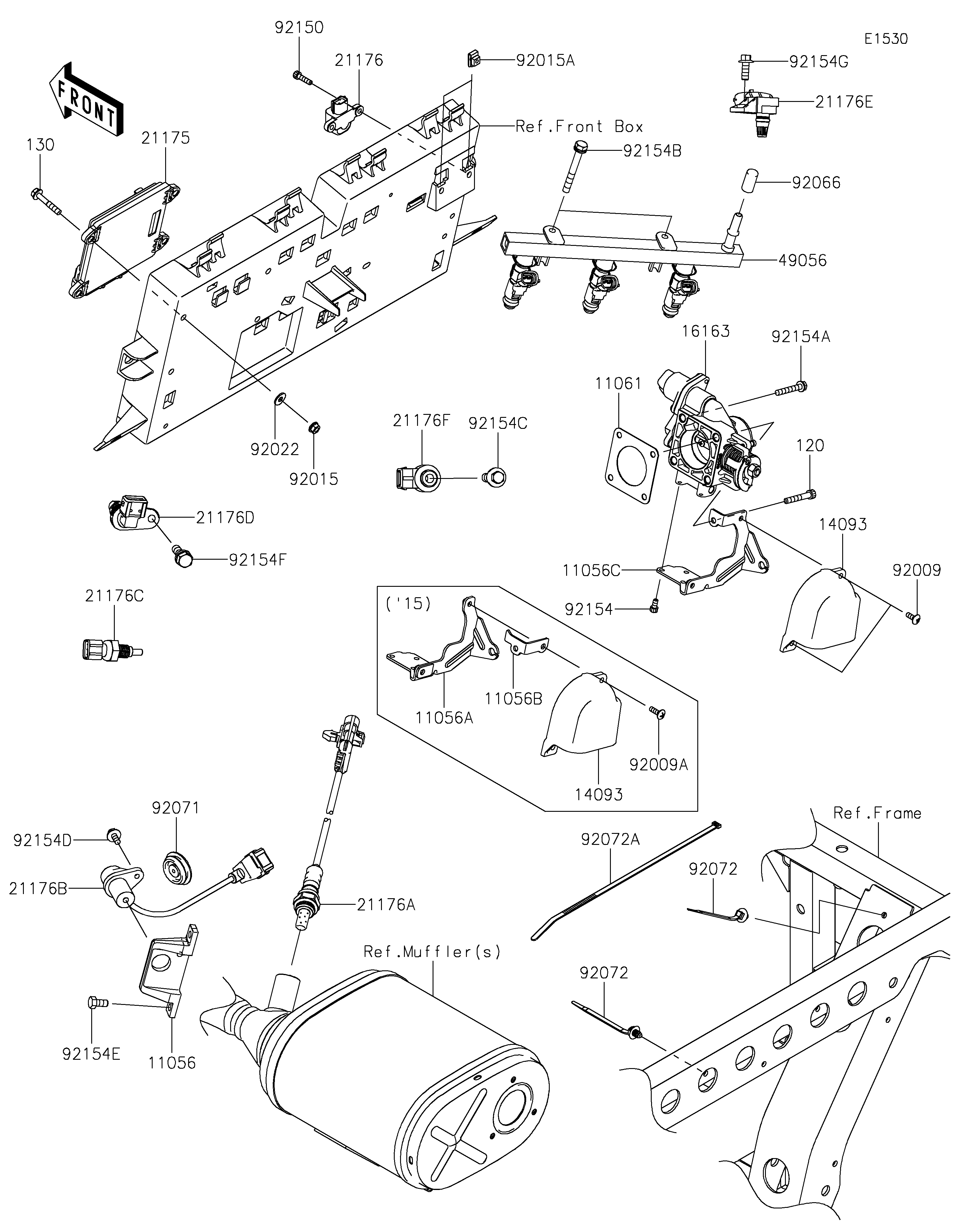

Kawasaki MULE PRO-FXT™ EPS CAMO Fuel Injection Diagram

#

Description

Price

11056

BRACKET,CRANKSHAFT POSITION

11056-2680

Unavailable

11056C

BRACKET,THROTTLE CABLE

11056-7495

Unavailable

11061

GASKET,THROTTLE

11061-0954

Unavailable

120

BOLT-SOCKET,6X40

120CA0640

Unavailable

130

BOLT-FLANGED,6X35

130BA0635

Unavailable

14093

COVER,THROTTLE

14093-0043

Unavailable

16163

THROTTLE-ASSY

16163-0816

Unavailable

21175

CONTROL UNIT-ELECTRONIC,DFI

21175-0893

Unavailable

21176

SENSOR,VEHICLE-DOWN

21176-0026

Unavailable

21176A

SENSOR,OXYGEN

21176-0773

Unavailable

21176B

SENSOR,CRANKSHAFT POSITION

21176-0795

Unavailable

21176C

SENSOR,WATER TEMP

21176-0796

Unavailable

21176D

SENSOR,CAMSHAFT POSITION

21176-0797

Unavailable

21176E

SENSOR,AIR INTAKE TEMP

21176-0798

Unavailable

21176F

SENSOR,EXPLOSION

21176-0799

Unavailable

49056

PIPE-INJECTION

49056-0038

Unavailable

92009

SCREW,5X14,WHITE

92009-1366

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

Unavailable

92015A

NUT,5MM

92015-1627

Unavailable

92022

WASHER

92022-2247

Unavailable

92066

PLUG

92066-0810

Unavailable

92071

GROMMET

92071-0730

Unavailable

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072A

BAND,L=292.1

92072-3509

Unavailable

92150

BOLT,SOCKET,5X20

92150-1019

Unavailable

92154

BOLT,SOCKET,5X10

92154-1396

Unavailable

92154A

BOLT,6X38

92154-1589

Unavailable

92154B

BOLT,6X50

92154-1591

Unavailable

92154C

BOLT,FLANGED,8X30

92154-1592

Unavailable

92154D

BOLT,FLANGED,6X12

92154-1593

Unavailable

92154E

BOLT,6X12

92154-1594

Unavailable

92154F

BOLT,8X16

92154-1595

Unavailable

92154G

BOLT,FLANGED,6X16

92154-1596

Unavailable
