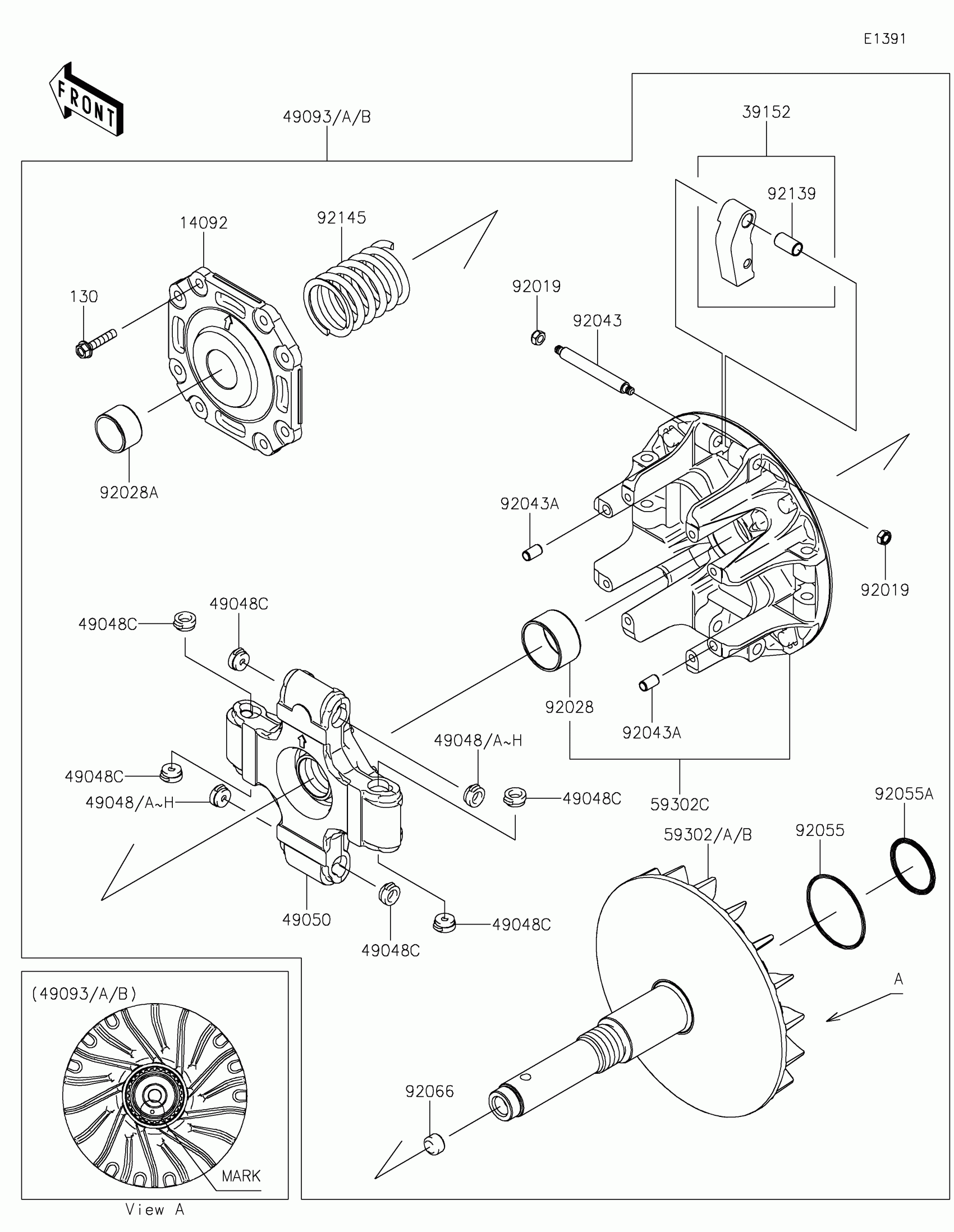

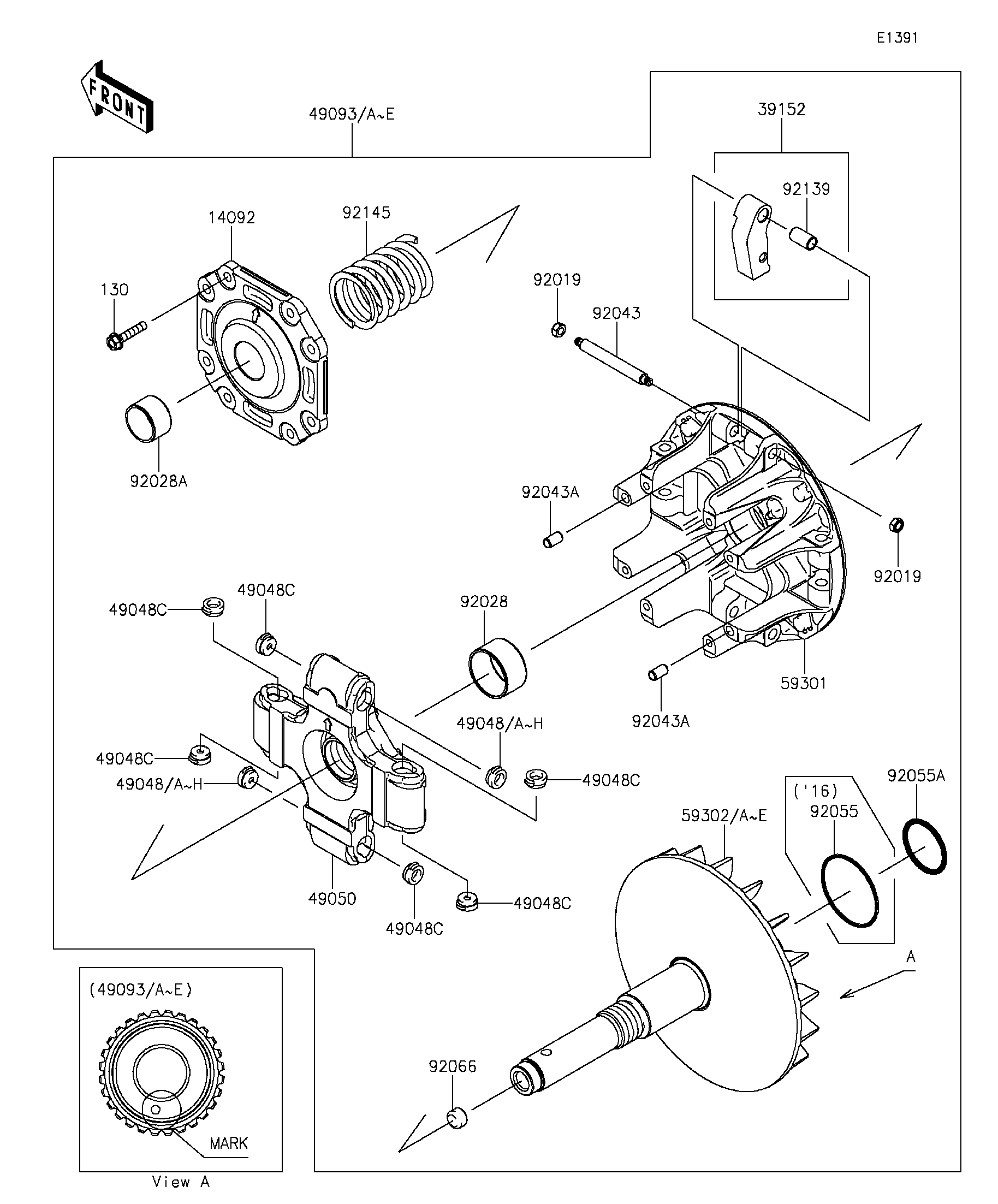

Kawasaki MULE PRO-FXT™ EPS CAMO Drive Converter Diagram

#

Description

Price

130

BOLT-FLANGED,6X30

130CA0630

Unavailable

14092

COVER

14092-1201

Unavailable

39152

WEIGHT-RAMP

39152-0039

Unavailable

49048

SHOE,T=7.2

49048-1087

Unavailable

49048A

SHOE,T=7.3

49048-1088

Unavailable

49048B

SHOE,T=7.4

49048-1089

Unavailable

49048C

SHOE,T=7.5

49048-1090

Unavailable

49048D

SHOE,T=7.6

49048-1091

Unavailable

49048E

SHOE,T=7.7

49048-1092

Unavailable

49048F

SHOE,T=7.8

49048-1093

Unavailable

49048G

SHOE,T=7.9

49048-1094

Unavailable

49048H

SHOE,T=8.0

49048-1095

Unavailable

49050

SPIDER

49050-1083

Unavailable

49093C

CONVERTER-DRIVE,B MARK,WHITE

49093-0071

Unavailable

49093D

CONVERTER-DRIVE,A MARK,BLUE

49093-0072

Unavailable

49093E

CONVERTER-DRIVE,C MARK,YELLOW

49093-0073

Unavailable

59301

SHEAVE-MOVABLE

59301-0025

Unavailable

59302C

SHEAVE-COMP,B MARK,WHITE

59302-0092

Unavailable

59302D

SHEAVE-COMP,A MARK,BLUE

59302-0093

Unavailable

59302E

SHEAVE-COMP,C MARK,YELLOW

59302-0094

Unavailable

92019

NUT,LOCK,6MM

92019-008

Unavailable

92028

BUSHING

92028-1975

Unavailable

92028A

BUSHING

92028-1980

Unavailable

92043

PIN

92043-0809

Unavailable

92043A

PIN,6.2X8X14

92043-1263

Unavailable

92055

RING-O,59.5X2.4

92055-0753

Unavailable

92055A

RING-O,3.5X39.7

92055-0789

Unavailable

92066

PLUG

92066-0784

Unavailable

92139

BUSHING,9X11X19.75

92139-1103

Unavailable

92145

SPRING

92145-1576

Unavailable
