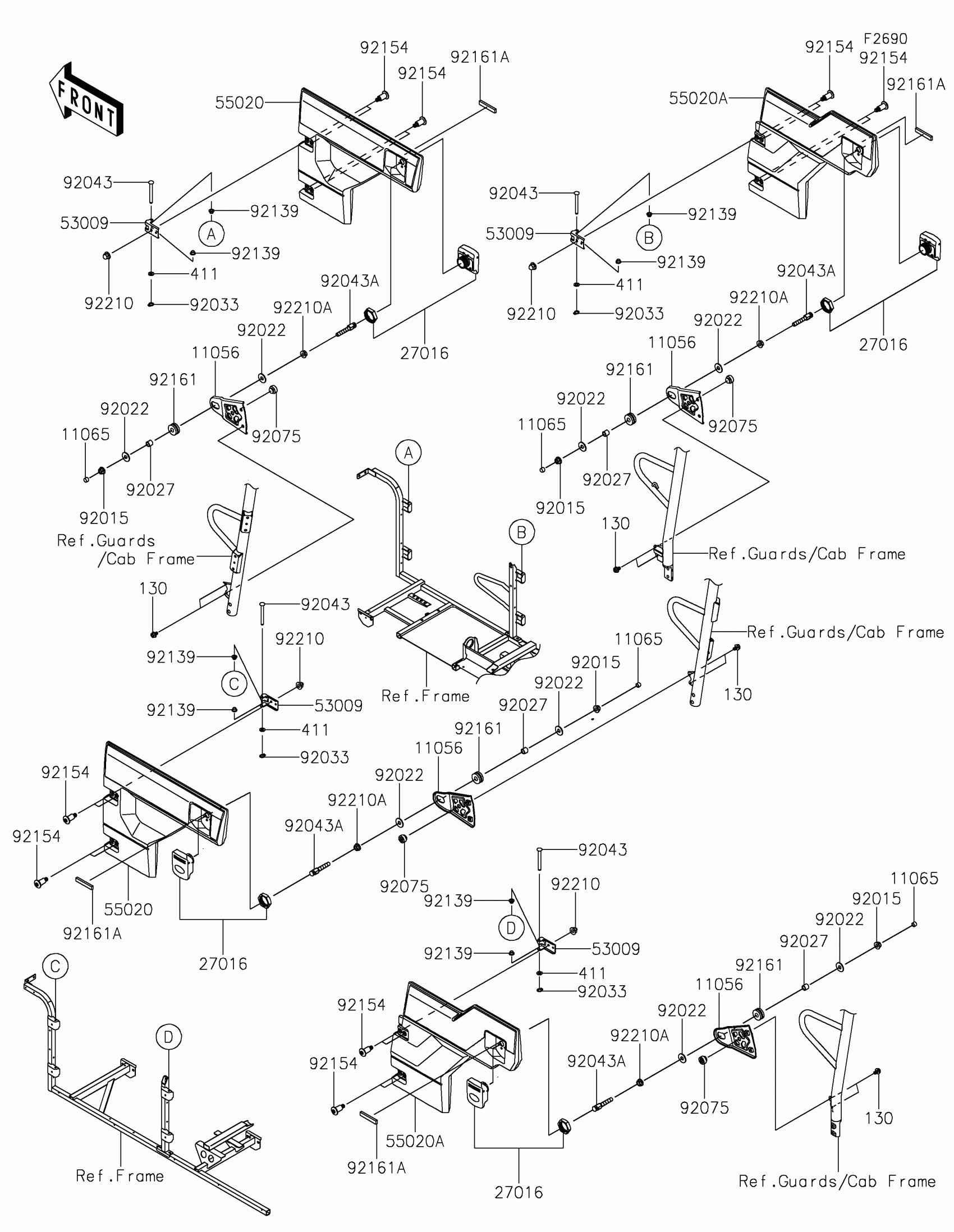

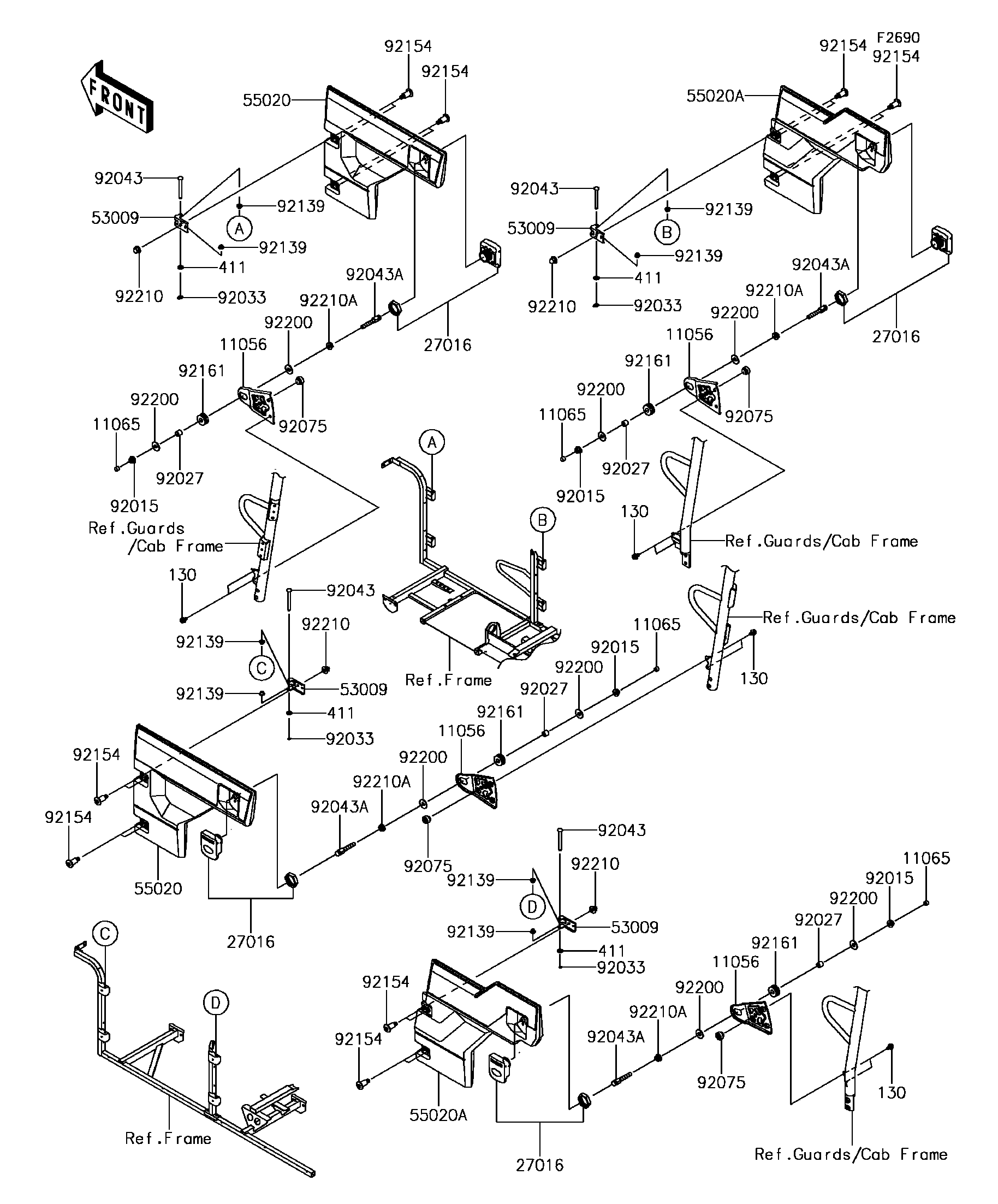

Kawasaki MULE PRO-FXT™ EPS CAMO Door Diagram

#

Description

Price

11056

BRACKET,DOOR GUARD

11056-2856

Unavailable

11065

CAP

11065-7504

Unavailable

130

BOLT-FLANGED,6X10

130BA0610

Unavailable

27016

LOCK-ASSY

27016-0049

Unavailable

411

WASHER-PLAIN,6MM

411AB0600

Unavailable

53009

HINGE

53009-0303

Unavailable

55020

GUARD,FR,F.BLACK

55020-0936-6Z

Unavailable

55020A

GUARD,RR,F.BLACK

55020-0937-6Z

Unavailable

92015

NUT,8MM

92015-1432

Unavailable

92027

COLLAR

92027-102

Unavailable

92033

RING-SNAP

92033-0719

Unavailable

92043

PIN,6X56

92043-0743

Unavailable

92043A

PIN,DOOR LOCK

92043-0788

Unavailable

92075

DAMPER

92075-1598

Unavailable

92139

BUSHING,6X8X6

92139-0709

Unavailable

92154

BOLT,SOCKET,8X30

92154-1369

Unavailable

92161

DAMPER,10X26X11.5

92161-1691

Unavailable

92200

WASHER,8.5X23X1.6

92200-1156

Unavailable

92210

NUT,CAP,8MM

92210-0488

Unavailable

92210A

NUT,FLANGED,8MM

92210-0555

Unavailable
