Chassis Electrical Equipment

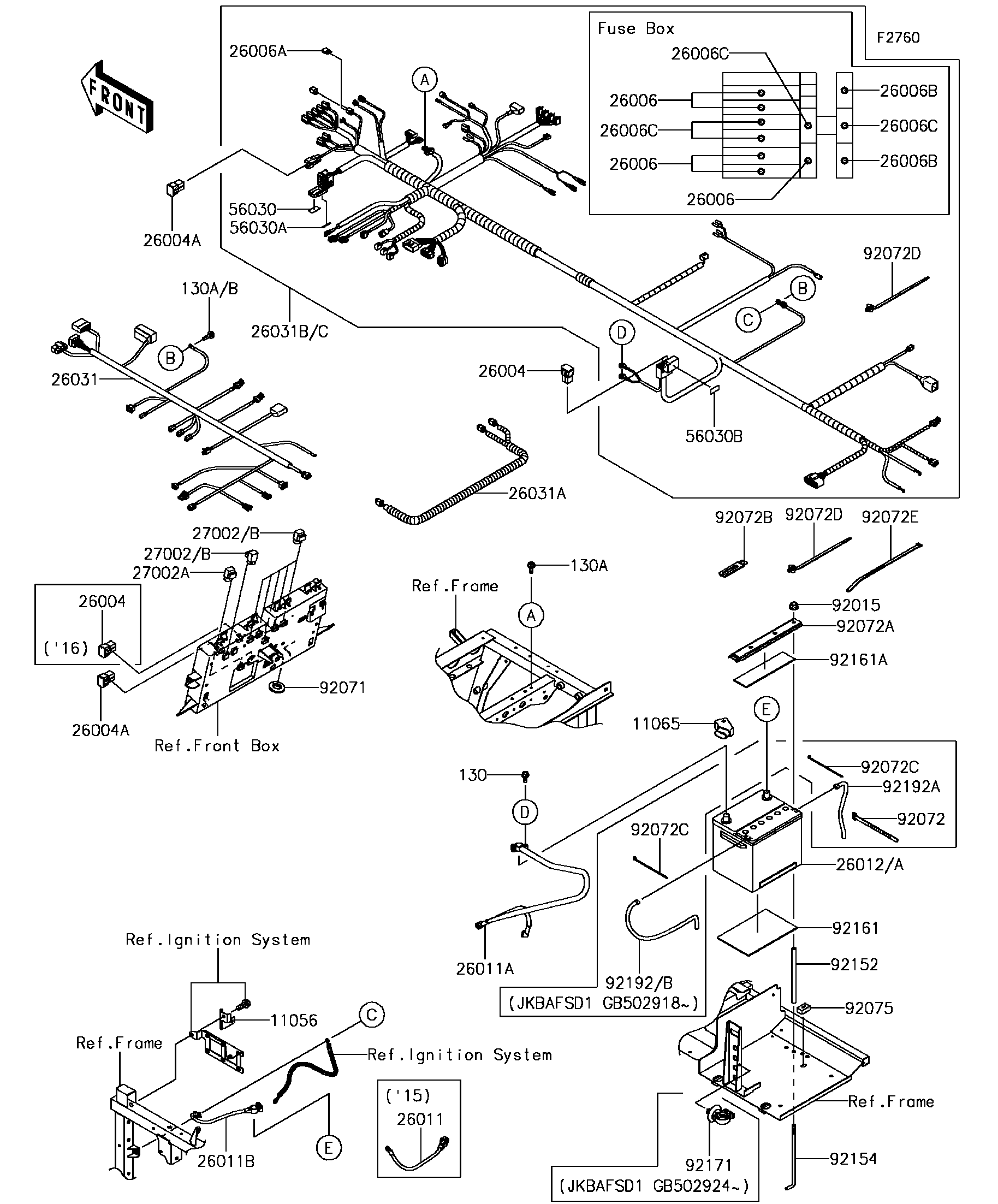

Kawasaki MULE PRO-FXT™ EPS CAMO Chassis Electrical Equipment Diagram
#
11056
BRACKET
11056-4397
Unavailable
11065
CAP
11065-0850
Unavailable
26004
FUSE-ASSY,60A
26004-0024
Unavailable
26004A
FUSE-ASSY,40A
26004-1093
Unavailable
26006
FUSE,MINI BLADE,10A,RED
26006-0009
Unavailable
26006A
FUSE,MINI BLADE,2A,GRAY
26006-0052
Unavailable
26006B
FUSE,MINI BLADE,30A,GREEN
26006-1080
Unavailable
26006C
FUSE,MINI BLADE,20A,YELLOW
26006-3704
Unavailable
26011A
WIRE-LEAD,BATTERY(+)
26011-0851
Unavailable
26011B
WIRE-LEAD,BATTERY(-)
26011-0912
Unavailable
26012
BATTERY,12V 32AH
26012-0619
Unavailable
26012A
BATTERY,WET,(26R)
26012-7501
Unavailable
26031
HARNESS
26031-1644
Unavailable
26031A
HARNESS,SUB
26031-1647
Unavailable
26031C
HARNESS,MAIN
26031-1857
Unavailable
27002A
RELAY-ASSY
27002-0022
Unavailable
27002B
RELAY-ASSY
27002-1062
Unavailable
56030
LABEL,FUSE BOX1
56030-0850
Unavailable
56030A
LABEL,FUSE BOX2
56030-0854
Unavailable
56030B
LABEL,FUSE CASE
56030-0891
Unavailable
92015
NUT,FLANGED,8MM
92015-1406
Unavailable
92071
GROMMET,22X45X9
92071-0729
Unavailable
92072
BAND,L=123
92072-030
Unavailable
92072A
BAND
92072-0767
Unavailable
92072B
BAND
92072-0770
Unavailable
92072C
BAND,92X2.4
92072-0791
Unavailable
92072D
BAND,OS170-FT7(BLACK)
92072-1414
Unavailable
92072E
BAND,L=292.1
92072-3509
Unavailable
92075
DAMPER
92075-099
Unavailable
92152
COLLAR,9.4X12.7X190.8
92152-1852
Unavailable
92154
BOLT,BATTERY
92154-1650
Unavailable
92161
DAMPER
92161-0578
Unavailable
92161A
DAMPER
92161-1753
Unavailable
130
BOLT-FLANGED,6X14
130BA0614
Unavailable
130A
BOLT-FLANGED,6X16
130BA0616
Unavailable
130B
BOLT-FLANGED,6X18
130BA0618
Unavailable
92171
CLAMP
92171-0453
Unavailable
92192
TUBE,BREATHER,7X10X500
92192-1645
Unavailable
92192A
TUBE,BREATHER,7X10X240
92192-1646
Unavailable
92192B
TUBE,BREATHER,7X10X450
92192-1694
Unavailable
