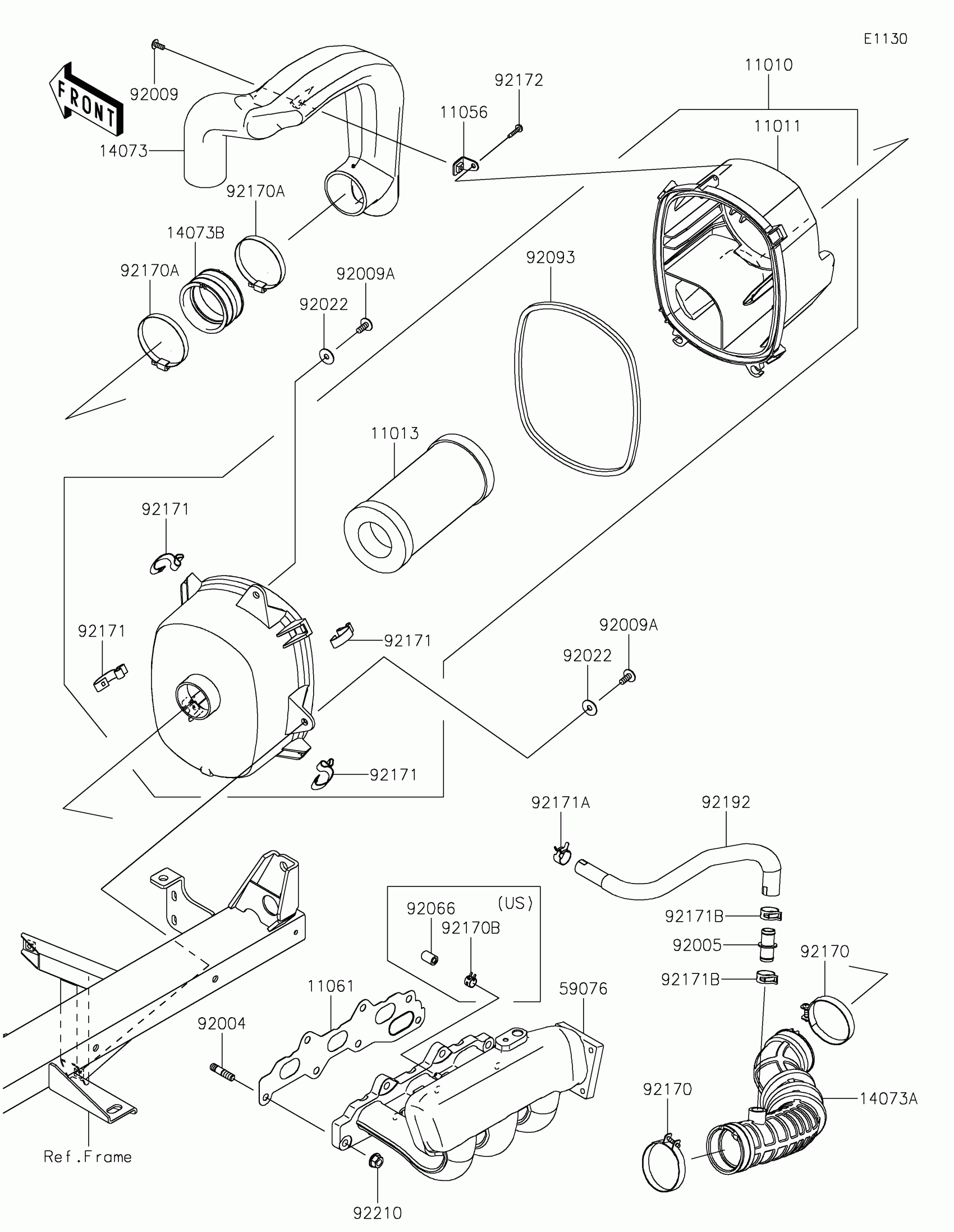

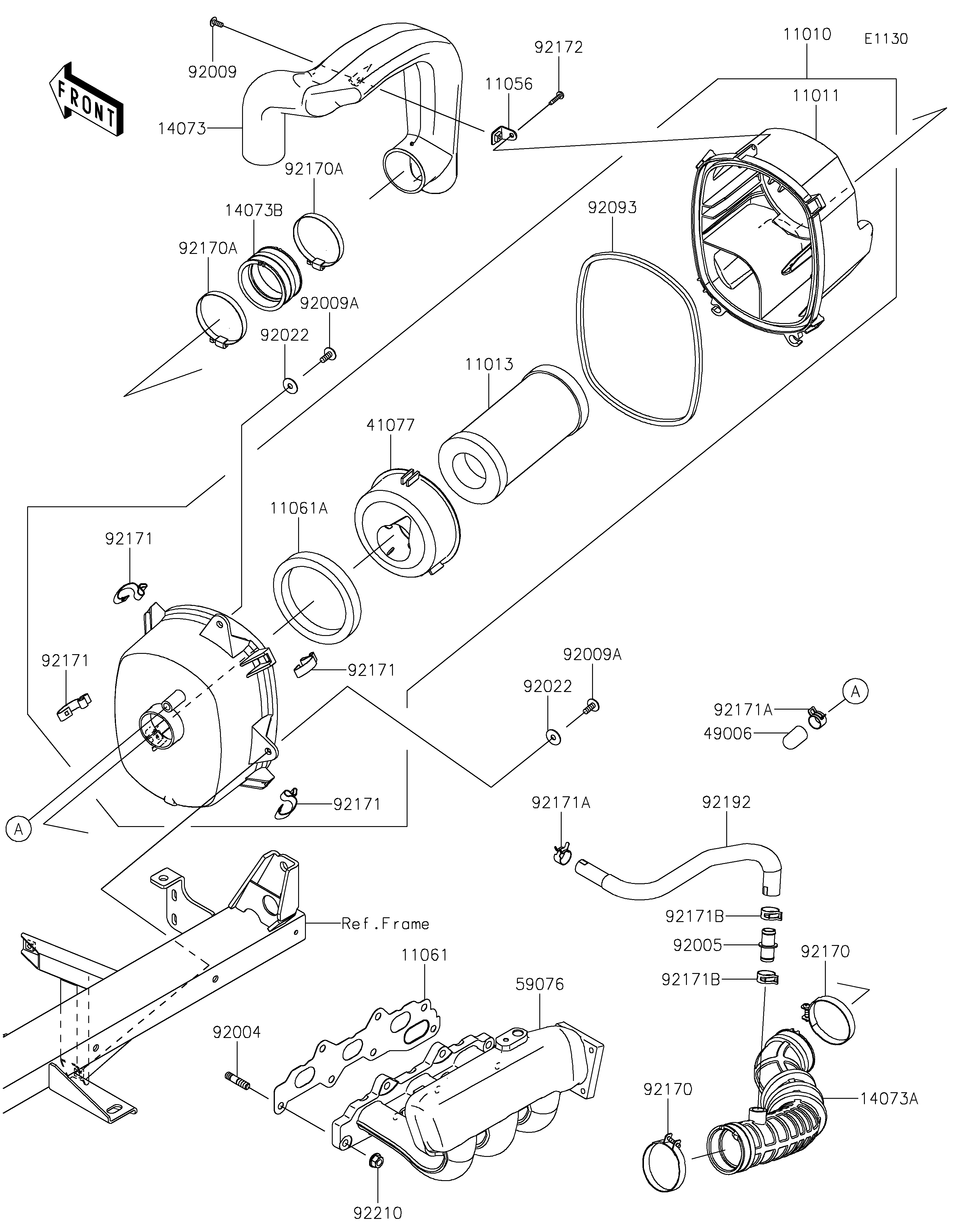

Kawasaki MULE PRO-FXT™ EPS CAMO Air Cleaner Diagram

#

Description

Price

11010

FILTER-ASSY-AIR

11010-0808

Unavailable

11011

CASE-AIR FILTER,UPP

11011-0813

Unavailable

11013

ELEMENT-AIR FILTER

11013-1290

Unavailable

11056

BRACKET,AIR FILTER

11056-3734

Unavailable

11061

GASKET,INTAKE MANIFOLD

11061-0956

Unavailable

11061A

GASKET,ADAPTER

11061-0961

Unavailable

14073

DUCT,INTAKE

14073-0786

Unavailable

14073A

DUCT,INTAKE

14073-0992

Unavailable

14073B

DUCT,JOINT

14073-1775

Unavailable

41077

ADAPTER,ELEMENT

41077-0719

Unavailable

49006

BOOT

49006-0555

Unavailable

59076

MANIFOLD-INTAKE

59076-0007

Unavailable

92004

STUD

92004-0734

Unavailable

92005

FITTING,DUCT-BREATHER TUBE

92005-0992

Unavailable

92009

SCREW,5X12

92009-1154

Unavailable

92009A

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,PLAIN,6.5X20X1

92022-165

Unavailable

92093

SEAL,AIR FILTER

92093-0607

Unavailable

92170

CLAMP

92170-1448

Unavailable

92170A

CLAMP

92170-1764

Unavailable

92171

CLAMP

92171-0225

Unavailable

92171A

CLAMP

92171-0533

Unavailable

92171B

CLAMP,18.8MM

92171-2056

Unavailable

92172

SCREW,TAPPING,5X20

92172-0009

Unavailable

92192

TUBE,BREATHER

92192-2365

Unavailable

92210

NUT

92210-0944

Unavailable
