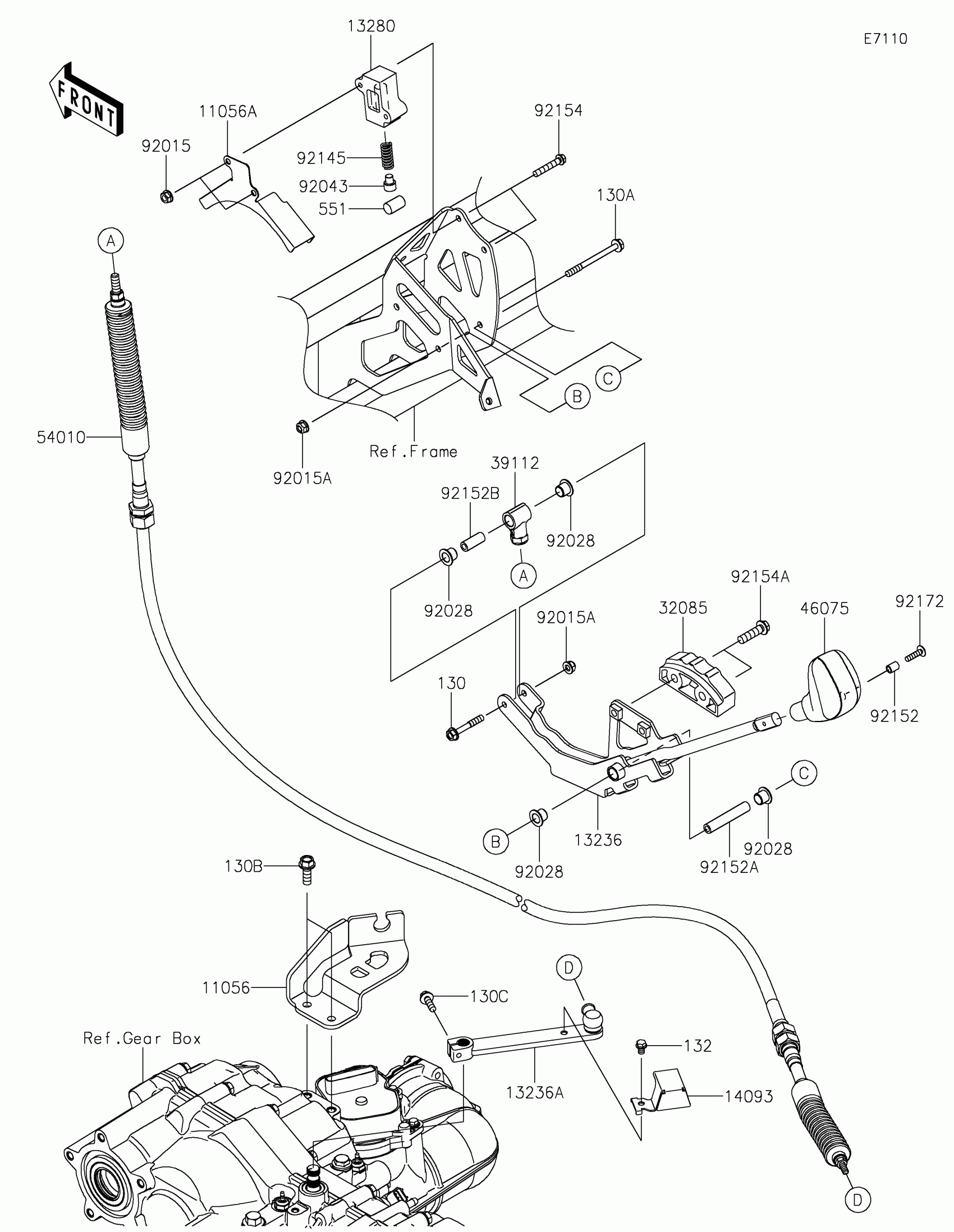

Kawasaki MULE PRO-FXT™ 1000 LE CAMO Control Diagram

Description

Price

11056

BRACKET,T/M SIDE

11056-2946

$13.34

11056A

BRACKET,DUST COVER

11056-7274

$8.39

13236

LEVER-COMP,SHIFT

13236-0748

$84.49

13236A

LEVER-COMP

13236-0854

$87.70

13280

HOLDER

13280-0776

$33.87

14093

COVER

14093-1362

$3.44

32085

STOPPER

32085-0748

$5.88

39112

RODEND-TIE

39112-0020

$25.83

46075

GRIP

46075-0569

$21.39

54010

CABLE,SHIFT

54010-0601

$244.65

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92028

BUSHING

92028-1507

$3.99

92043

92043-0790

$4.15

92145

SPRING

92145-1578

$4.32

92152

COLLAR,5.6X8X10.5

92152-1545

$1.89

92152A

COLLAR,6X10X56.5

92152-1823

$7.92

92152B

COLLAR,6X10X25

92152-1854

$4.98

92154

BOLT,FLANGED,6X35

92154-1544

$0.93

92154A

BOLT,FLANGED,8X30

92154-1907

$2.05

92172

SCREW,5X20

92172-2081

$0.66

130

BOLT-FLANGED,6X40

130BA0640

$0.97

130A

BOLT-FLANGED,6X70

130BA0670

$3.51

130B

BOLT-FLANGED,8X22

130BA0822

$2.59

130C

BOLT-FLANGED,6X20

130CA0620

$1.22

132

BOLT-FLANGED-SMALL,6X8

132BA0608

$1.77

551

PIN-DOWEL,12X20

551R1220

$7.47
