2026 Kawasaki Mule PRO-FXT™ 1000 LE Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2026 Kawasaki Mule PRO-FXT™ 1000 LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

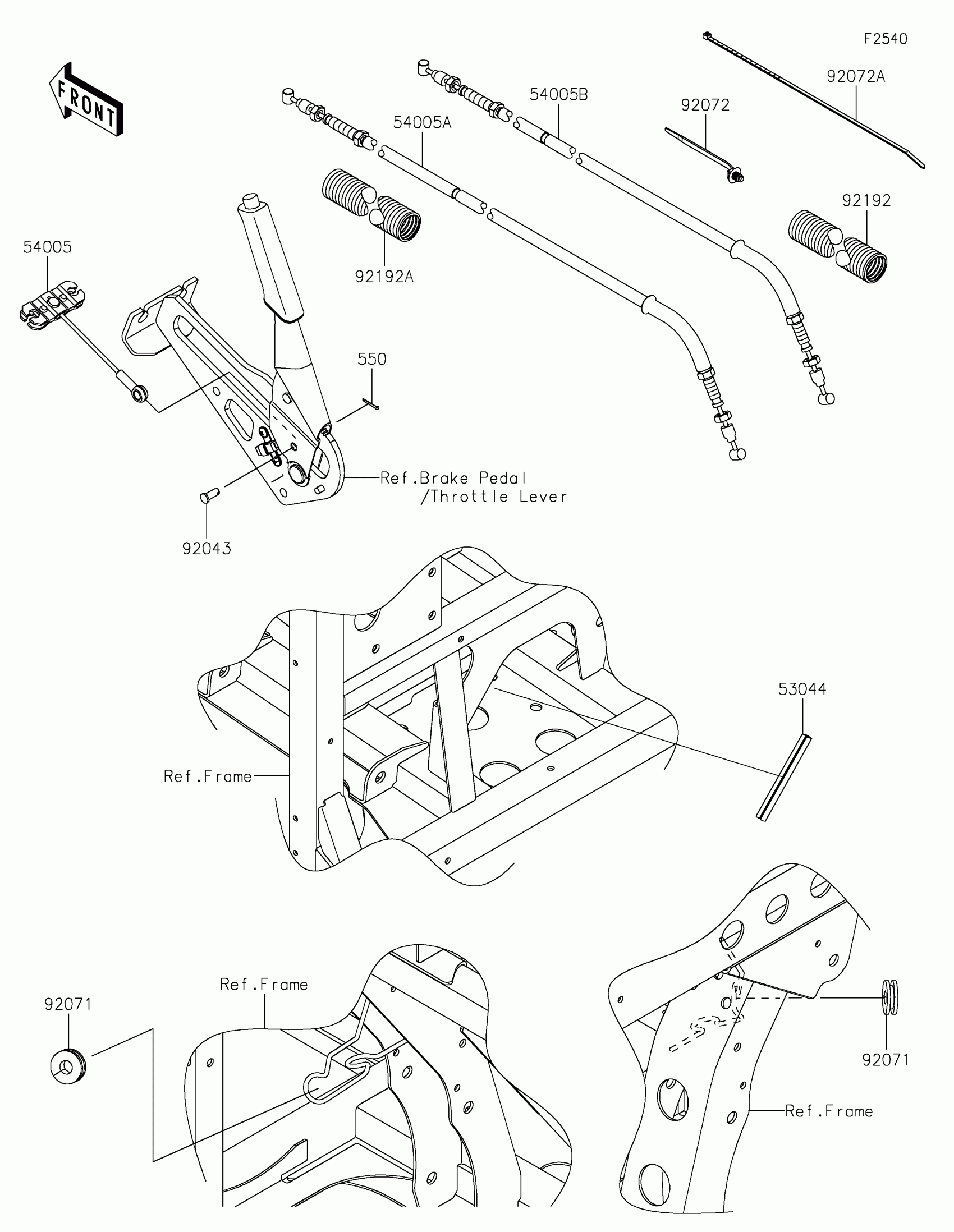

2026 Kawasaki Mule PRO-FXT™ 1000 LE Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

53044

TRIM,L=111

53044-7502

1

$6.11

In stock

54005

CABLE-BRAKE,PARKING,FR

54005-0035

1
Out of stock

54005A

CABLE-BRAKE,PARKING,LH

54005-0039

1
Out of stock

54005B

CABLE-BRAKE,PARKING,RH

54005-0040

1
Out of stock

92043

PIN

92043-1039

1
Out of stock

92071

GROMMET

92071-0029

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92072A

BAND,L=292.1

92072-3509

1
Out of stock

92192

TUBE,CONVOLUTED,25.1X30X260

92192-1363

1
Out of stock

92192A

TUBE,CONVOLUTED,25.1X30X210

92192-1391

1
Out of stock

550

PIN-COTTER,2.5X18

550AA2518

1
Out of stock
