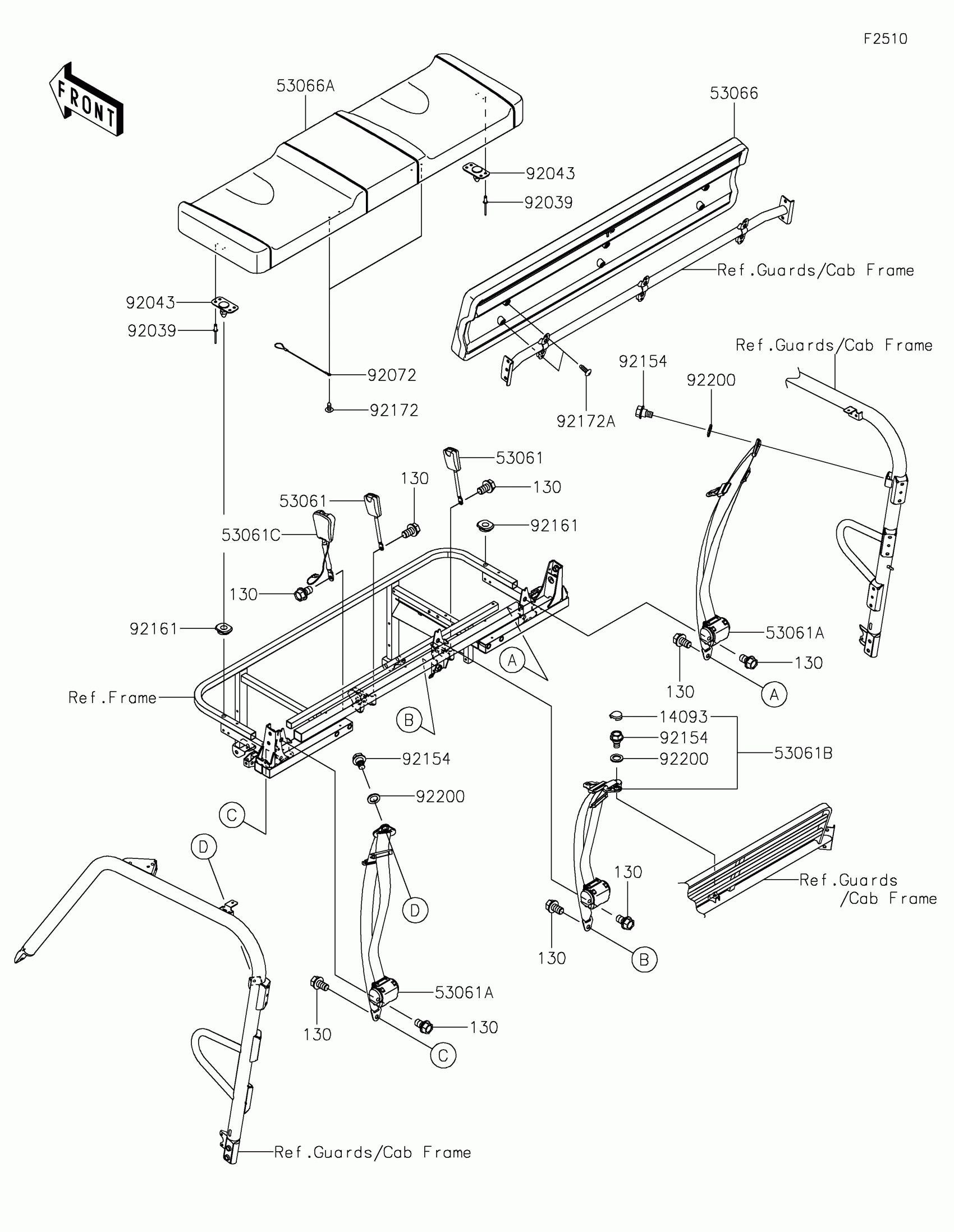

Kawasaki MULE PRO-FXR™ Seat Diagram

Description

Price

130

BOLT-FLANGED,12X20

130BA1220

$2.84

53061

BELT-SEAT,BUCKLE

53061-0039

$27.99

53061A

BELT-SEAT,BUCKLE,SW.

53061-0338

$49.05

53061B

BELT-SEAT,FR,LH&RH

53061-0340

$147.35

53061C

BELT-SEAT,MIDDLE

53061-0341

$147.35

53066

SEAT-ASSY,A.SILVER+BLK

53066-0563-61P

$697.22

53066A

SEAT-ASSY,A.SILVER+BLK+BLK/WHT

53066-0564-55X

$380.93

92039

RIVET

92039-0747

$1.77

92043

92043-0859

$1.39

92072

BAND

92072-0769

$3.41

92154

BOLT,FLANGED,10X19.5

92154-1959

$5.66

92161

DAMPER,10.5X30X8.2

92161-1784

$0.74

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,TAPPING,6X20

92172-0488

$2.11

92200

WASHER,16X22X2

92200-1798

$1.20
