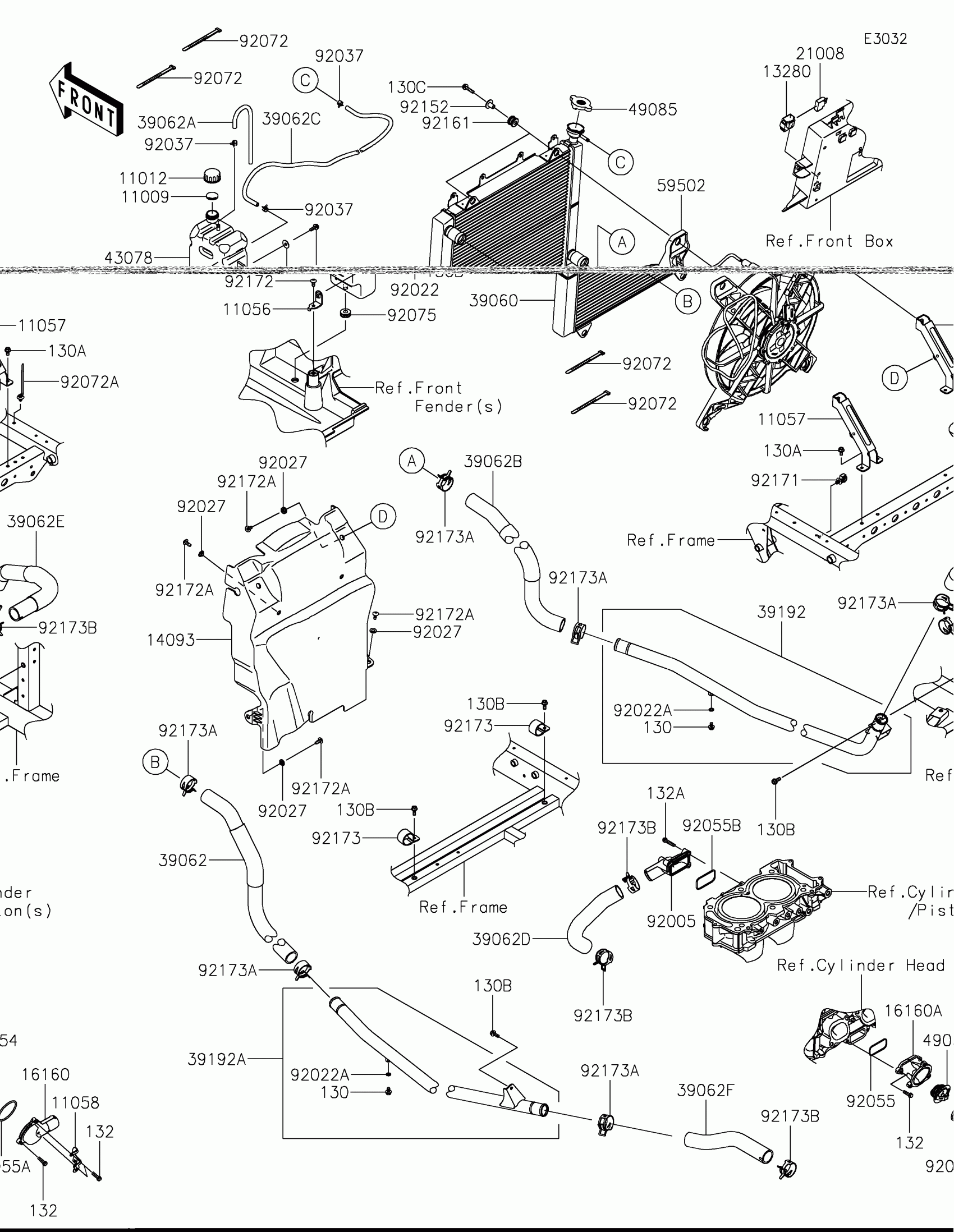

Kawasaki MULE PRO-FXR™ 1000 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11056

BRACKET,RESERVOIR

11056-3856

$13.34

11057

BRACKET,RADIATOR

11057-0774

$16.39

11058

BRACKET

11058-0325

$3.63

13280

HOLDER,BREAKER

13280-0898

$1.71

14093

COVER,RADIATOR BACK

14093-1391

$21.98

16160

BODY,THERMOSTAT COVER

16160-0839

$52.16

16160A

BODY,THERMOSTAT

16160-0840

$69.79

21008

BREAKER,RAD.FAN,20A

21008-0015

$28.51

39060

RADIATOR

39060-0753

$607.83

39062

HOSE-COOLING,RADIATOR IN

39062-0650

$86.65

39062A

HOSE-COOLING,OVER FLOW

39062-0696

$5.61

39062B

HOSE-COOLING,RADIATOR OUT

39062-0777

$66.42

39062C

HOSE-COOLING,RAD-RESERVOIR

39062-0985

$16.29

39062D

HOSE-COOLING,W/PUMP-ENGINE

39062-0987

$37.43

39062E

HOSE-COOLING,ENGINE OUT

39062-0988

$74.84

39062F

HOSE-COOLING,ENGINE IN

39062-0989

$35.95

39192

PIPE-WATER,RH

39192-0633

$69.98

39192A

PIPE-WATER,LH

39192-0716

$29.64

43078

RESERVOIR

43078-0571

$39.99

49054

THERMOSTAT

49054-0015

$36.22

49085

CAP-ASSY-PRESSURE

49085-0019

$46.44

59502

FAN-ASSY

59502-0641

$334.28

92005

FITTING

92005-1445

$48.15

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92022A

WASHER,6.2X11X1

92022-304

$2.76

92027

COLLAR,L=4.6

92027-1168

$3.81

92037

CLAMP,TUBE

92037-1461

$2.93

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

$2.84

92055A

RING-O,53.5X2.6

92055-0831

$5.99

92055B

RING-O,FITTING

92055-0923

$4.84

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92075

DAMPER

92075-1185

$4.17

92152

COLLAR

92152-2844

$8.32

92161

DAMPER

92161-2436

$4.15

92171

CLAMP

92171-0453

$3.12

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,TAPPING,6X16

92172-0739

$0.73

92173

CLAMP

92173-1204

$3.49

92173A

CLAMP,28.6MM

92173-1205

$4.34

92173B

CLAMP,33.4MM

92173-1981

$4.04

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X12

130BA0612

$1.25

130B

BOLT-FLANGED,6X16

130BA0616

$0.97

130C

BOLT-FLANGED,6X25

130BA0625

$0.97

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87
