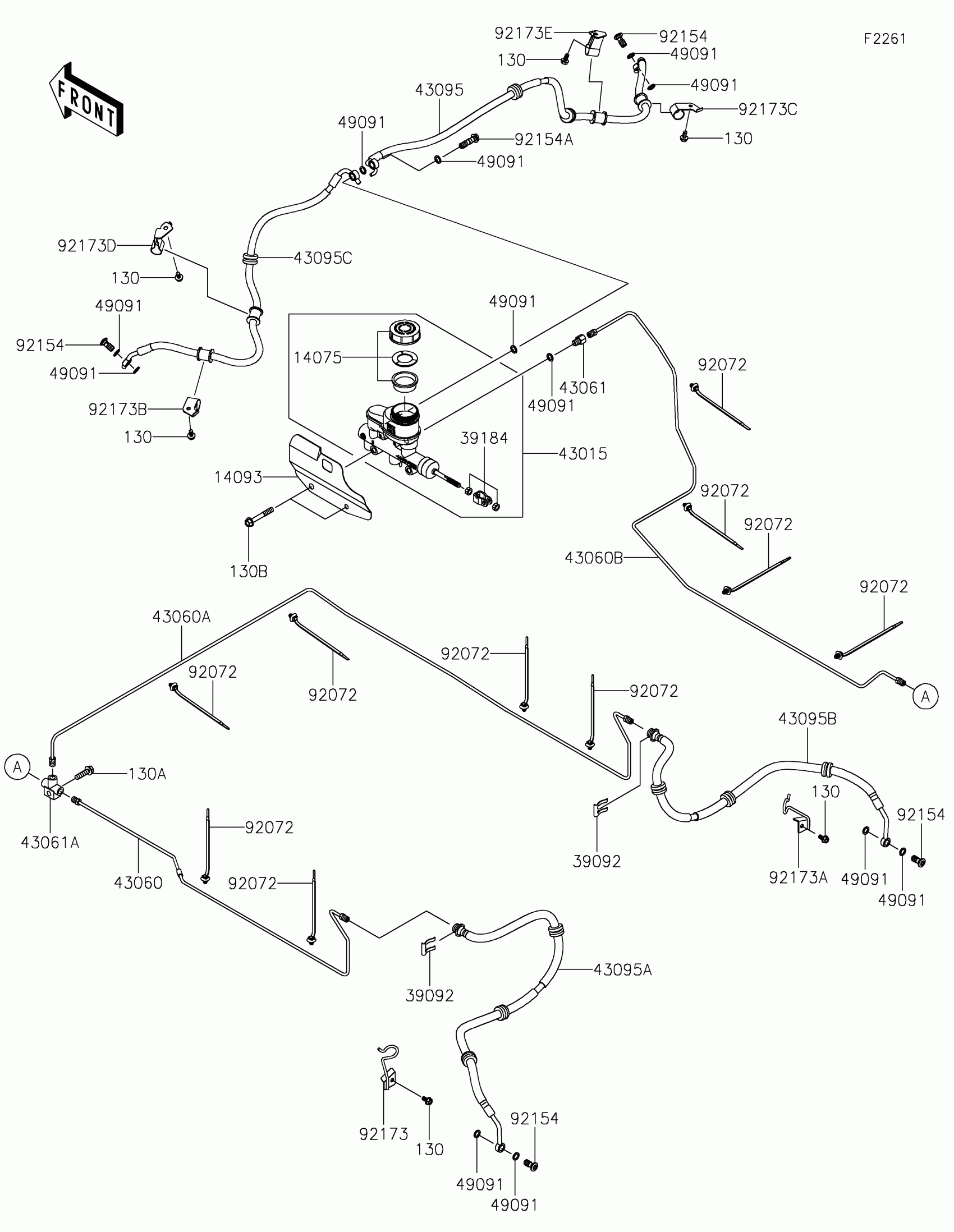

Find the part on the Master Cylinder diagram for your 2026 Kawasaki Mule Pro-FXR™ 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule Pro-FXR™ 1000 Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14075

CAP-ASSY

14075-0038

1

$42.90

In stock

14093

COVER,M/C BODY

14093-1357

1

$4.34

In stock

39092

PIN-HAIR

39092-1052

1

$6.33

In stock

39184

BRACKET-ASSY

39184-0031

1

$21.27

In stock

43015

1

$194.50

In stock

43060

PIPE-BRAKE,LH

43060-0318

1

$26.64

In stock

43060A

PIPE-BRAKE,RH

43060-0319

1

$38.14

In stock

43060B

PIPE-BRAKE,MAIN

43060-0331

1

$44.45

In stock

43061

JOINT-BRAKE,M/C

43061-0302

1

$33.87

In stock

43061A

JOINT-BRAKE

43061-1063

1

$36.46

In stock

43095

HOSE-BRAKE,1068.5MM

43095-1883

1

$49.56

In stock

43095A

HOSE-BRAKE,857MM

43095-1884

1

$39.33

In stock

43095B

HOSE-BRAKE,777MM

43095-1885

1

$38.31

In stock

43095C

HOSE-BRAKE,738.5MM

43095-1886

1

$43.20

In stock

49091

1

$1.81

In stock

92072

1

$2.97

In stock

92154

1

$6.43

In stock

92154A

BOLT,OIL,10X34.5

92154-1398

1

$7.47

In stock

92173

CLAMP

92173-1217

1

$8.46

In stock

92173A

CLAMP

92173-1218

1

$8.46

In stock

92173B

CLAMP

92173-2571

1

$5.86

In stock

92173C

CLAMP

92173-2572

1

$5.86

In stock

92173D

CLAMP

92173-2651

1

$3.49

In stock

92173E

CLAMP

92173-2652

1

$3.49

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,8X30

130BA0830

1

$1.68

In stock

130B

BOLT-FLANGED,8X55

130BA0855

1

$1.90

In stock
