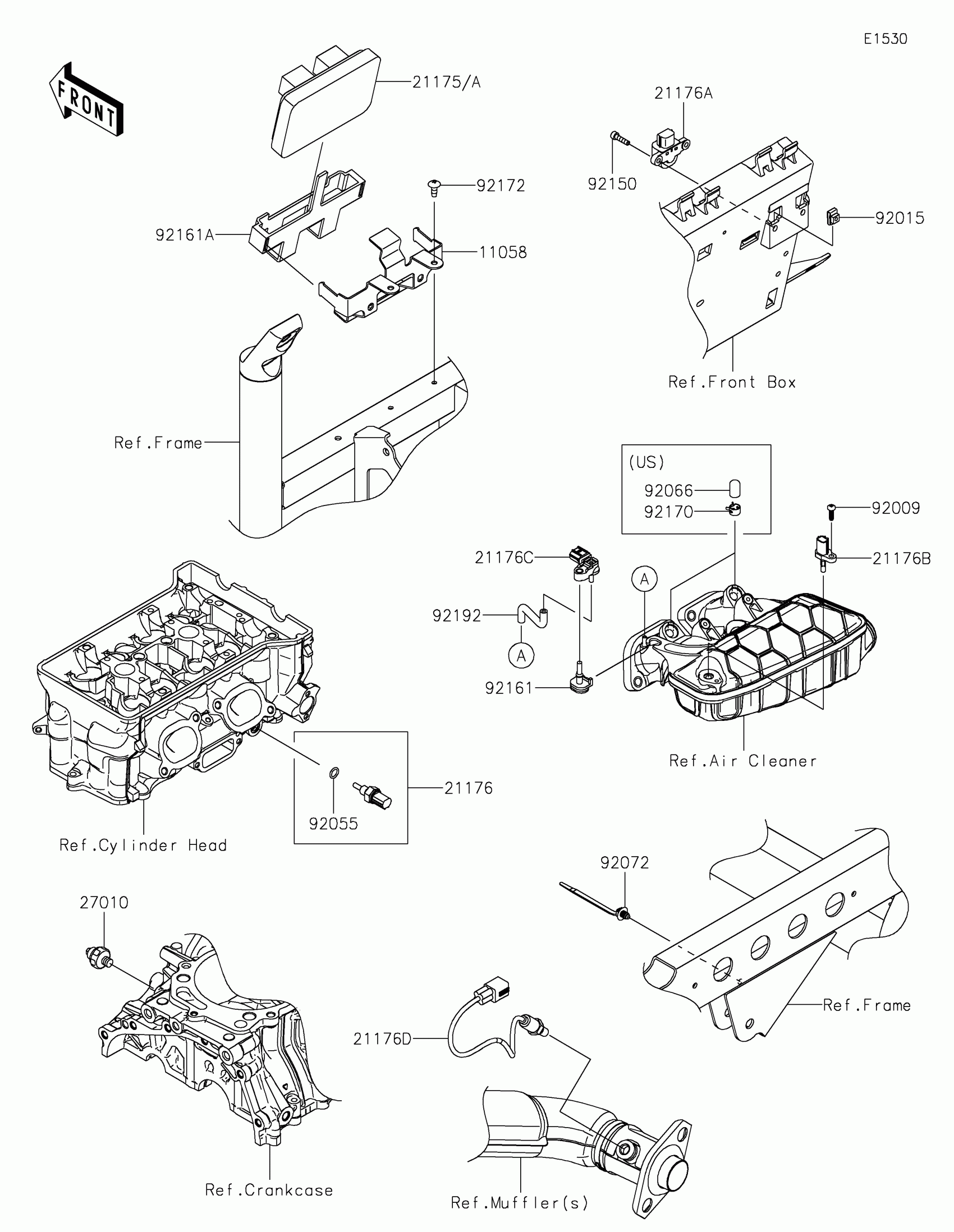

Find the part on the Fuel Injection diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule PRO-FXR™ 1000 Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,ECU

11058-0323

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC

21175-1881

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC

21175-1882

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176B

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176C

SENSOR,PRESSURE

21176-0906

1
Out of stock

21176D

SENSOR,OXYGEN

21176-1192

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1264

1
Out of stock

92015

NUT,5MM

92015-1627

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92066

PLUG

92066-0862

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92150

BOLT,SOCKET,5X20

92150-1019

1
Out of stock

92161

DAMPER

92161-0673

1
Out of stock

92161A

DAMPER,ECU

92161-2481

1
Out of stock

92170

CLAMP

92170-2043

1

$1.08

In stock

92172

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92192

TUBE

92192-2633

1
Out of stock
