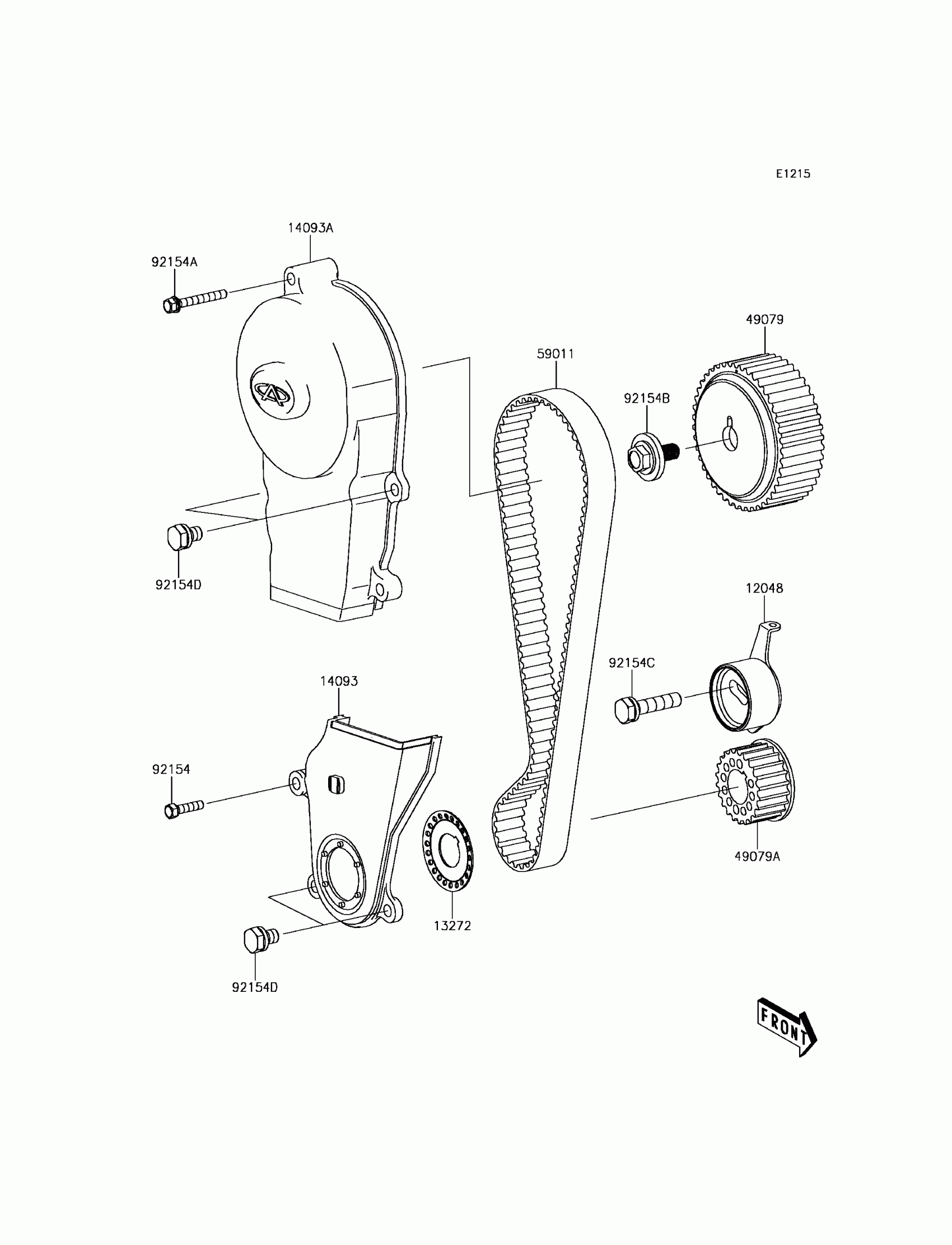

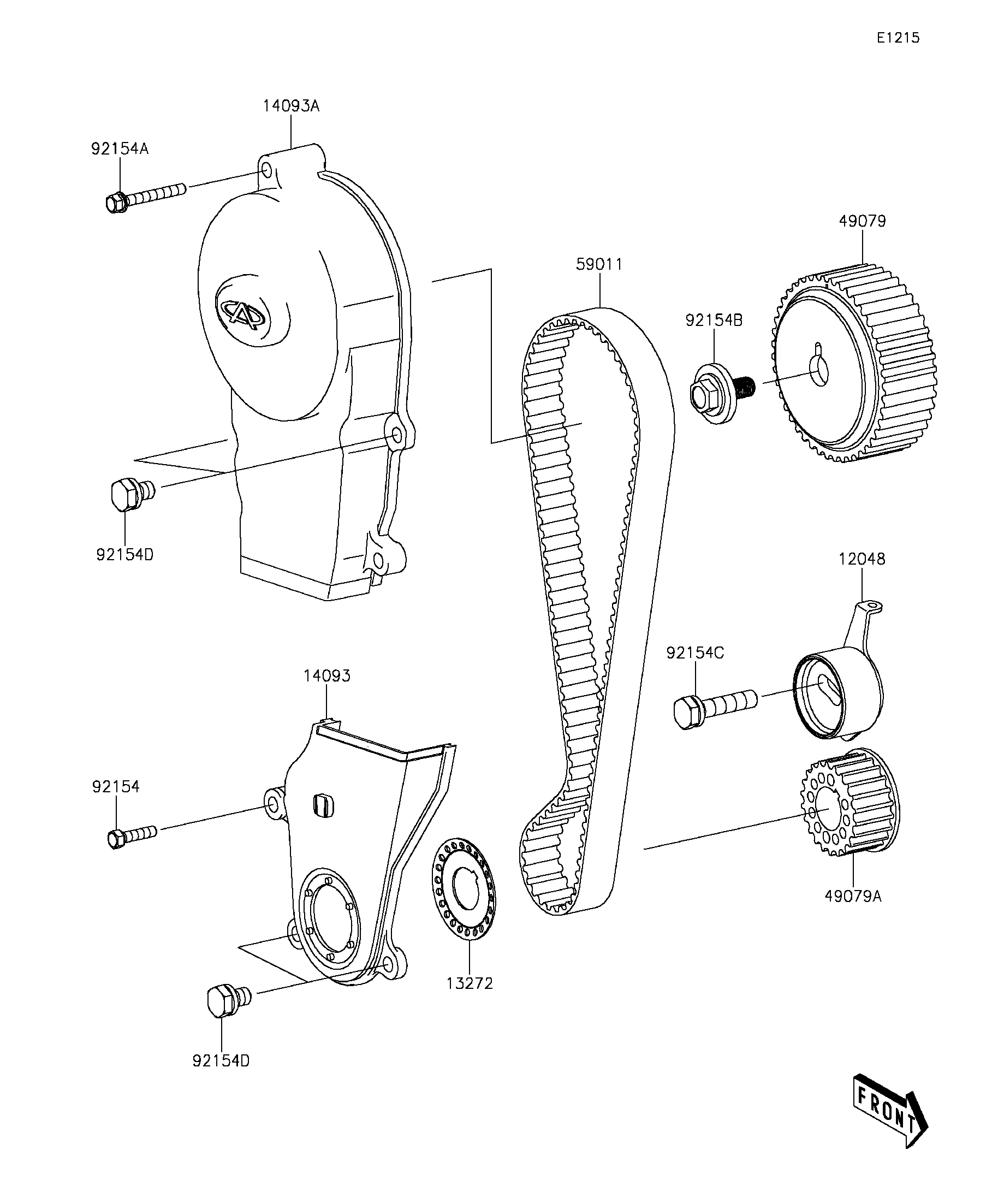

Kawasaki MULE PRO-FX™ Timing Belt Diagram

#

Description

Price

12048

TENSIONER-ASSY

12048-0093

Unavailable

13272

PLATE,TIMING BELT

13272-1872

Unavailable

14093

COVER,TIMING BELT,LWR

14093-0200

Unavailable

14093A

COVER,TIMING BELT,UPP

14093-0201

Unavailable

49079

PULLEY-BELT,CAMSHAFT

49079-0023

Unavailable

49079A

PULLEY-BELT,CRANKSHAFT

49079-0024

Unavailable

59011

BELT,TIMING

59011-0042

Unavailable

92154

BOLT,6X25

92154-1583

Unavailable

92154A

BOLT,6X50

92154-1591

Unavailable

92154B

BOLT,FLANGED

92154-1614

Unavailable

92154C

BOLT,10X45

92154-1615

Unavailable

92154D

BOLT,6X16

92154-1617

Unavailable
