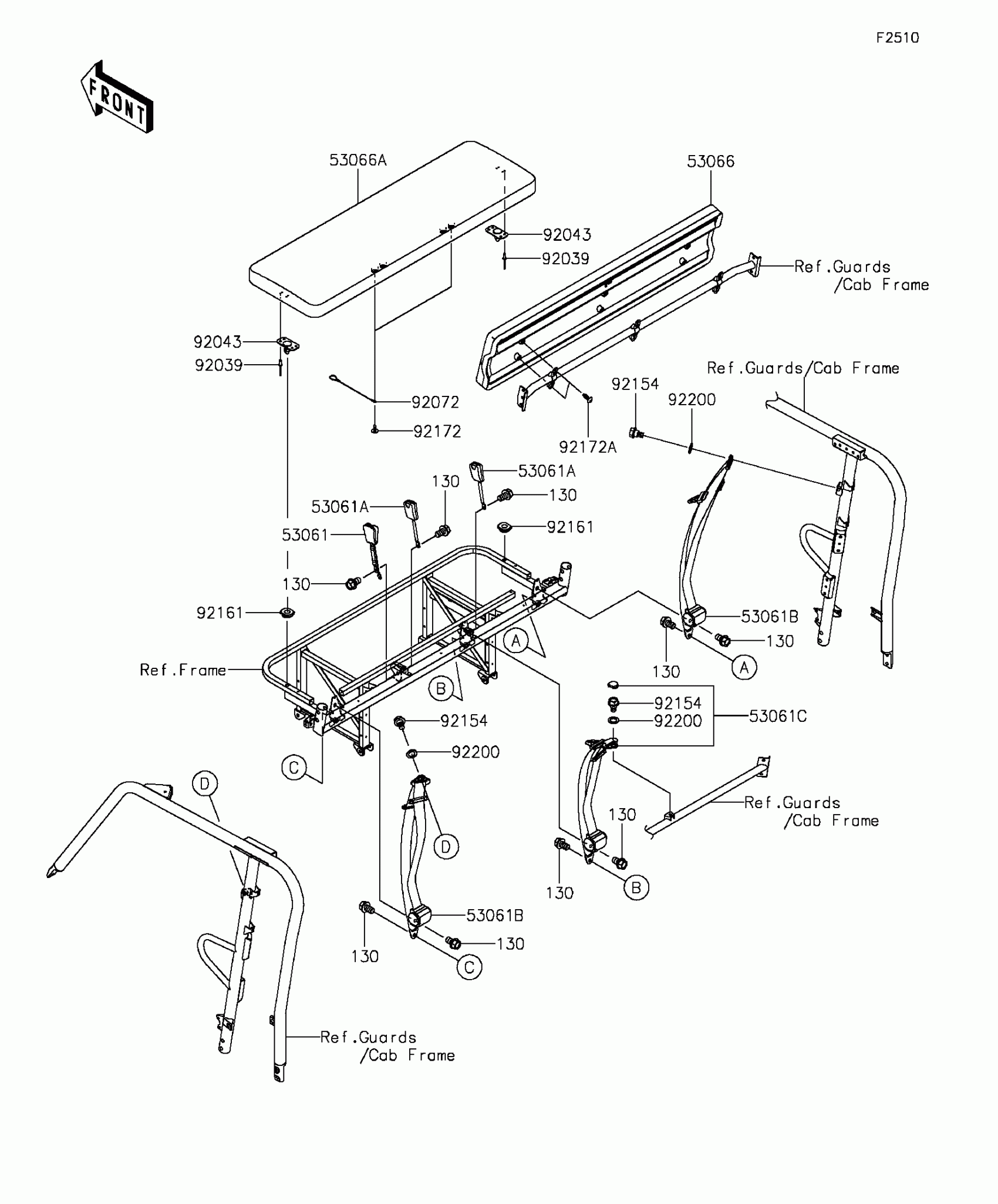

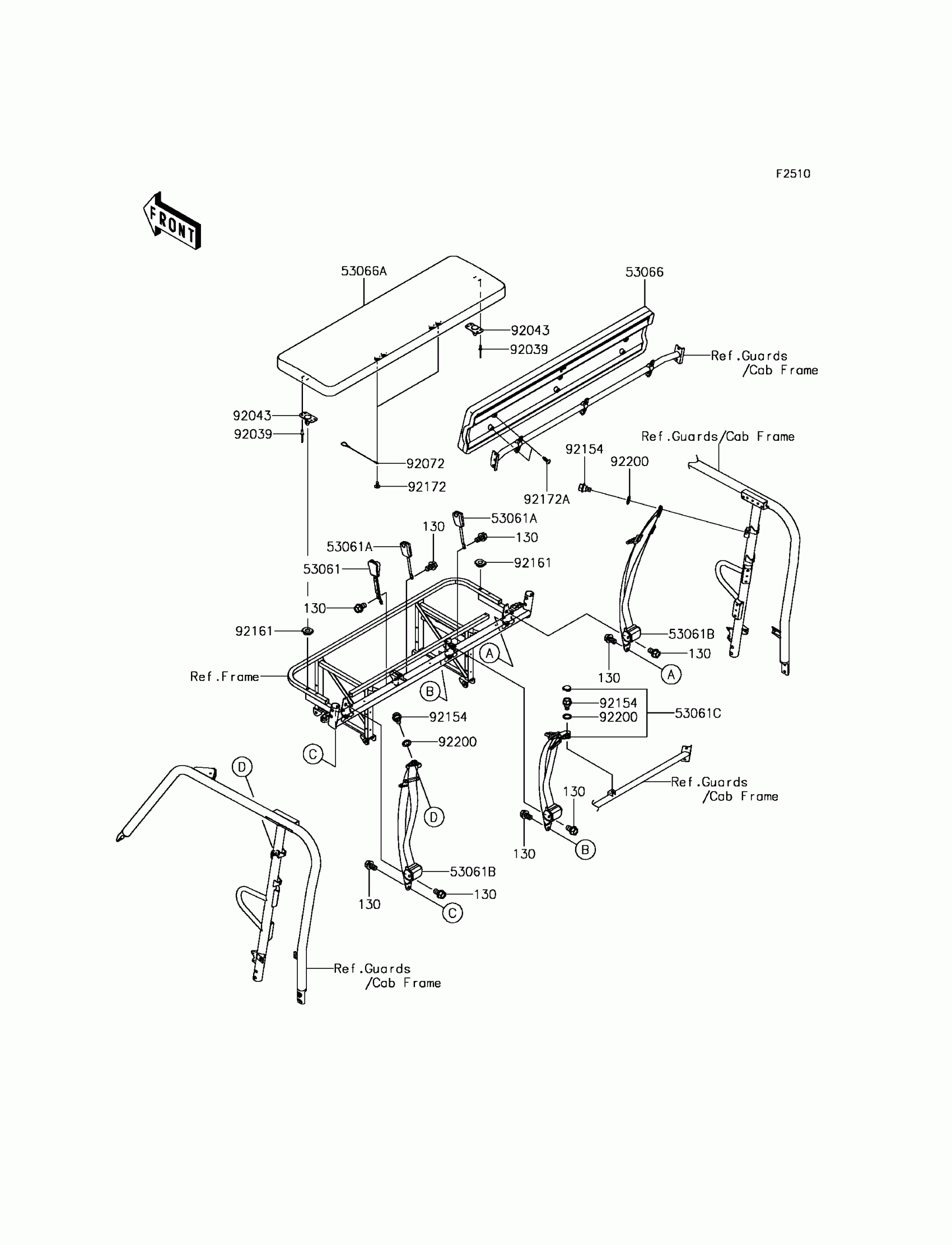

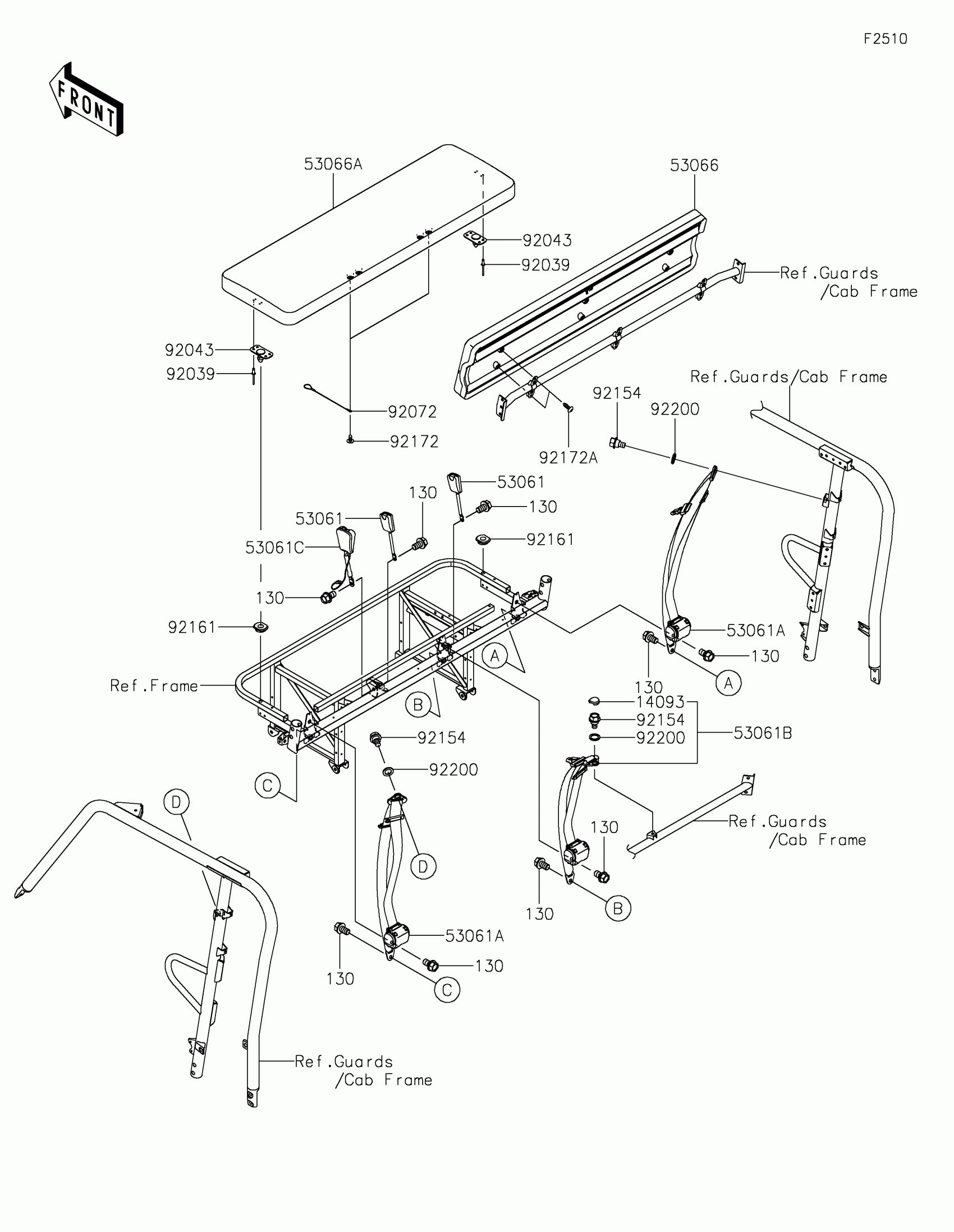

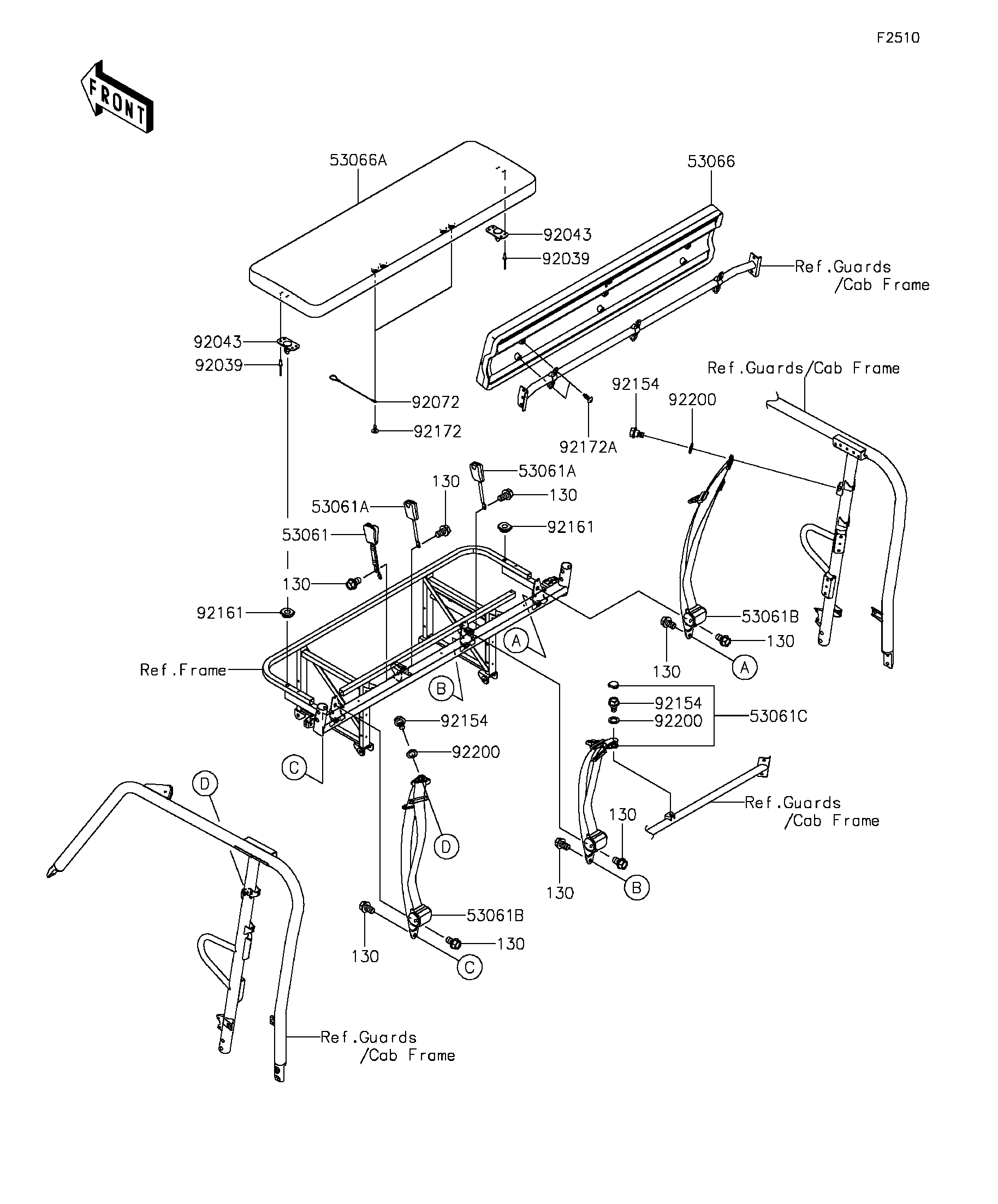

Kawasaki MULE PRO-FX™ Seat Diagram

#

Description

Price

130

BOLT-FLANGED,12X20

130BA1220

Unavailable

53061

BELT-SEAT,BUCKLE,SW.

53061-0038

Unavailable

53061A

BELT-SEAT,BUCKLE

53061-0039

Unavailable

53061B

BELT-SEAT,FR,LH&RH

53061-0045

Unavailable

53061C

BELT-SEAT,MIDDLE

53061-0046

Unavailable

53066

SEAT-ASSY,BACK,BLACK

53066-0426-MA

Unavailable

53066A

SEAT-ASSY,BOTTOM,BLACK

53066-0495-MA

Unavailable

92039

RIVET

92039-0747

Unavailable

92043

PIN

92043-0859

Unavailable

92072

BAND

92072-0769

Unavailable

92154

BOLT,FLANGED,10X18.5

92154-1388

Unavailable

92161

DAMPER,10.5X30X8.2

92161-1784

Unavailable

92172

SCREW,6X16

92172-0284

Unavailable

92172A

SCREW,TAPPING,6X20

92172-0488

Unavailable

92200

WASHER,14X22X2

92200-1745

Unavailable
