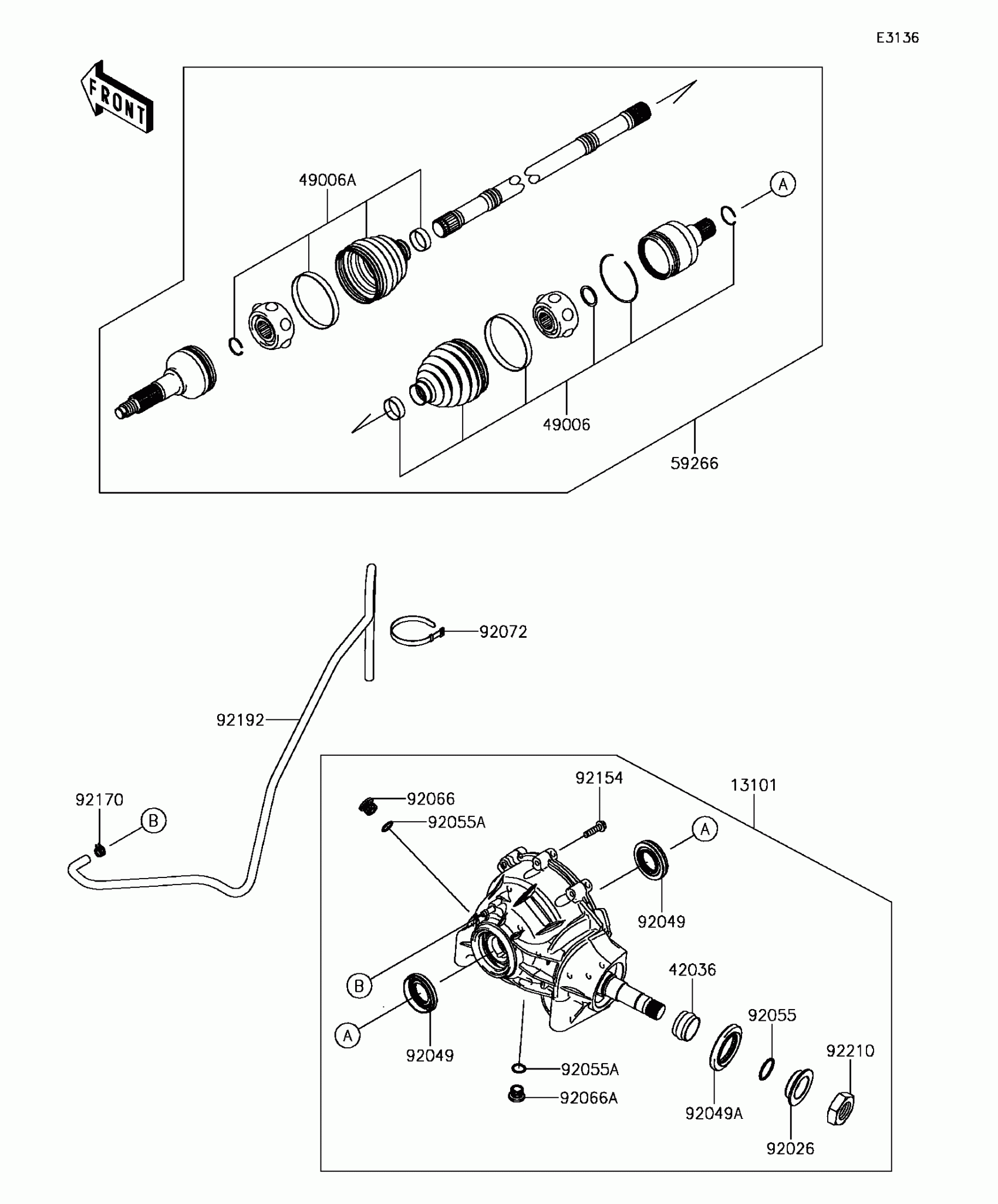

Kawasaki MULE PRO-FX™ RANCH EDITION Drive Shaft-Front Diagram

Description

Price

13101

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0662

Unavailable

42036

SLEEVE

42036-0741

$14.68

49006

BOOT,INSIDE

49006-0578

$94.95

49006A

BOOT,OUTSIDE

49006-0584

$94.95

59266

JOINT-BALL,FR

59266-0710

$708.93

92026

SPACER

92026-0776

$10.26

92049

SEAL-OIL,33X60X7

92049-0760

$16.84

92049A

SEAL-OIL,44X72X7

92049-0766

$17.77

92055

RING-O

92055-0788

$4.30

92055A

RING-O,15.3X2.2

92055-0830

$2.77

92066

PLUG

92066-0777

$12.93

92066A

PLUG

92066-0778

$12.93

92072

BAND,L=186

92072-056

$5.00

92154

BOLT,FLANGED,8X30

92154-1370

$1.49

92170

CLAMP

92170-2082

$1.49

92192

TUBE,BREATHER

92192-1341

$11.68

92210

NUT

92210-0894

$25.21
