Radiator

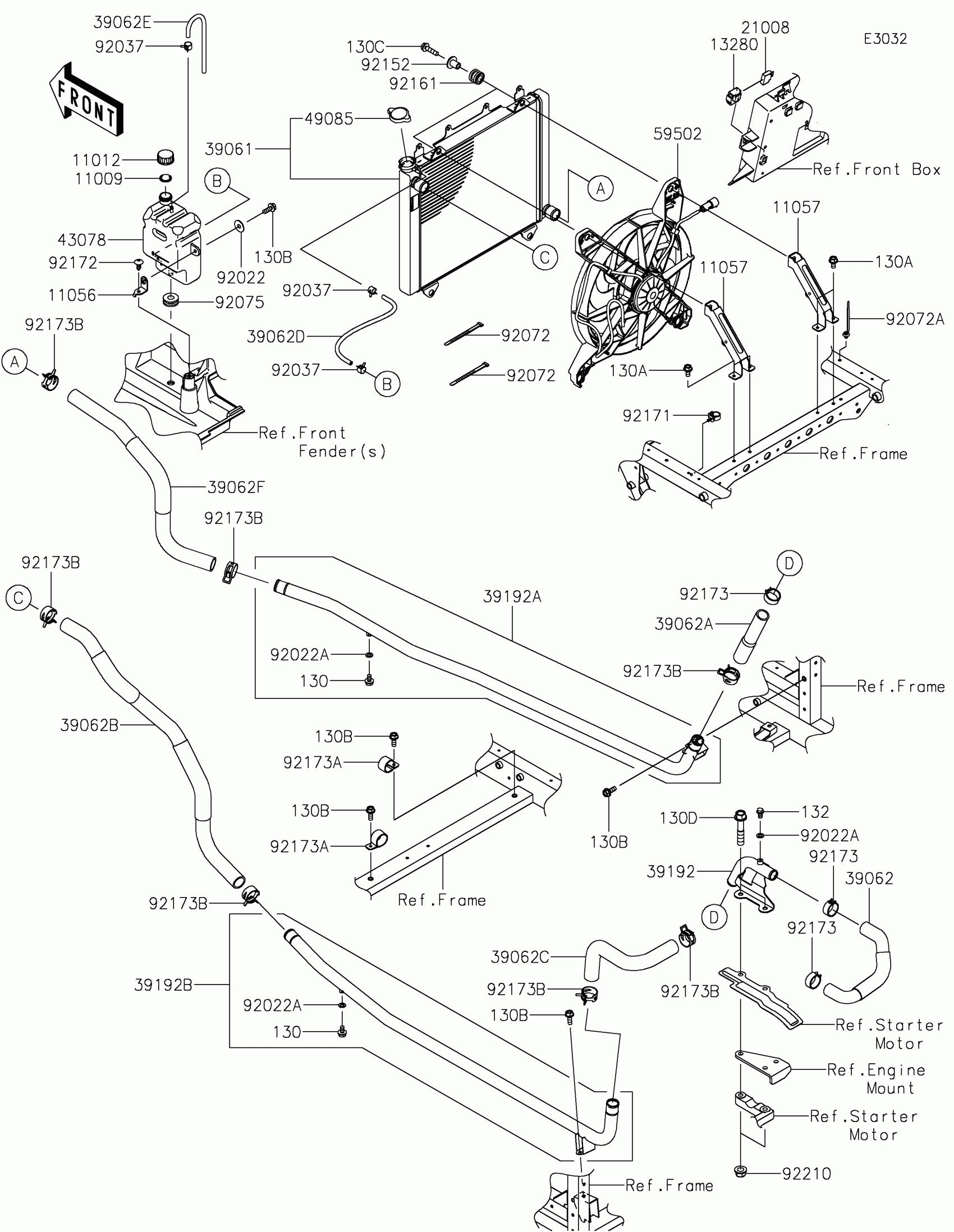

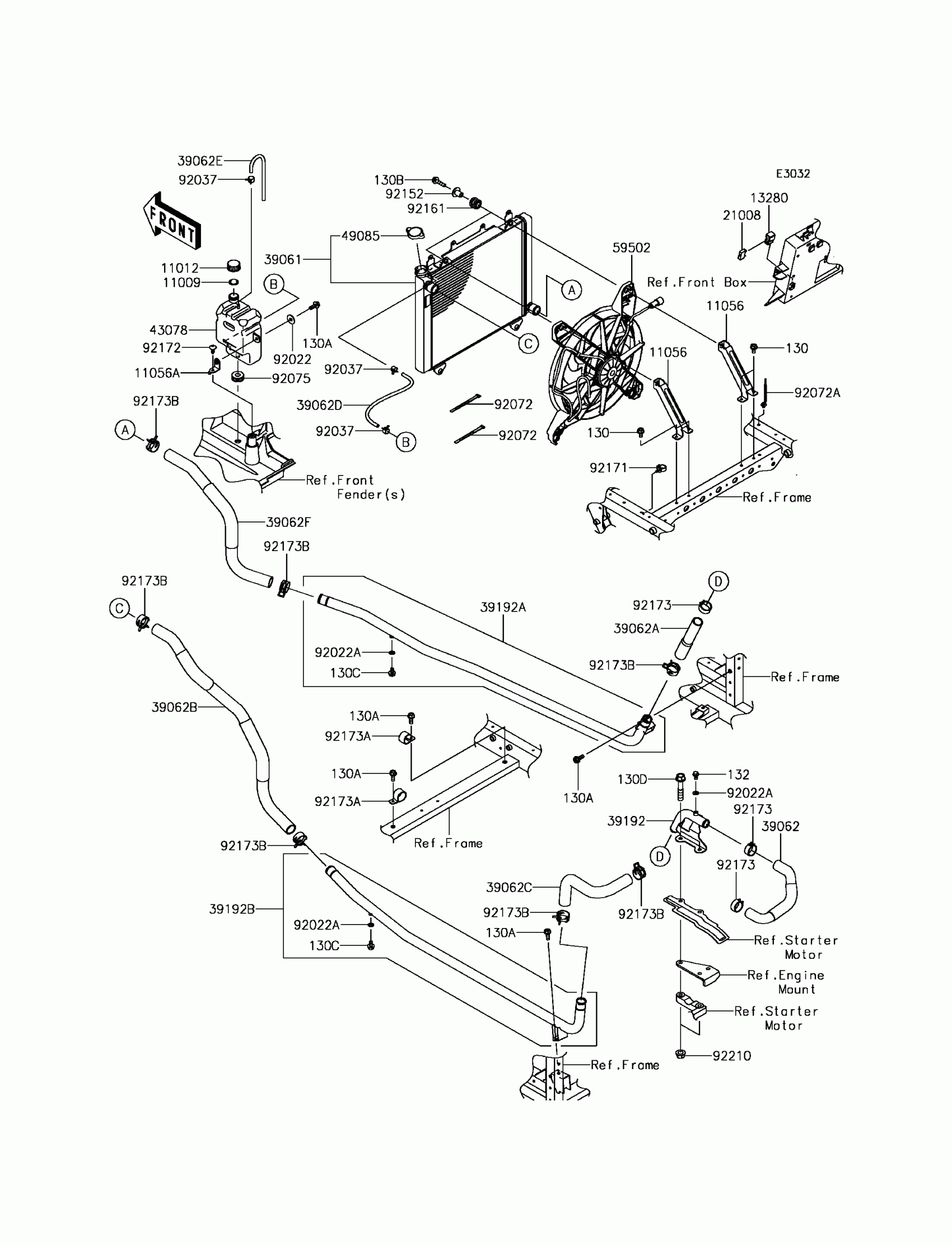

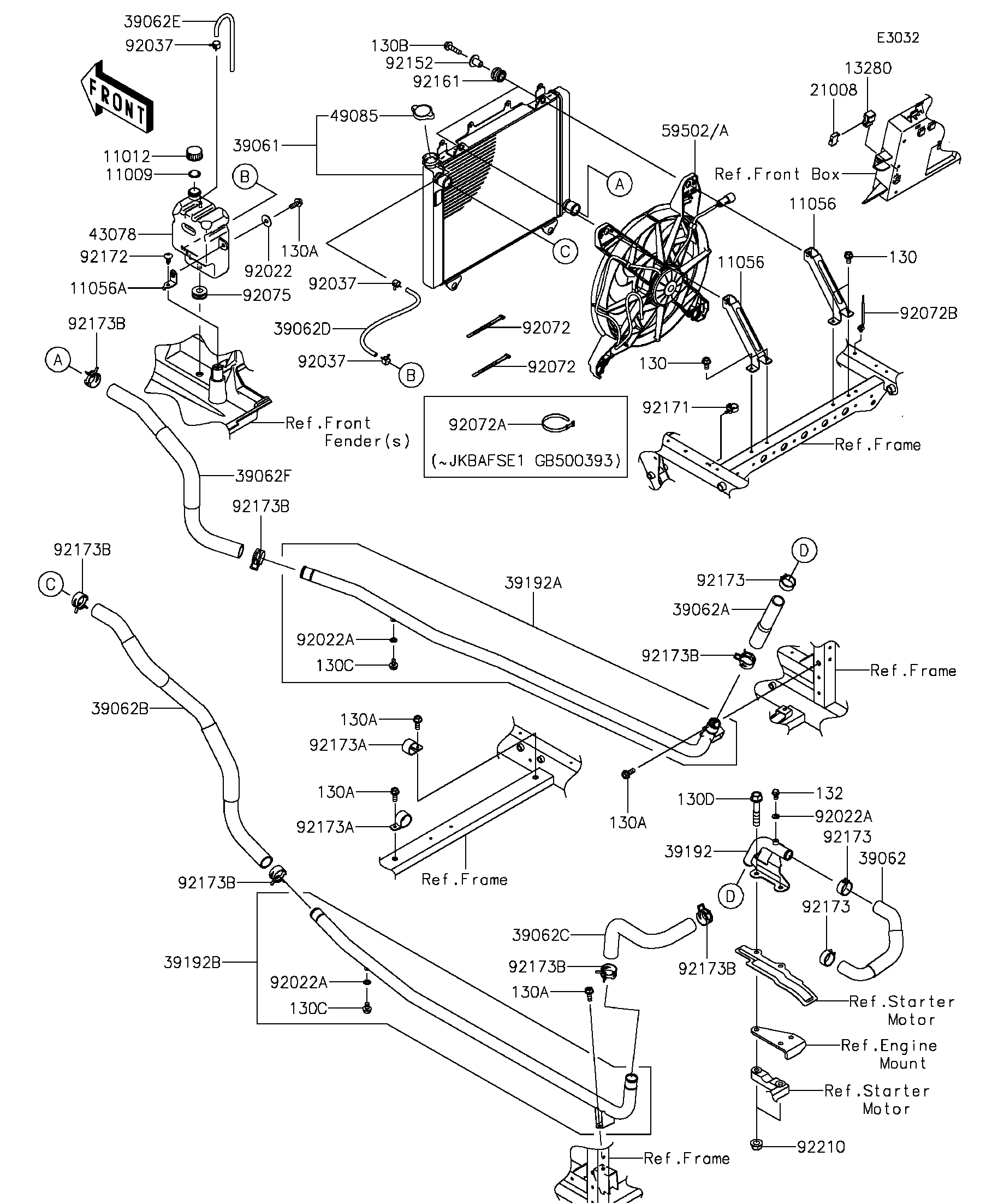

Kawasaki MULE PRO-FX™ Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
Unavailable
11012
CAP
11012-1084
Unavailable
11056
BRACKET,RADIATOR
11056-2833
Unavailable
11056A
BRACKET,RESERVOIR
11056-3856
Unavailable
13280
HOLDER,BREAKER
13280-0082
Unavailable
21008
BREAKER,RAD. FAN,20A
21008-0554
Unavailable
39061
RADIATOR-ASSY
39061-0706
Unavailable
39062
HOSE-COOLING
39062-0647
Unavailable
39062A
HOSE-COOLING,ENGINE IN
39062-0648
Unavailable
39062B
HOSE-COOLING,RADIATOR IN
39062-0650
Unavailable
39062C
HOSE-COOLING,ENGINE OUT
39062-0651
Unavailable
39062D
HOSE-COOLING,RAD.-RESERVOIR
39062-0657
Unavailable
39062E
HOSE-COOLING,OVER FLOW
39062-0696
Unavailable
39062F
HOSE-COOLING,RADIATOR OUT
39062-0697
Unavailable
39192
PIPE-WATER
39192-0573
Unavailable
39192A
PIPE-WATER,RH
39192-0574
Unavailable
39192B
PIPE-WATER,LH
39192-0575
Unavailable
43078
RESERVOIR
43078-0571
Unavailable
49085
CAP-ASSY-PRESSURE
49085-0005
Unavailable
59502
FAN-ASSY
59502-0566
Unavailable
59502A
FAN-ASSY
59502-0609
Unavailable
92022
WASHER,PLAIN,6.5X20X1
92022-165
Unavailable
92022A
WASHER,6.2X11X1
92022-304
Unavailable
92037
CLAMP,TUBE
92037-1461
Unavailable
92072
BAND,L=123
92072-030
Unavailable
92072A
BAND,L=186
92072-056
Unavailable
92072B
BAND,OS170-FT7(BLACK)
92072-1414
Unavailable
92075
DAMPER
92075-1185
Unavailable
92152
COLLAR
92152-1512
Unavailable
92161
DAMPER
92161-1349
Unavailable
92171
CLAMP
92171-0453
Unavailable
92172
SCREW,6X16
92172-0284
Unavailable
92173
CLAMP
92173-0072
Unavailable
92173A
CLAMP
92173-1204
Unavailable
130
BOLT-FLANGED,6X12
130BA0612
Unavailable
130A
BOLT-FLANGED,6X16
130BA0616
Unavailable
130B
BOLT-FLANGED,6X25
130BA0625
Unavailable
130C
BOLT-FLANGED,6X10
130BB0610
Unavailable
130D
BOLT-FLANGED,10X50
130CA1050
Unavailable
132
BOLT-FLANGED-SMALL,6X10
132BA0610
Unavailable
92173B
CLAMP,28.6MM
92173-1205
Unavailable
92210
NUT,LOCK,FLANGED,10MM
92210-0276
Unavailable
