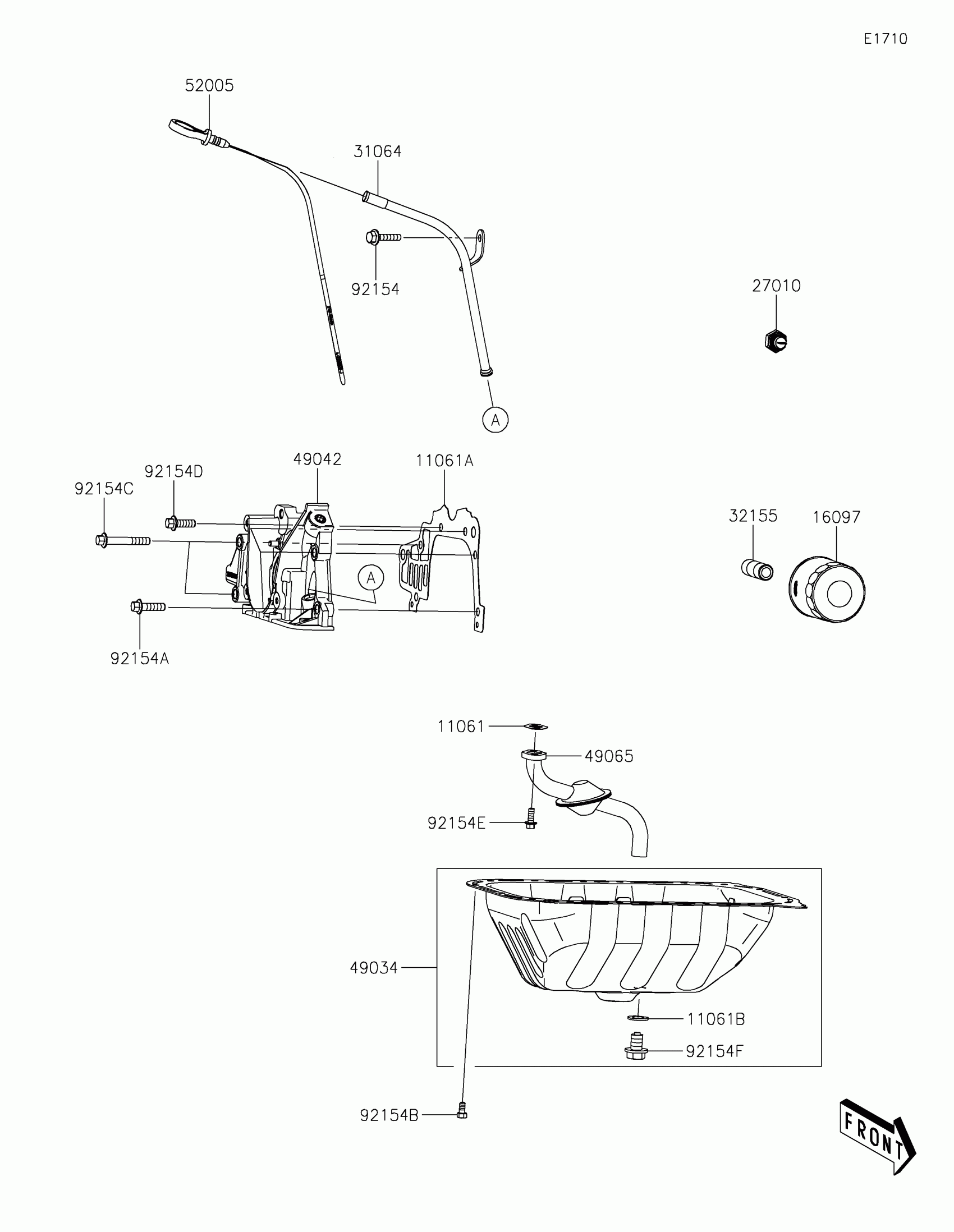

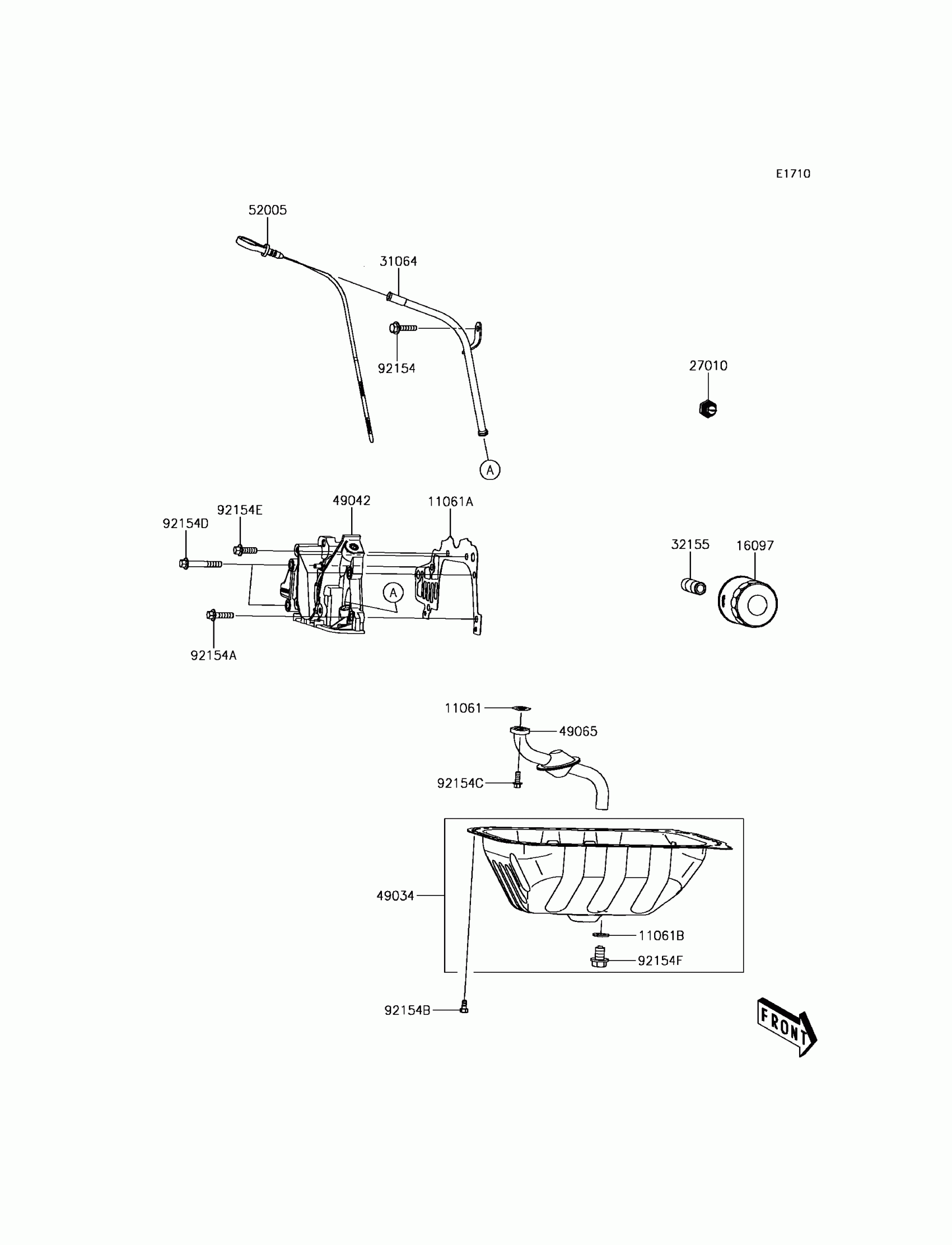

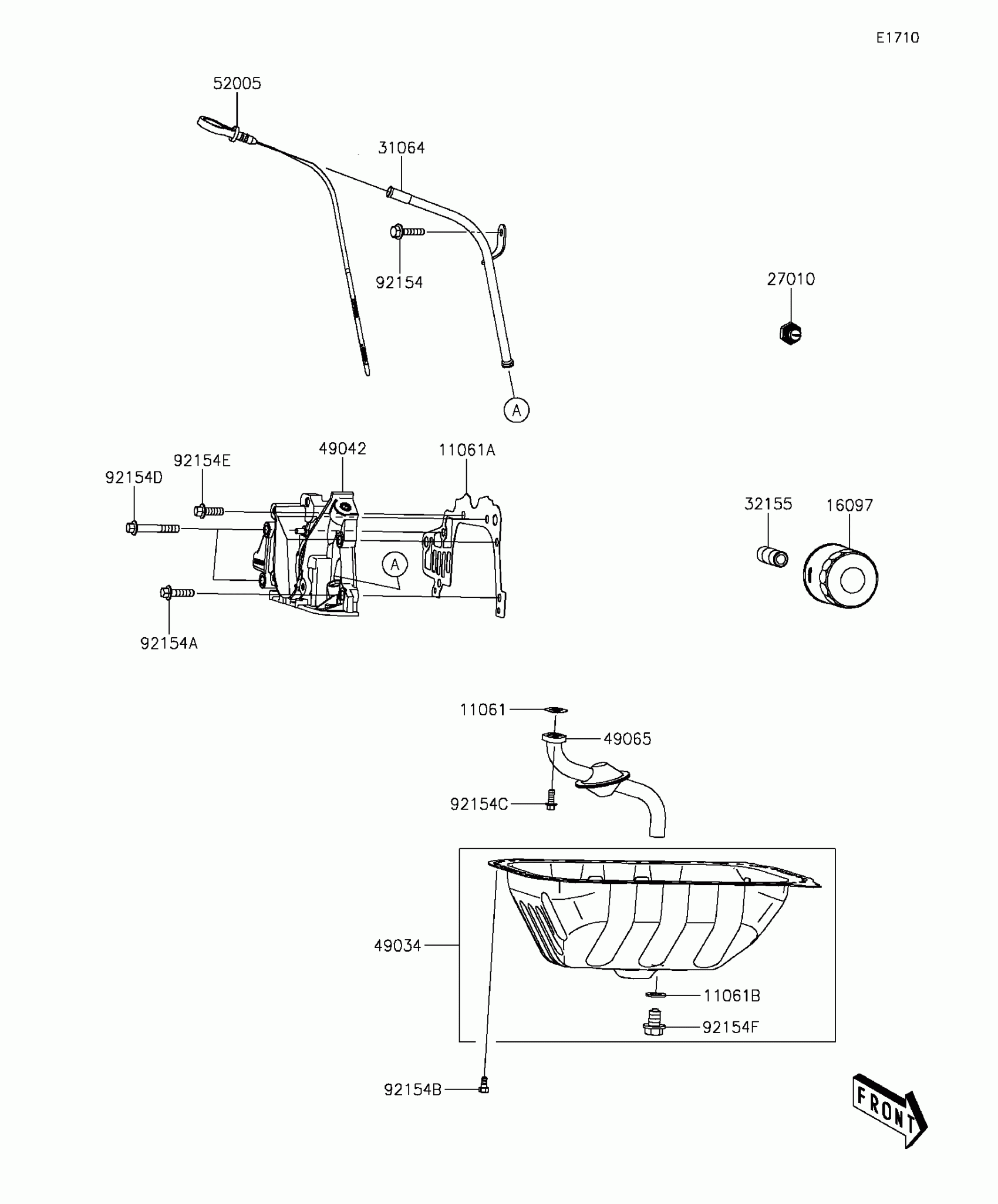

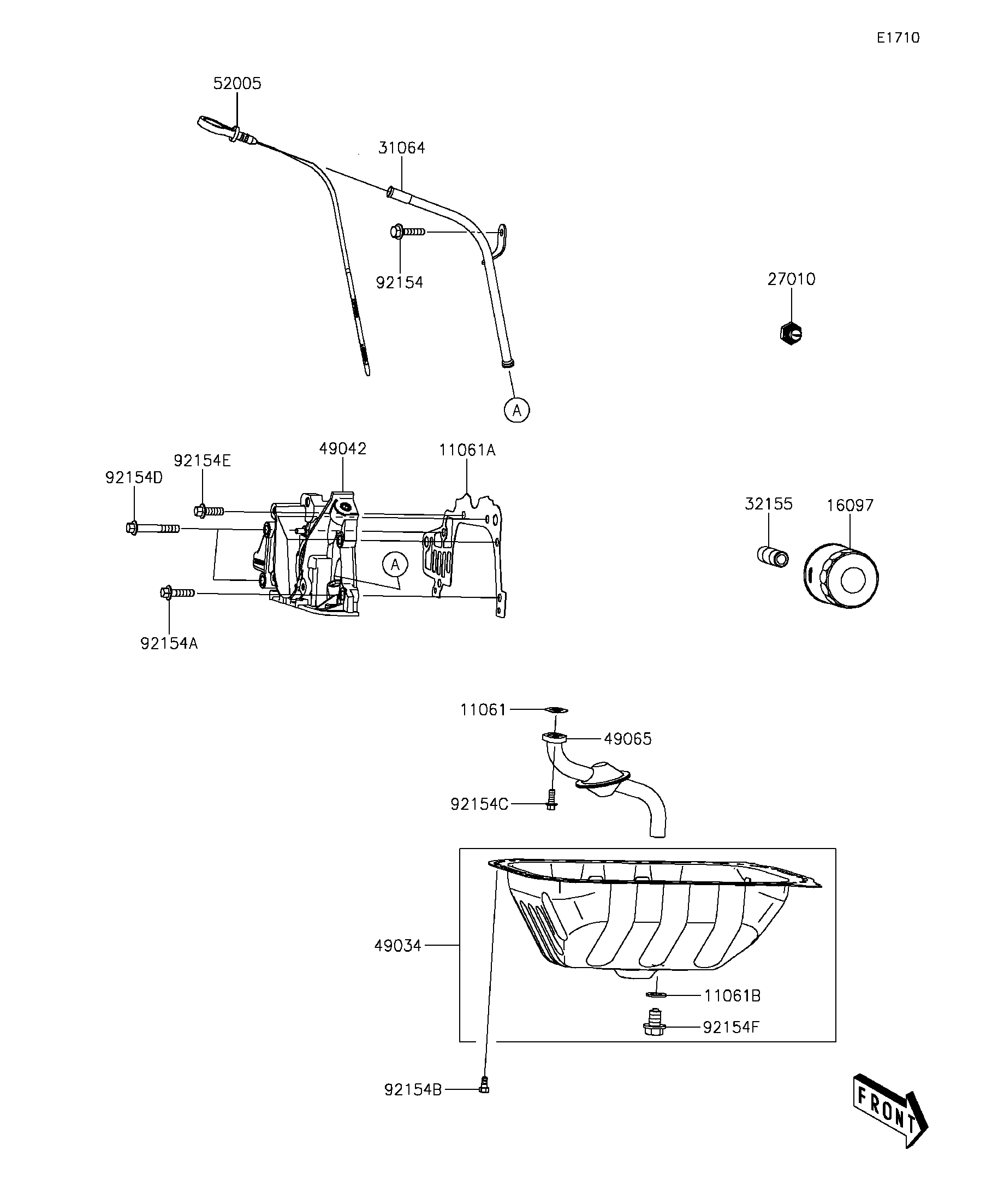

Kawasaki MULE PRO-FX™ Oil Pump/Oil Filter Diagram

#

Description

Price

11061

GASKET,OIL PICKUP

11061-0957

Unavailable

11061A

GASKET,OIL PUMP

11061-0958

Unavailable

11061B

GASKET,DRAIN

11061-0962

Unavailable

16097

FILTER-ASSY-OIL

16097-0010

Unavailable

27010

SWITCH,OIL PRESSURE

27010-0804

Unavailable

31064

PIPE-COMP,LEVEL GAUGE

31064-0633

Unavailable

32155

PIPE,OIL FILTER

32155-1893

Unavailable

49034

PAN-OIL

49034-0558

Unavailable

49042

PUMP-OIL

49042-0001

Unavailable

49065

FILTER-OIL

49065-0029

Unavailable

52005

GAUGE,OIL LEVEL

52005-0728

Unavailable

92154

BOLT,FLANGED

92154-1579

Unavailable

92154A

BOLT,FLANGED,8X30

92154-1592

Unavailable

92154B

BOLT,6X12

92154-1594

Unavailable

92154C

BOLT,FLANGED,6X16

92154-1596

Unavailable

92154D

BOLT,FLANGED,8X55

92154-1601

Unavailable

92154E

BOLT,FLANGED,8X25

92154-1602

Unavailable

92154F

BOLT,DRAIN

92154-1635

Unavailable
