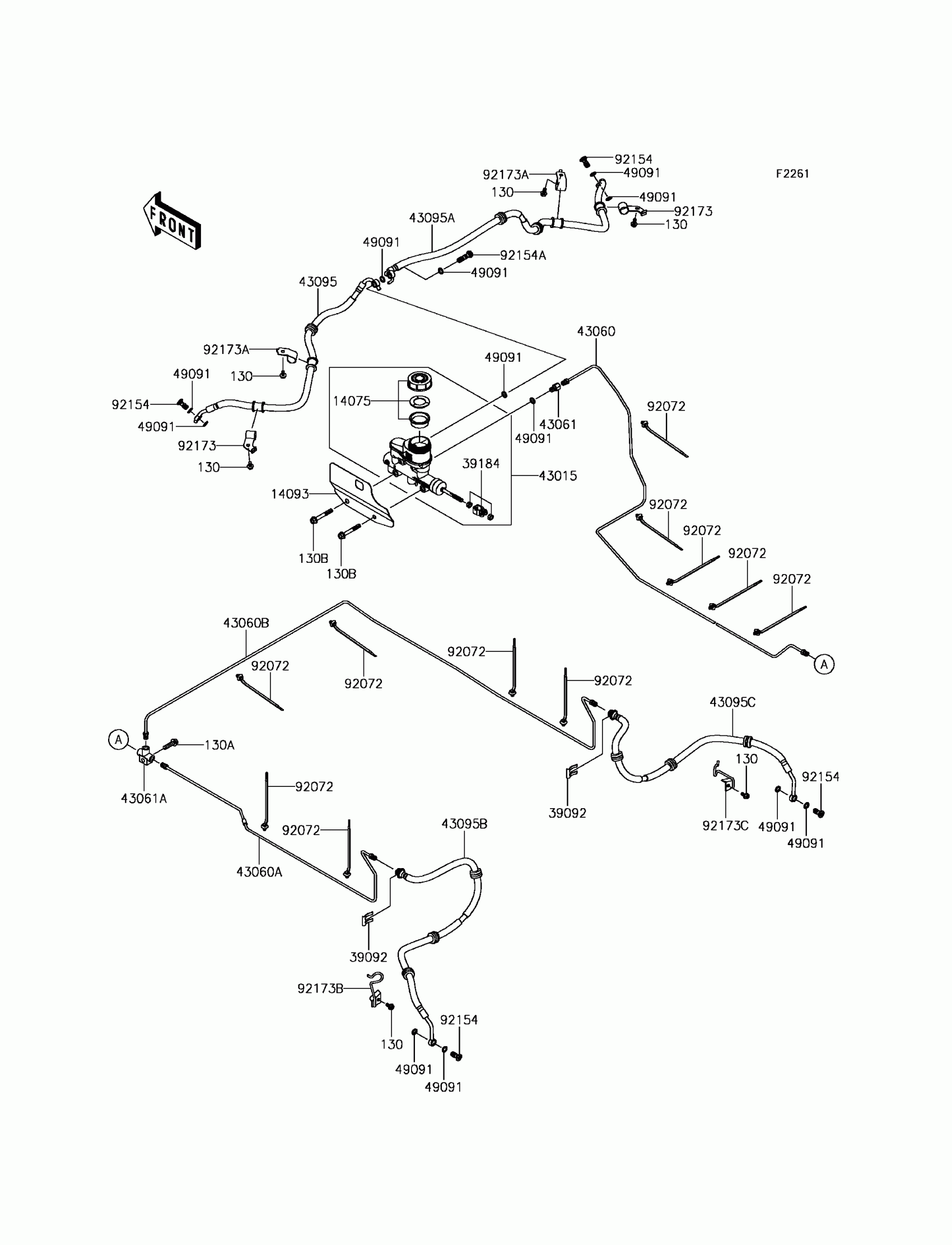

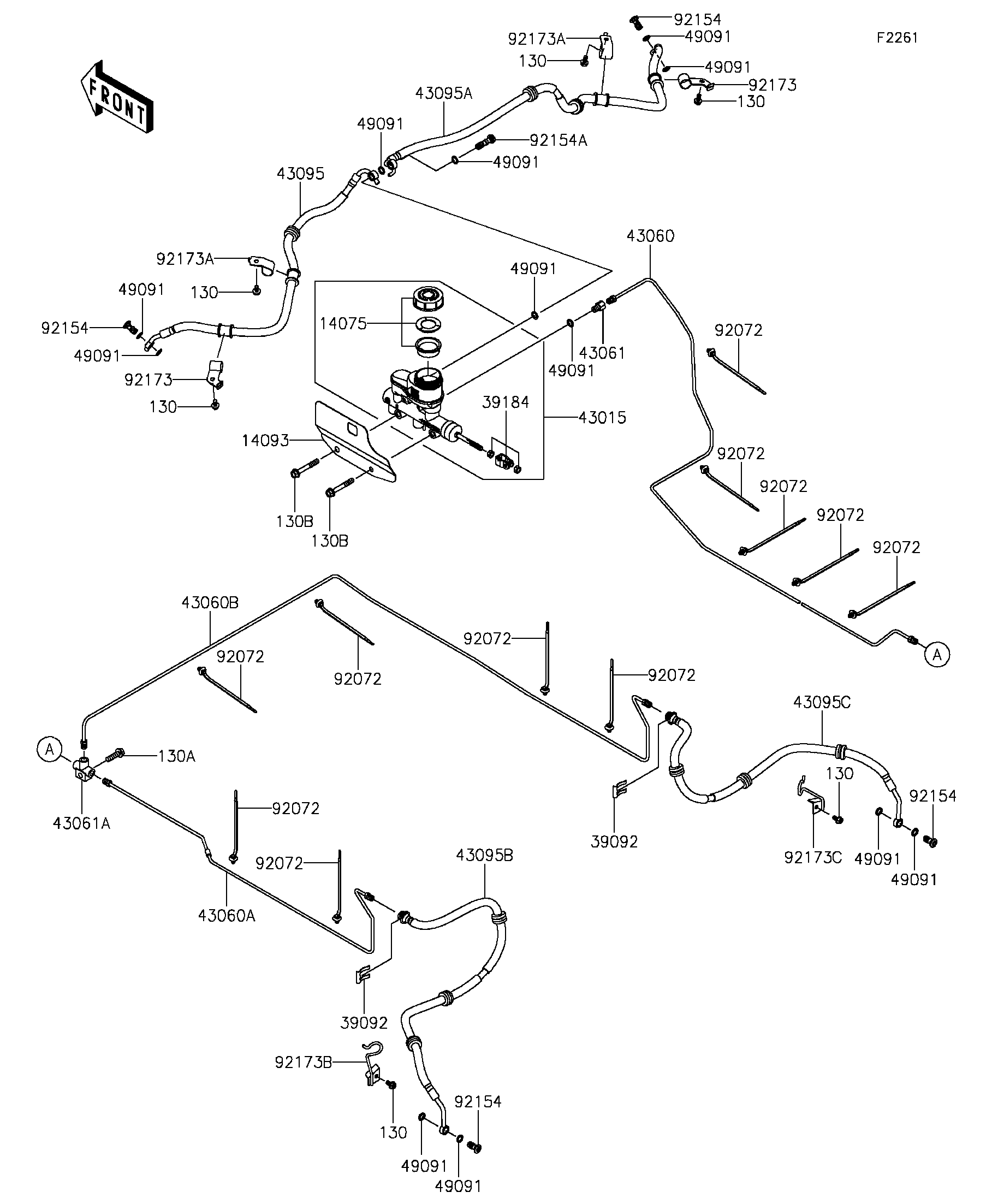

Kawasaki MULE PRO-FX™ Master Cylinder Diagram

#

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

Unavailable

130A

BOLT-FLANGED,8X30

130BA0830

Unavailable

130B

BOLT-FLANGED,8X55

130BA0855

Unavailable

14075

CAP-ASSY

14075-0038

Unavailable

14093

COVER,M/C BODY

14093-0044

Unavailable

39092

PIN-HAIR

39092-1052

Unavailable

39184

BRACKET-ASSY

39184-0031

Unavailable

43015

CYLINDER-ASSY-MASTER

43015-0595

Unavailable

43060

PIPE-BRAKE

43060-0317

Unavailable

43060A

PIPE-BRAKE,LH

43060-0318

Unavailable

43060B

PIPE-BRAKE,RH

43060-0319

Unavailable

43061

JOINT-BRAKE,M/C

43061-0302

Unavailable

43061A

JOINT-BRAKE

43061-1063

Unavailable

43095

HOSE-BRAKE,661MM

43095-0807

Unavailable

43095A

HOSE-BRAKE,1011MM

43095-0808

Unavailable

43095B

HOSE-BRAKE,847MM

43095-0809

Unavailable

43095C

HOSE-BRAKE,767MM

43095-0810

Unavailable

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

Unavailable

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92154

BOLT,HEXALOBULAR,10X21

92154-1328

Unavailable

92154A

BOLT,OIL,10X34.5

92154-1398

Unavailable

92173

CLAMP

92173-1215

Unavailable

92173A

CLAMP

92173-1216

Unavailable

92173B

CLAMP

92173-1217

Unavailable

92173C

CLAMP

92173-1218

Unavailable
