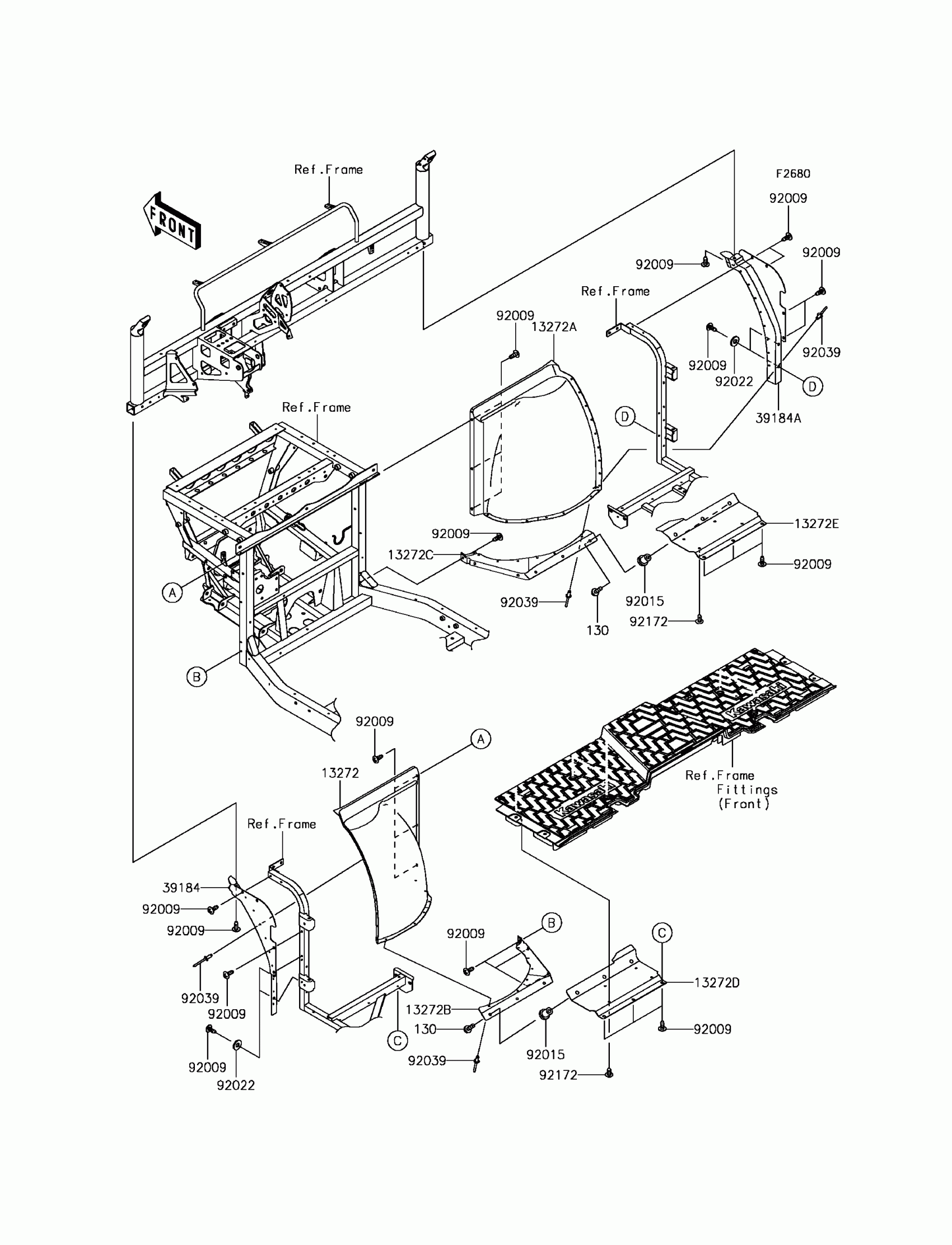

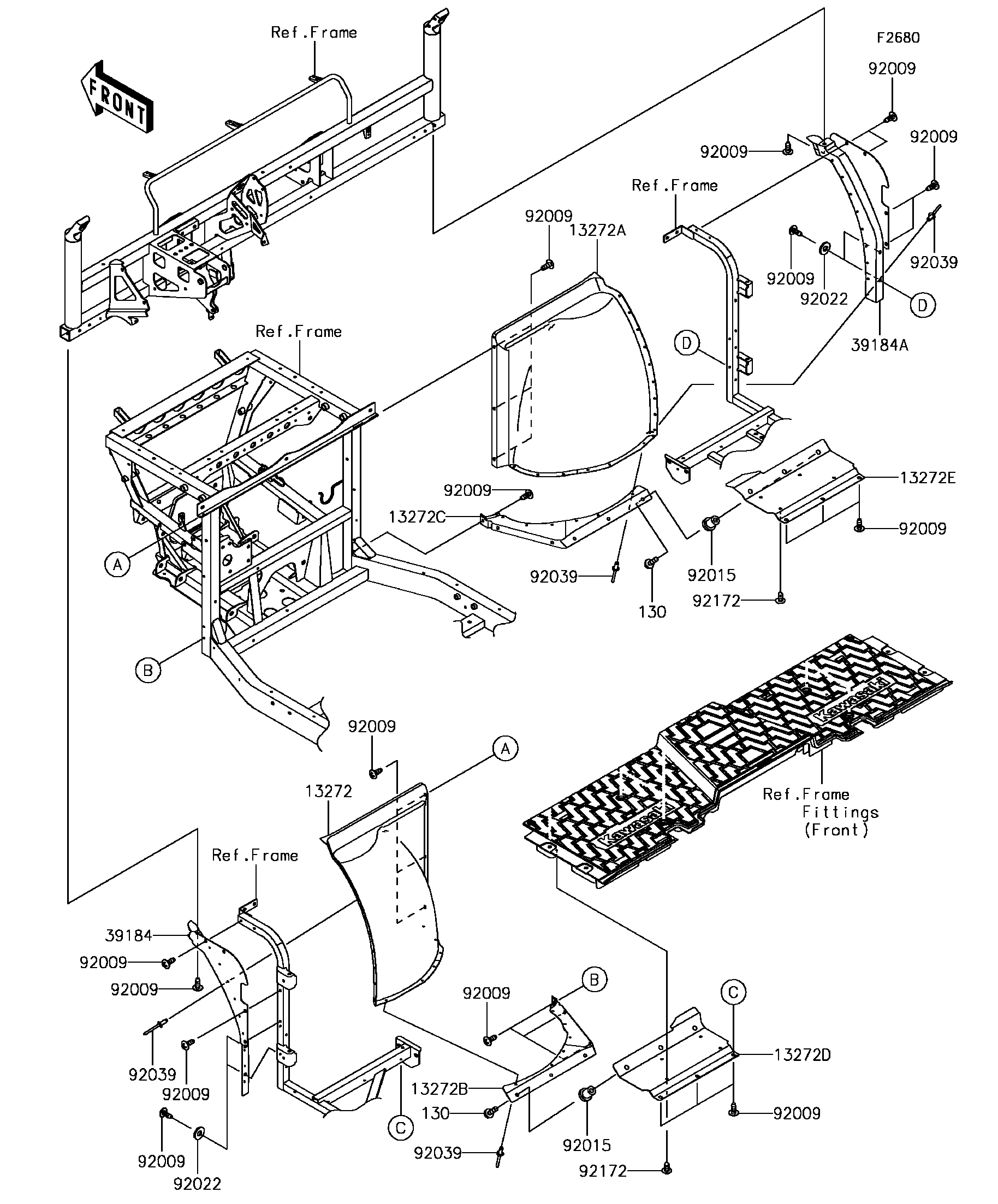

Kawasaki MULE PRO-FX™ Guard(s) Diagram

#

Description

Price

130

BOLT-FLANGED,6X20

130BA0620

Unavailable

13272

PLATE

13272-2323

Unavailable

13272A

PLATE

13272-2324

Unavailable

13272B

PLATE

13272-2327

Unavailable

13272C

PLATE

13272-2328

Unavailable

13272D

PLATE,UNDER GUARD,LH

13272-2330

Unavailable

13272E

PLATE,UNDER GUARD,RH

13272-2331

Unavailable

39184

BRACKET-ASSY,SIDE,LH

39184-0718

Unavailable

39184A

BRACKET-ASSY,SIDE,RH

39184-0719

Unavailable

92009

SCREW,TAPPING,6X16

92009-1166

Unavailable

92015

NUT,RUBBER,6MM

92015-1692

Unavailable

92022

WASHER,8.2X19X2

92022-1533

Unavailable

92039

RIVET

92039-0778

Unavailable

92172

SCREW,6X16

92172-0284

Unavailable
