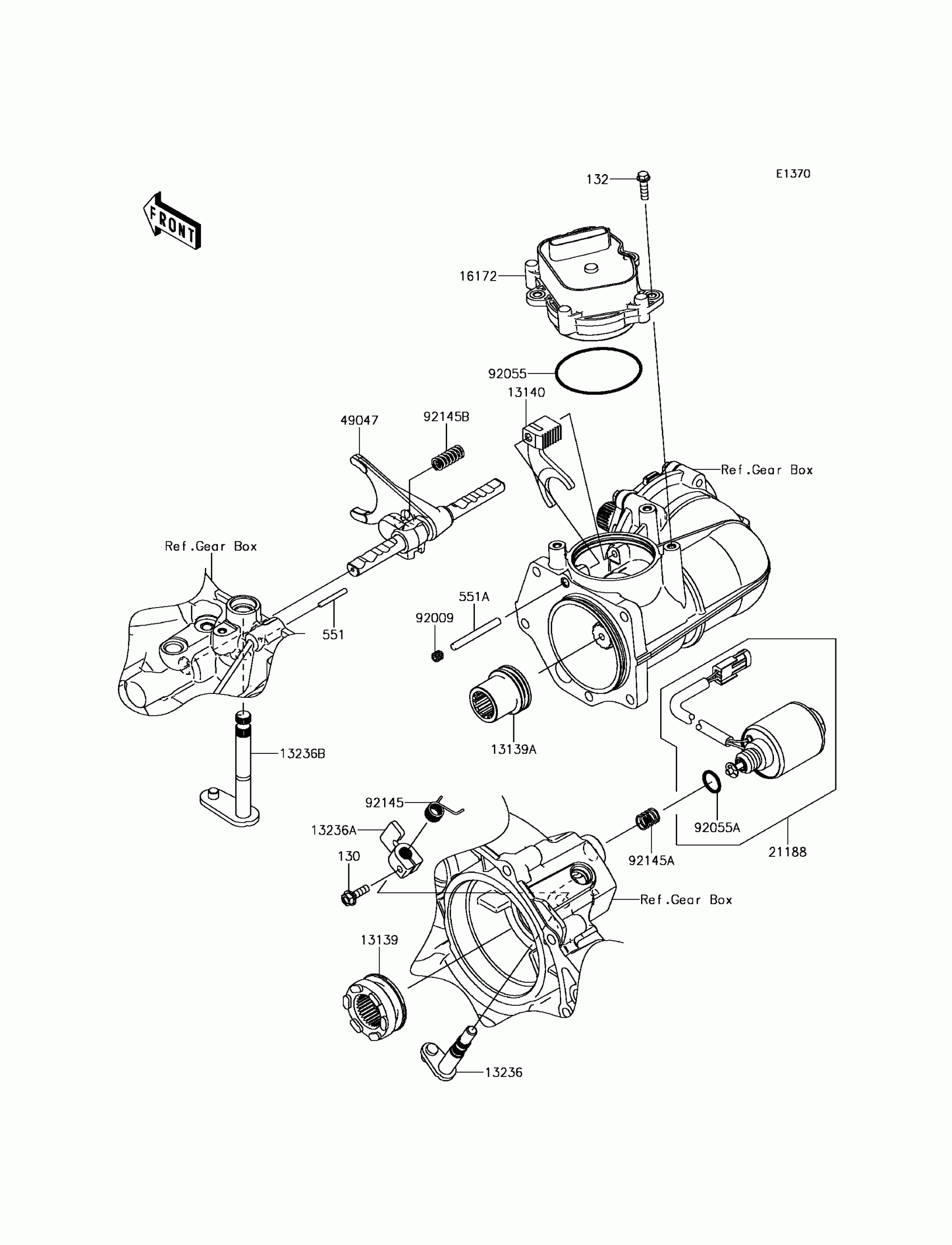

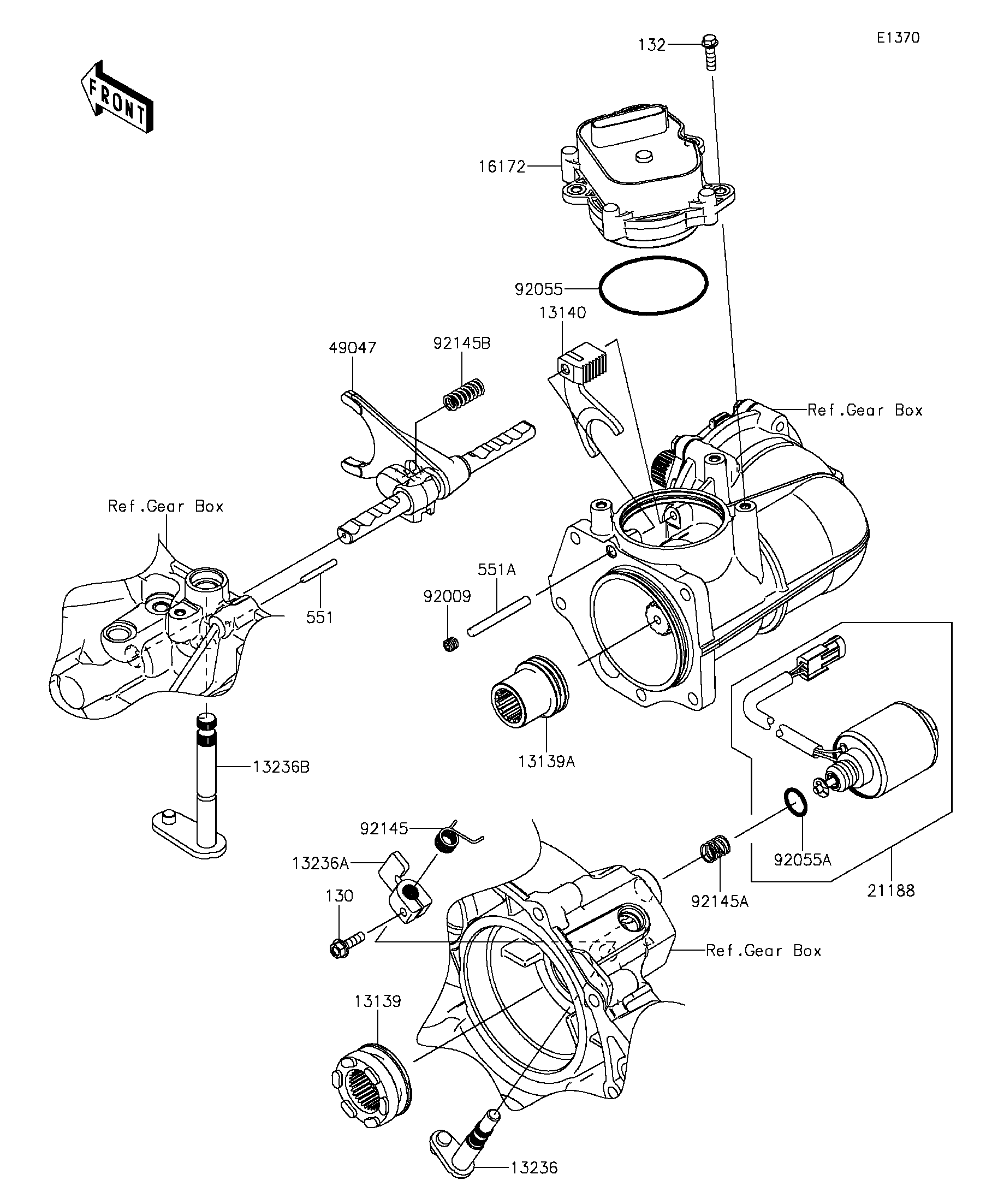

Kawasaki MULE PRO-FX™ Gear Change Mechanism Diagram

#

Description

Price

130

BOLT-FLANGED,6X20

130BA0620

Unavailable

13139

SHIFTER

13139-0019

Unavailable

13139A

SHIFTER

13139-0021

Unavailable

13140

FORK-SHIFT

13140-0639

Unavailable

132

BOLT-FLANGED-SMALL,6X20

132BA0620

Unavailable

13236

LEVER-COMP,DIFF LOCK

13236-0744

Unavailable

13236A

LEVER-COMP,DIFF LOCK

13236-0745

Unavailable

13236B

LEVER-COMP,CHANGE SHIFT

13236-0746

Unavailable

16172

ACTUATOR

16172-0030

Unavailable

21188

SOLENOID

21188-0010

Unavailable

49047

ROD-SHIFT

49047-0044

Unavailable

551

PIN-DOWEL

551A0432

Unavailable

551A

PIN-DOWEL,6X56

551A0656

Unavailable

92009

SCREW,SOCKET,8X8

92009-1977

Unavailable

92055

RING-O,1.9X71.8

92055-0781

Unavailable

92055A

RING-O

92055-0829

Unavailable

92145

SPRING

92145-1572

Unavailable

92145A

SPRING

92145-1573

Unavailable

92145B

SPRING

92145-1574

Unavailable
