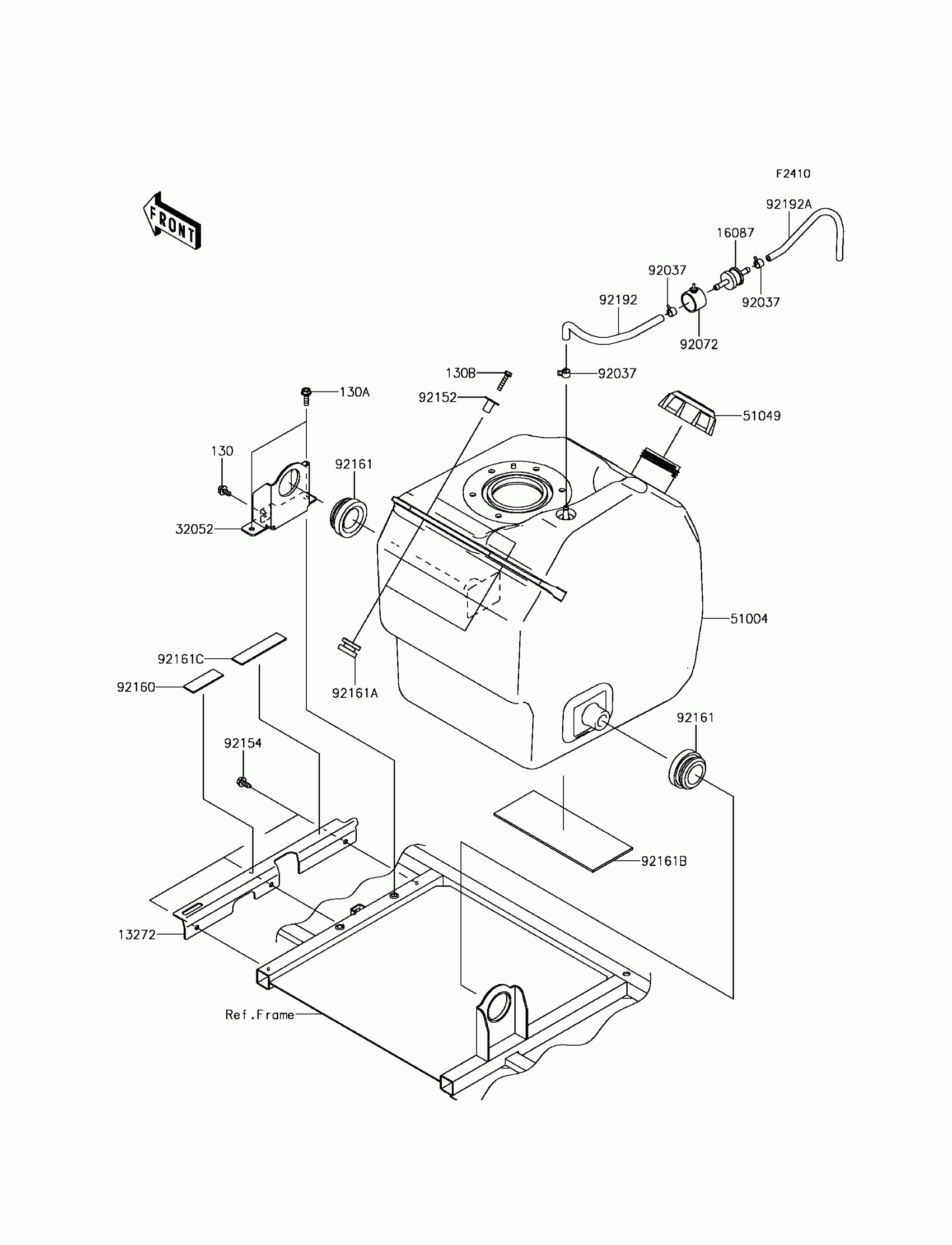

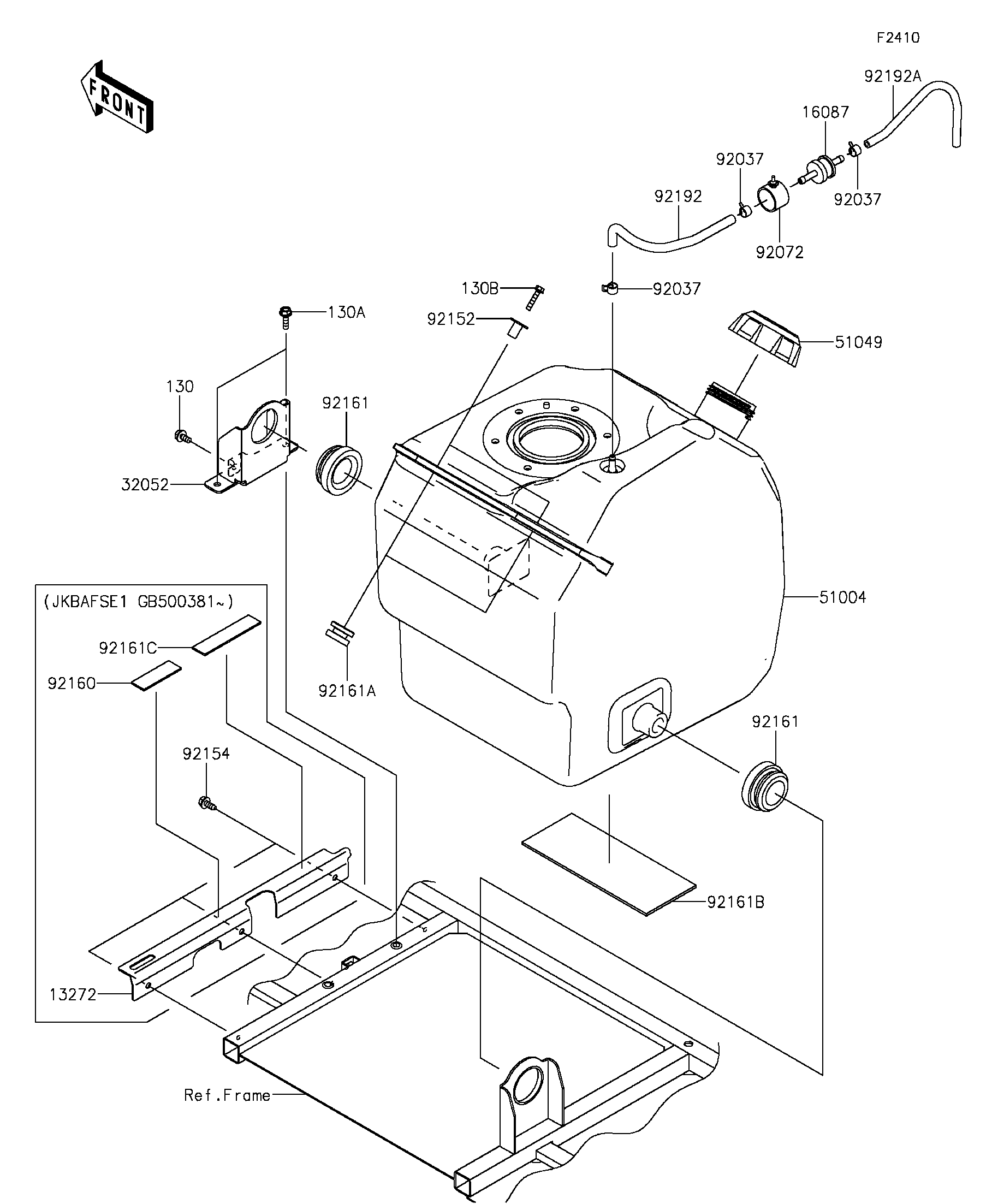

Kawasaki MULE PRO-FX™ Fuel Tank Diagram

#

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

Unavailable

130A

BOLT-FLANGED,6X20

130BA0620

Unavailable

130B

BOLT-FLANGED,6X30

130BA0630

Unavailable

13272

PLATE

13272-2206

Unavailable

16087

VALVE-CHECK

16087-0703

Unavailable

32052

BRACKET-TANK

32052-0751

Unavailable

51004

TANK-FUEL

51004-0004

Unavailable

51049

CAP-TANK,FUEL

51049-0718

Unavailable

92037

CLAMP,TUBE

92037-1461

Unavailable

92072

BAND

92072-1438

Unavailable

92152

COLLAR,6.8X10X18.1

92152-1867

Unavailable

92154

BOLT,6X15.6

92154-1250

Unavailable

92160

DAMPER

92160-1075

Unavailable

92161

DAMPER,30X56X25

92161-1613

Unavailable

92161A

DAMPER,10X28X17

92161-1614

Unavailable

92161B

DAMPER,80X200X3.175

92161-1645

Unavailable

92161C

DAMPER

92161-1876

Unavailable

92192

TUBE,BREATHER

92192-0773

Unavailable

92192A

TUBE,BREATHER,5X9X220

92192-1199

Unavailable
