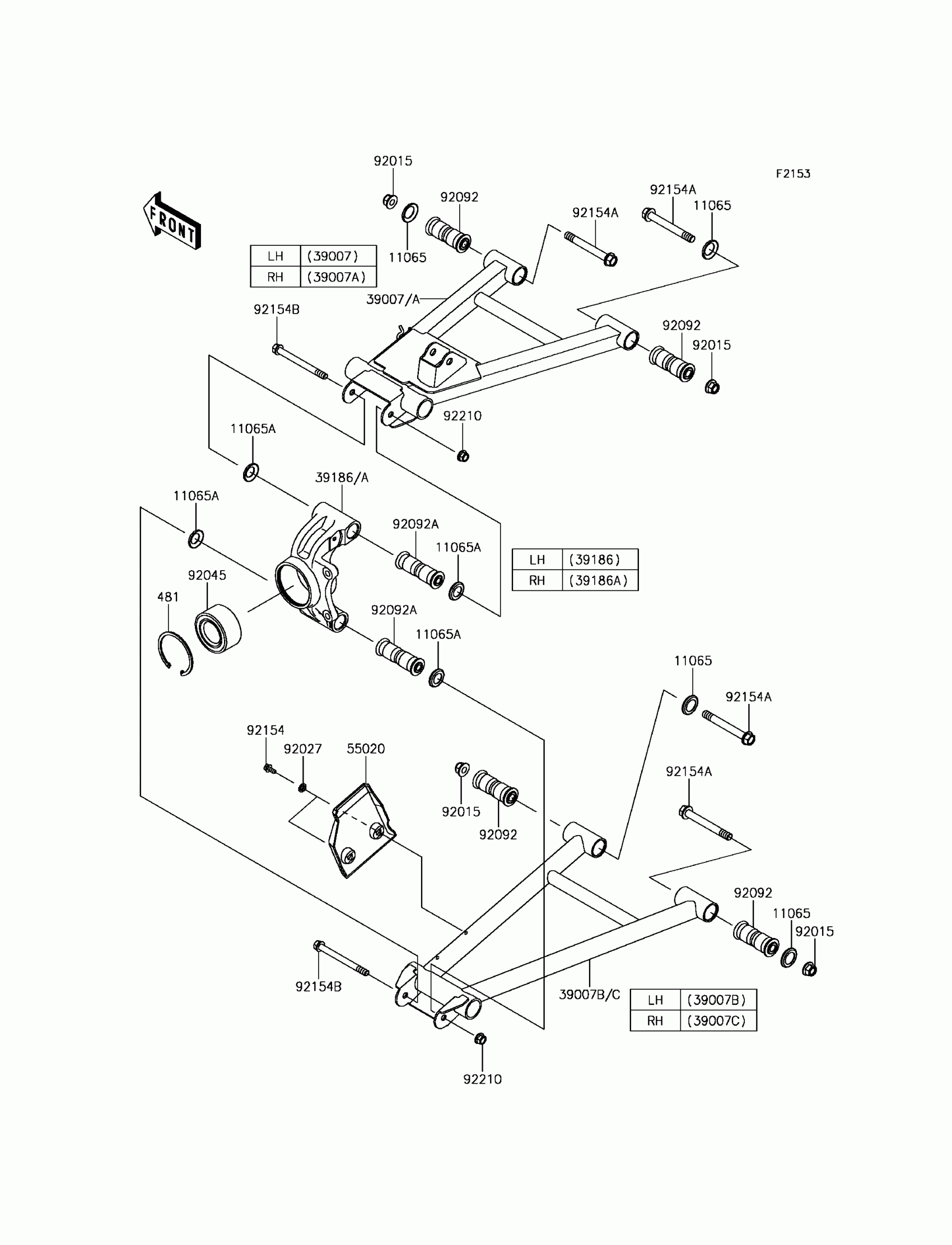

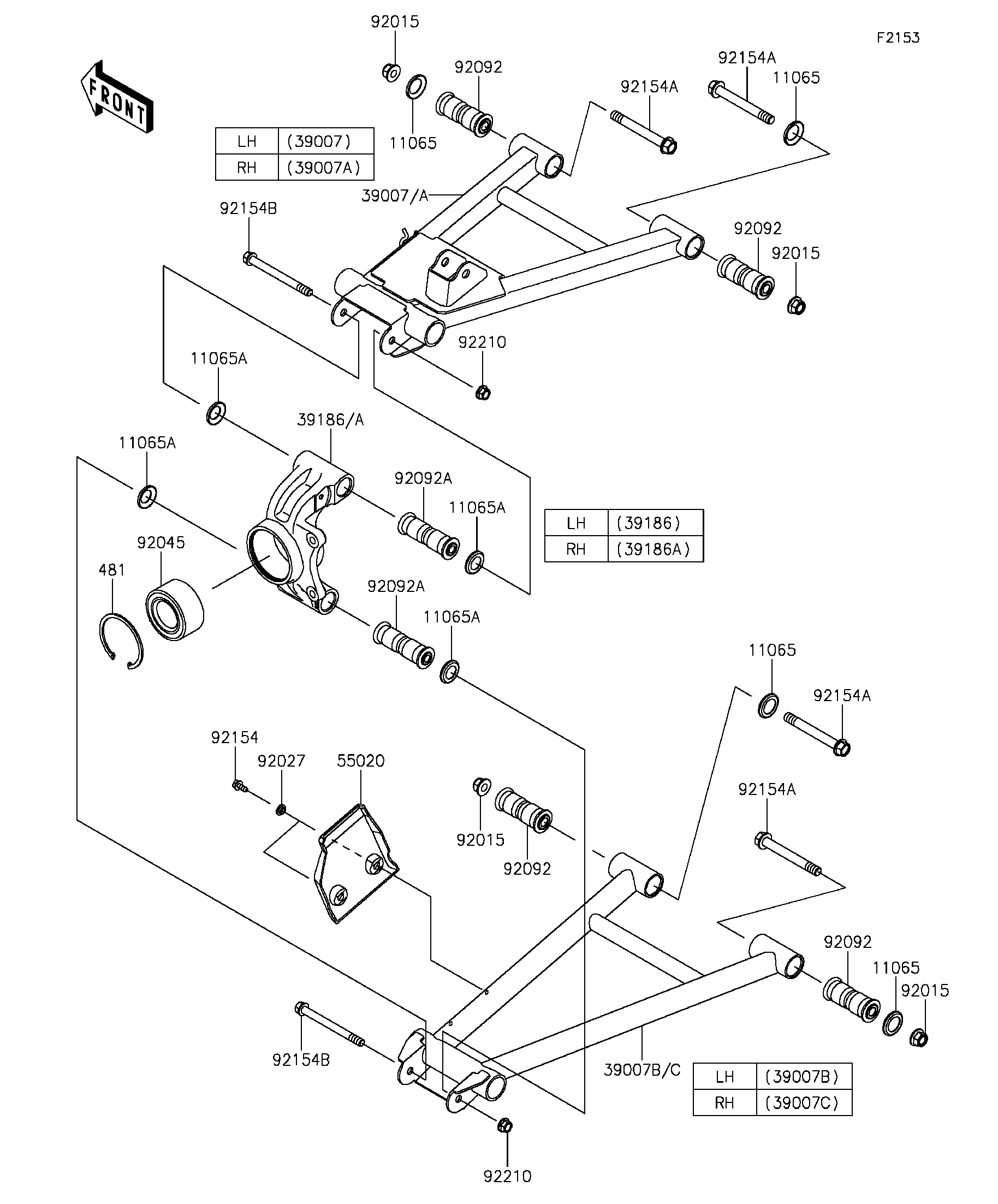

Kawasaki MULE PRO-FX™ EPS Rear Suspension Diagram

#

Description

Price

11065

CAP,ARM

11065-0838

Unavailable

11065A

CAP

11065-0849

Unavailable

39007

ARM-SUSP,RR,UPP,LH

39007-0379

Unavailable

39007A

ARM-SUSP,RR,UPP,RH

39007-0380

Unavailable

39007B

ARM-SUSP,RR,LWR,LH

39007-0381

Unavailable

39007C

ARM-SUSP,RR,LWR,RH

39007-0382

Unavailable

39186

KNUCKLE,RR,LH

39186-0317

Unavailable

39186A

KNUCKLE,RR,RH

39186-0318

Unavailable

481

CIRCLIP-TYPE-C

481J7500

Unavailable

55020

GUARD,RR CVJ

55020-0931

Unavailable

92015

NUT,LOCK,FLANGED,12MM

92015-1433

Unavailable

92027

COLLAR,L=4.6

92027-1168

Unavailable

92045

BEARING-BALL,40X74X36

92045-0763

Unavailable

92092

BUSHING-RUBBER,12X20X78

92092-0028

Unavailable

92092A

BUSHING-RUBBER,10.1X17X88

92092-0029

Unavailable

92154

BOLT,6X15.6

92154-1250

Unavailable

92154A

BOLT,FLANGED,12X100

92154-1318

Unavailable

92154B

BOLT,FLANGED,10X110

92154-1353

Unavailable

92210

NUT,LOCK,FLANGED,10MM

92210-0276

Unavailable
